HOME>PRODUCTS>VERTICAL MAST LIFT>ML08EJ(ML270EJ)

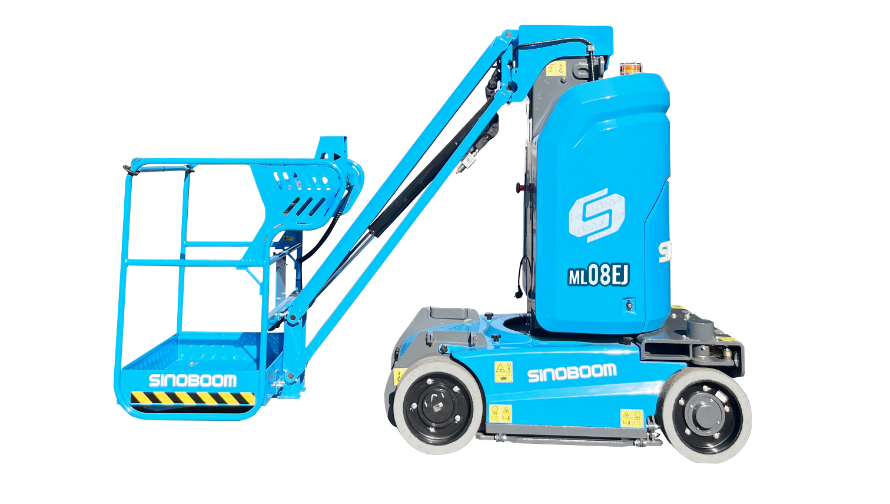

ML08EJ(ML270EJ)

VERTICAL MAST LIFTS
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Product Highlights

  • Easily passes through most standard doors

    Easily passes through most standard doors, zero tail sweep and zero tailswing

  • Unique disassembly system with integrated boom

    ■ Unique disassembly system with integrated boom

  • Unique movable pothole protection system

    ■ Unique movable pothole protection system
Dimensions

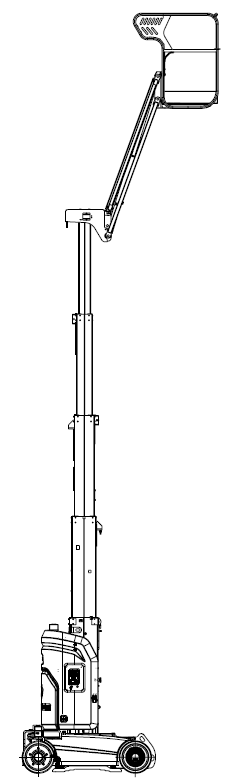

  • Max Platform Height

    8.3m (27'3")

  • Max Working Height

    10.3m (33'9.5")

  • Max Horizontal Reach

    3.3m (10'10")

  • Turntable Rotation

    345°

  • Turntable Tailswing

  • Vertical jib rotation

    +70°/-50°

  • [A] Height-Stowed

    1.99m (6'6")

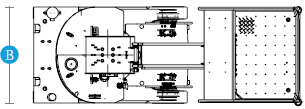

  • [B] Width-Stowed

    0.99m (3'3")

  • [C] Wheelbase

    1.2m (3'11")

  • [D] Length-Stowed

    2.97m (9'9")

  • Ground Clearance
    (Pothole Guard Stowed)

    0.06m (2.36")

  • Ground Clearance
    (Pothole Guard Deployed)

    0.02m (0.79")

  • Platform Dimensions(L×W×H)

    0.99×0.7×1.1m (3'3''×2'3.6''×3'7.3'')
Performance

  • Platform Allowable Occupants
    (Indoor/ Outdoor)

    2 persons/1 person

  • Platform Capacity

    200kg (440lbs)

  • Drive Speed-Stowed

    4km/h (2.5mph)

  • Drive Speed-Raised

    0.6km/h (0.37mph)

  • Elevation Time

    32~36s (unloaded)

  • Descent Time

    32~37s (unloaded)

  • Gradeability

    25%

  • Turning Radius
    (Inside/Outside)

    0/1.55m (0/5'1")

  • Tilt Rating
    (Front to Back/Side to Side)

    3°/3°

  • Tyre Spec/Type

    406×127mm (16×5") solid
Power

  • Batteries

    24 V, 240 Ah

  • Power Source

    24V DC / 4 kW

  • Drive Mode

    2 WD×2 WS

  • Charger Input

    100～240 V AC

  • Charger Output

    30A

  • Brake

    2 rear wheel

  • Hydraulic System Capacity

    13L (2.9 UK gal / 3.4 US gal)


  • Weight

    2,678kg (5,904lbs)

  • Standards Compliance

    CE/AS/EAC/CSA/ANSI
Download Brochures
Standard features
  • 2WD×2WS
  • Maintenance-free battery
  • Fault diagnosis system
  • Non-marking tires
  • Proportional control
  • Emergency lowering system
  • Emergency stop
  • Electrophoretic painting
  • Tilt protection system
  • Flashing beacon
  • Forklift pockets and lifting points
  • Overload sensing system
  • Zero inside turning radius
  • Automatic pothole protection
  • Manual storage box
  • Driveable at full height
  • Bumper rails
  • Auto braking system
  • Horn & buzzer
Optional features
  • RCBO
  • AC power to platform
  • Platform work light
  • Footswitch
  • Overhead anti-collision device
  • Telematics-ready connector
  • Secondary guarding device
