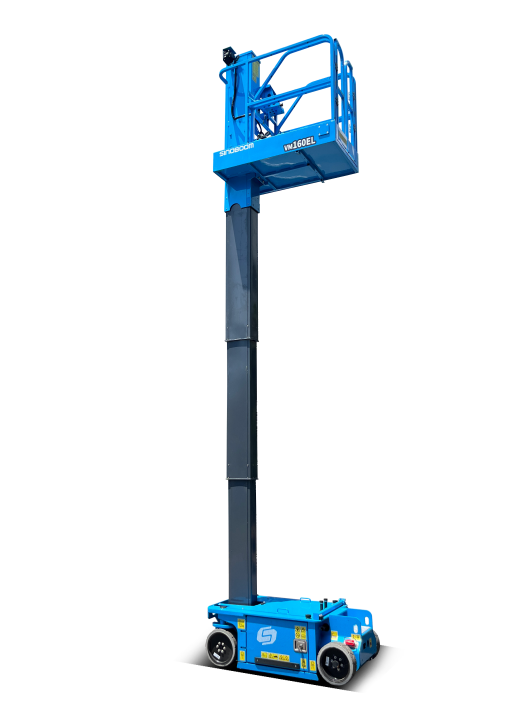

VM05EL(VM160EL)
VERTICAL MAST LIFTS
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS
Dimensions
-
Max Working Height
6.9 m(22'7.7")/ 5.7m(18'8.4") (Indoor/Outdoor) -

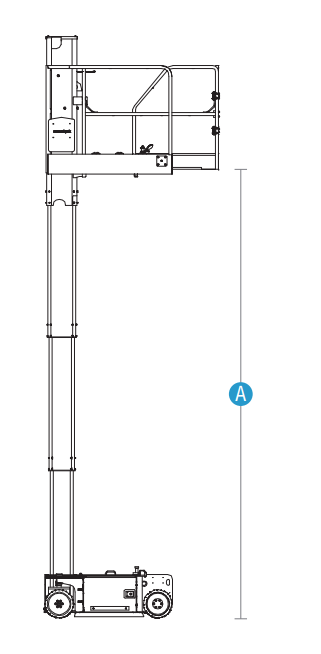

A Max Platform Height
4.9 m(16'1")/3.7m(12'1.7") (Indoor/Outdoor) -
B Max Horizontal Extension
0.5 m (1'7.7") -
C Length-Stowed
1.38m (4'6.3") -

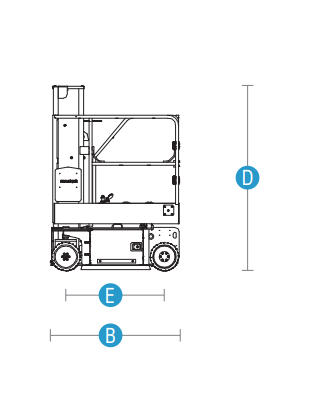

D Height-Stowed
1.99 m (6'6.3") -
E Width-Stowed
0.78 m (2'6.7") -
F Wheelbase
1.06 m (3'5.7") -
Ground Clearance
(Pothole Guard Stowed)0.068 m (2.7") -
Ground Clearance
(Pothole Guard Deployed)0.015 m (0.59") -
Platform Dimensions(L×W×H)
1.34 m×0.74 m×1.1 m (4'5"×2'5"×3'7")
Performance
-
Platform Allowable Occupants
(Indoor/Outdoor)1 Person/1 Person -
Platform Capacity
227 kg (500 lbs) -
Drive Speed-Stowed
0～4 km/h (0～2.5 mph) -
Drive Speed-Raised
0～0.5 km/h (0～0.3 mph) -
Elevation Time
(Unloaded)24~28s(Rated load) -
Descent Time
(Unloaded)24~28s(Rated load) -
Gradeability
25% -
Turning Radius
(Inside/Outside)0.14 m/1.34 m (5.5"/4'5") -
Tilt Rating
(Front to Back/ Side to Side)3°/1.5° -
Tyre Spec/Type
305×100 mm (12×4") / solid
305×114 mm (12×4.5") / solid
Power
-
Batteries
24 V, 120 Ah -
Power Source
24 V DC, 2.2 kW -
Drive Mode
2 WD×2 WS -
Charger Input
100～240 V AC -
Charger Output
15A -
Brake
- -
Hydraulic System Capacity
6 L (1.3 gal (UK)/1.6 gal (US))
-
Weight
970 kg (2,138 lbs) -
Standards Compliance
CE/ANSI/CSA
Standard features
- 2WD×2WS
- AGM maintenance-free battery
- Fault diagnosis system
- Solid non-marking tires
- Proportional control
- Emergency lowering system
- Emergency stop
- Electrophoretic painting
- Tilt protection system
- Flashing beacon
- Lifting and tie-down points
- Overload sensing system
- Drivable at full height
- Automatic pothole protection
- Manual storage box
- Horn & buzzer
- Bumper rails
- Auto braking system
- Telematics-ready connector
- Cylinder mast system
Optional features
- RCBO
- AC power to platform
- Tool tray
