HOME>PRODUCTS>VERTICAL MAST LIFT>VM04E(VM120E)

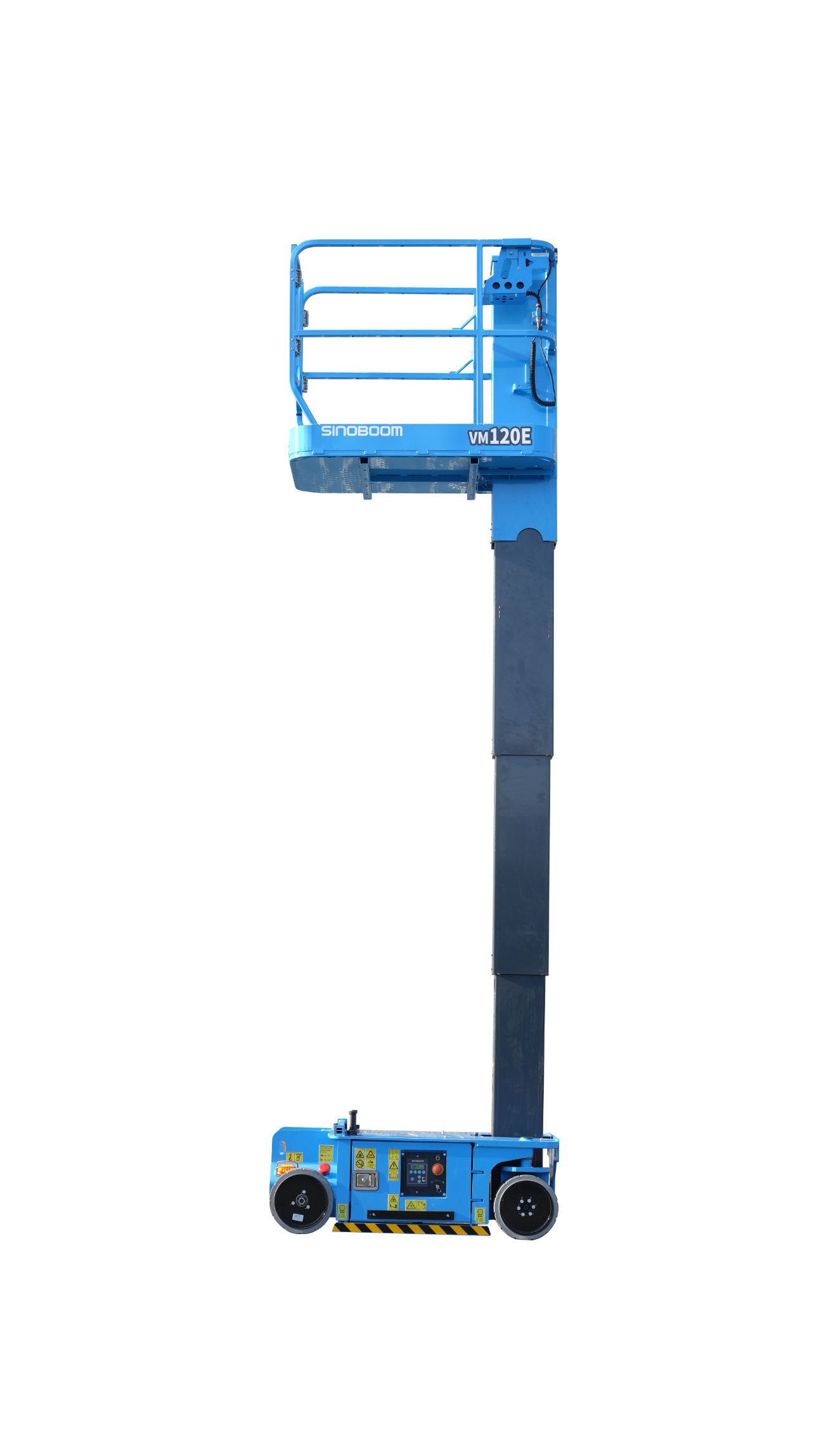

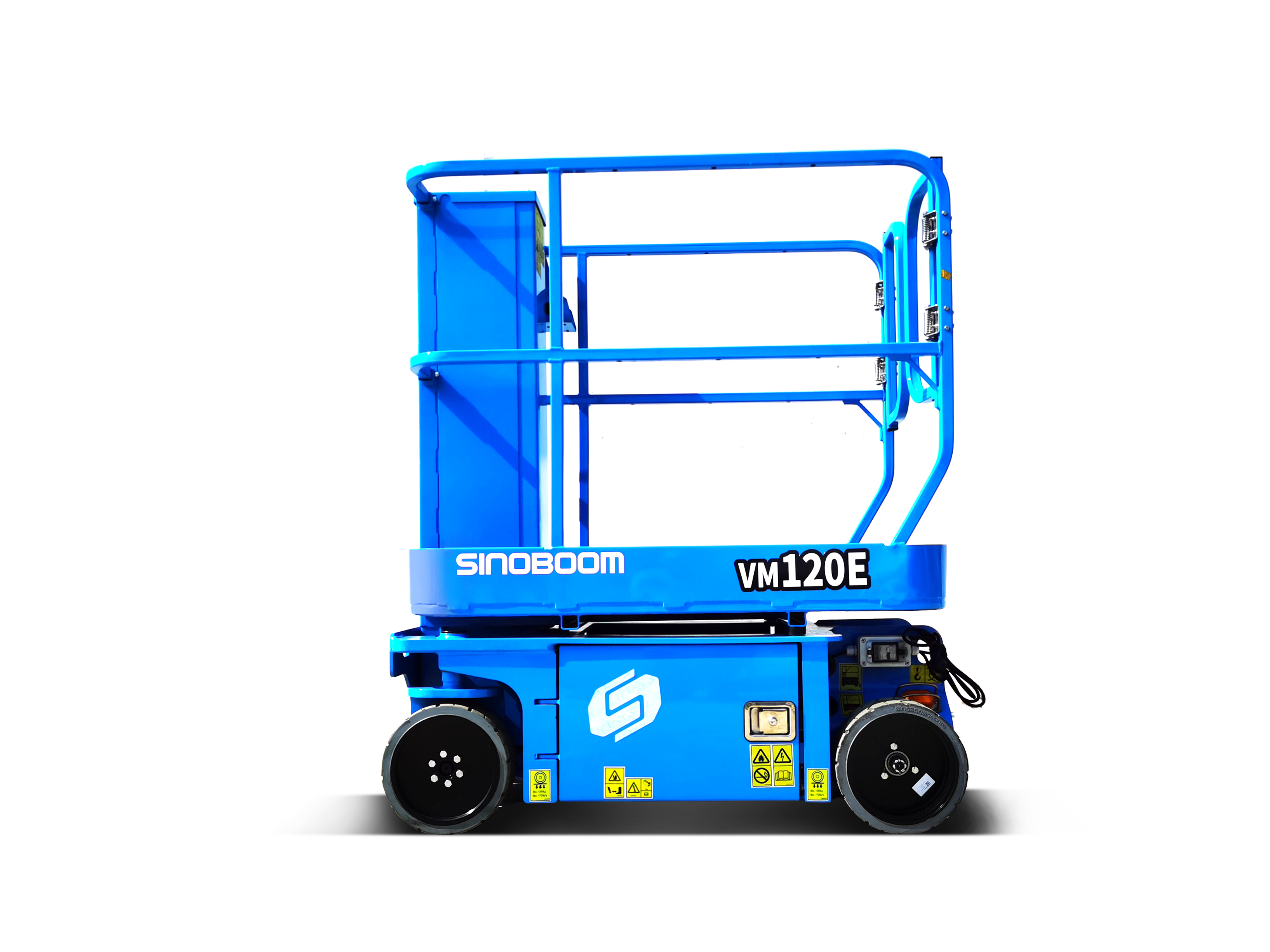

VM04E(VM120E)

VERTICAL MAST LIFTS
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Product Highlights

  • Easy maintenance

    Easy maintenance

  • Electric drive maneuvering

    Electric drive maneuvering, environmentally-friendly
    and high efficiency

  • AGM maintenance-free battery

    AGM maintenance-free battery with high energy
    density and long life

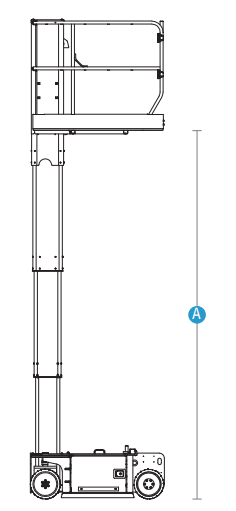

Dimensions

  • Max Working Height

    5.8m (19')

  • A Max Platform Height

    3.8 m (12'5.6")

  • B Max Horizontal Extension

  • C Length-Stowed

    1.38 m (4'6")

  • D Height-Stowed

    1.66 m (5'5.8")

  • E Width-Stowed

    0.78 m (2'5.9")

  • F Wheelbase

    1.06 m (3'7.7")

  • Ground Clearance
    (Pothole Guard Stowed)

    0.068m (2.7")

  • Ground Clearance
    (Pothole Guard Deployed)

    0.015 m (0.59")

  • Platform Dimensions(L×W×H)

    1.35 m×0.74 m×1.1 m (4'5"×2'6"×3'8")
Performance

  • Platform Allowable Occupants
    (Indoor/Outdoor)

    2 Persons

  • Platform Capacity

    227 kg (500 lbs)

  • Drive Speed-Stowed

    4 km/ h (2.5 mph)

  • Drive Speed-Raised

    0.5 km/ h (0.3 mph)

  • Elevation Time
    (Unloaded)

    15~20 s

  • Descent Time
    (Unloaded)

    20~25 s

  • Gradeability

    25%

  • Turning Radius
    (Inside/Outside)

    0.14 m/1.34 m (5.5"/4'5")

  • Tilt Rating
    (Front to Back/ Side to Side)

    3°/1.5°

  • Tyre Spec/Type

    305×114 mm (12×4.5") front tires 305×100 mm (12×4") rear tires Solid non-marking tires
Power

  • Batteries

    24 V,120Ah (AGM batteries)

  • Power Source

    24V DC /2.2 kW

  • Drive Mode

    2WD×2WS

  • Charger Input

    100～240 V AC

  • Charger Output

    15A

  • Brake

    2 rear wheel

  • Hydraulic System Capacity

    6L (1.3gal(UK) / 1.6gal(US))


  • Weight

    780 kg (1,720 lbs)

  • Standards Compliance

    CE/ANSI/CSA/AS/EAC
Download Brochures
Standard features
  • 2WD×2WS
  • AGM maintenance-free battery
  • Fault diagnosis system
  • Solid non-marking tires
  • Proportional control
  • Emergency lowering system
  • Emergency stop
  • Electrophoretic painting
  • Tilt protection system
  • Flashing beacon
  • Lifting and tie-down points
  • Overload sensing system
  • Drivable at full height
  • Automatic pothole protection
  • Manual storage box
  • Horn & buzzer
  • Bumper rails
  • Auto braking system
  • Telematics-ready connector
  • Cylinder mast system
  • Indoor use only
Optional features
  • RCBO
  • AC power to platform
  • Tool tray
