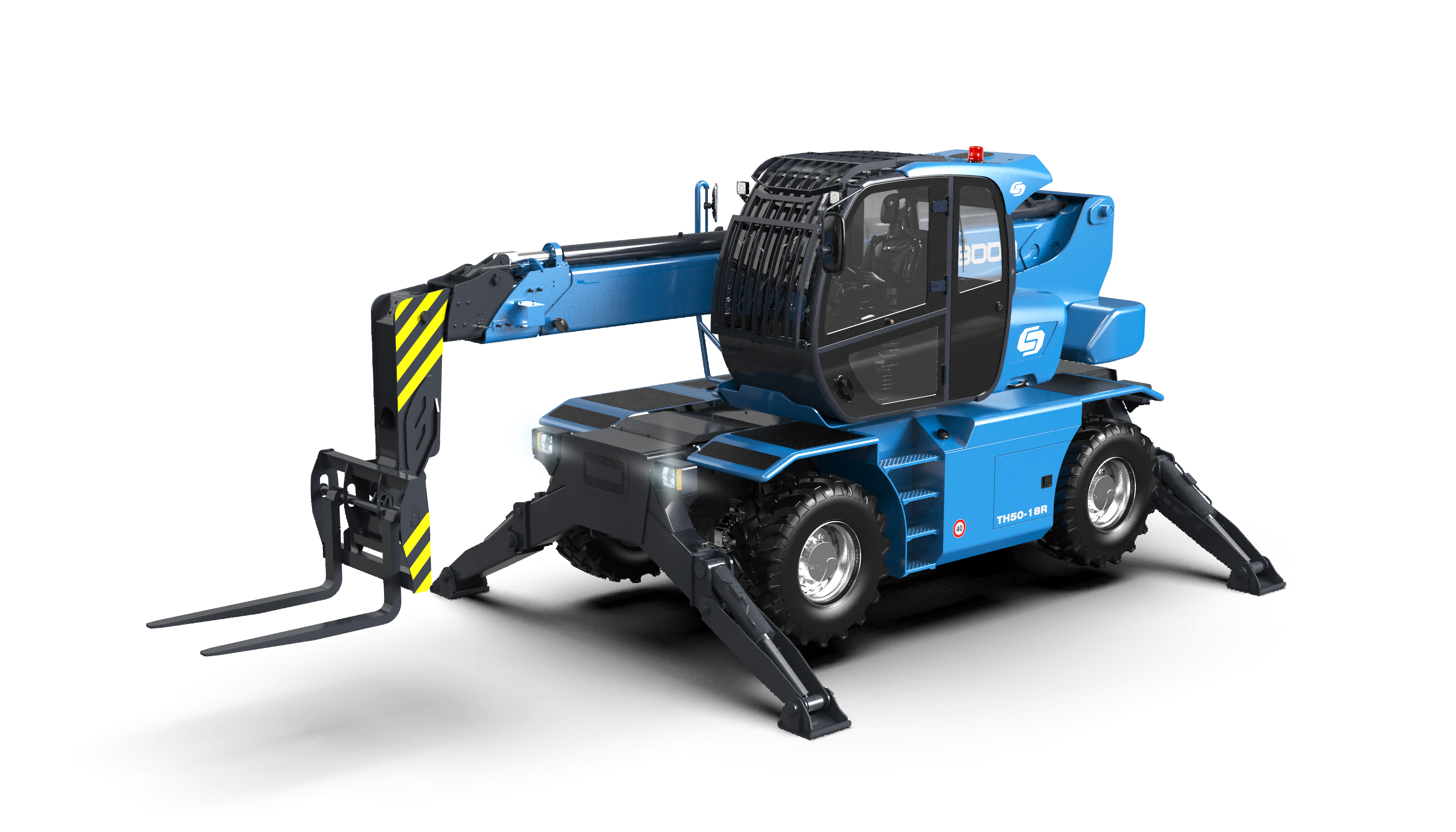

TH50-18R
Rotating Multi-functional Telehandler
-
Lifting Heightm
-
Lifting Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS

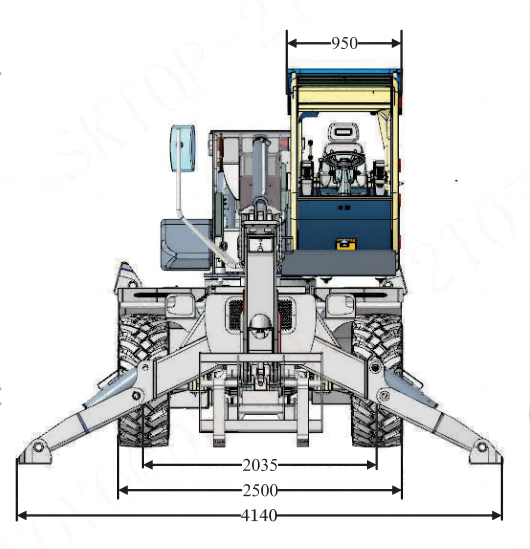

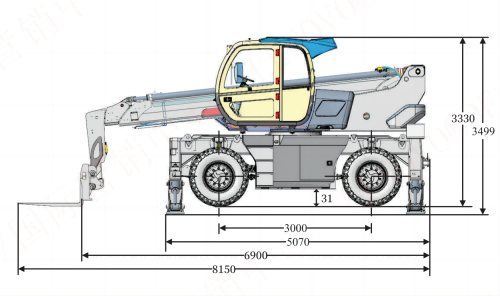

Dimensions
-
Length
8.15m -
Length(to face of fork)
6.9m -
Width-Stowed
2.5m -
Height
3.33m -
Cab Width
0.95m -
Ground Clearance
0.41m -
Wheel Base
3.0m -
Length/Width/Height of Fork
0.32mm x 1.08m x 0.71mm

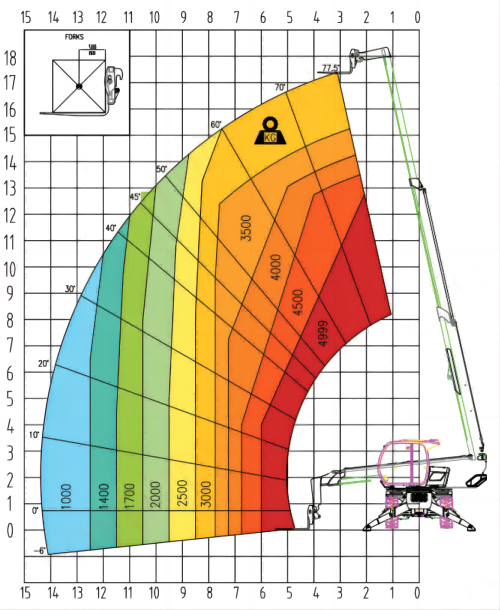

Performance
-
Max. Lifting Capacity
4999kg -
Max. Lifting Height
17.6m -
Max. Outreach
14.3m -
Tilt-up Angle of Fork
12° -
Tilt-down Angle of Fork
﹣112° -
Turntable Rotation
360° / continuous -
Max. Speed(Boom Retracted)
35km/h -
Gradeability
40% -
Approach/Departure Angle
22°/ 22° -
Attachment Recognition System
Yes
Power
-
Rated Power/Rotate Speed
92 kW/2200 rpm (123.3 hp/2200 rpm) -
Control Voltage
12V DC -
Hydraulic Tank Capacity
235L -
Diesel Fuel Tank Capacity
215L
-
Weight
15,415kg -
Standards Compliance
CE/EAC
Standard features
- Wet braking bridge
- Two-speed transmission
- 3 steering modes
- Braking on 4 wheels
- Turret 360 continuous rotation
- 134° rotation and leveling of attachments
- Tip over protection
- Fault diagnosis system
- Bus control valve
- Automatic engine speed-up funciton
- Weighting system
- 7 inch intelligent screen
- 4WD
- Electro-proportional joystick
- Frame leveling
Optional features
- Anti-entrapment system
- Reversing camera
- Attachment work light
- Anti-collision device
- Document box 360° panoramic camera
- AC power to platform
- RFID attachment recognition system
- Optional attachments: fork-type manned platform, bucket, clamp, vacuum suction device, gripper
