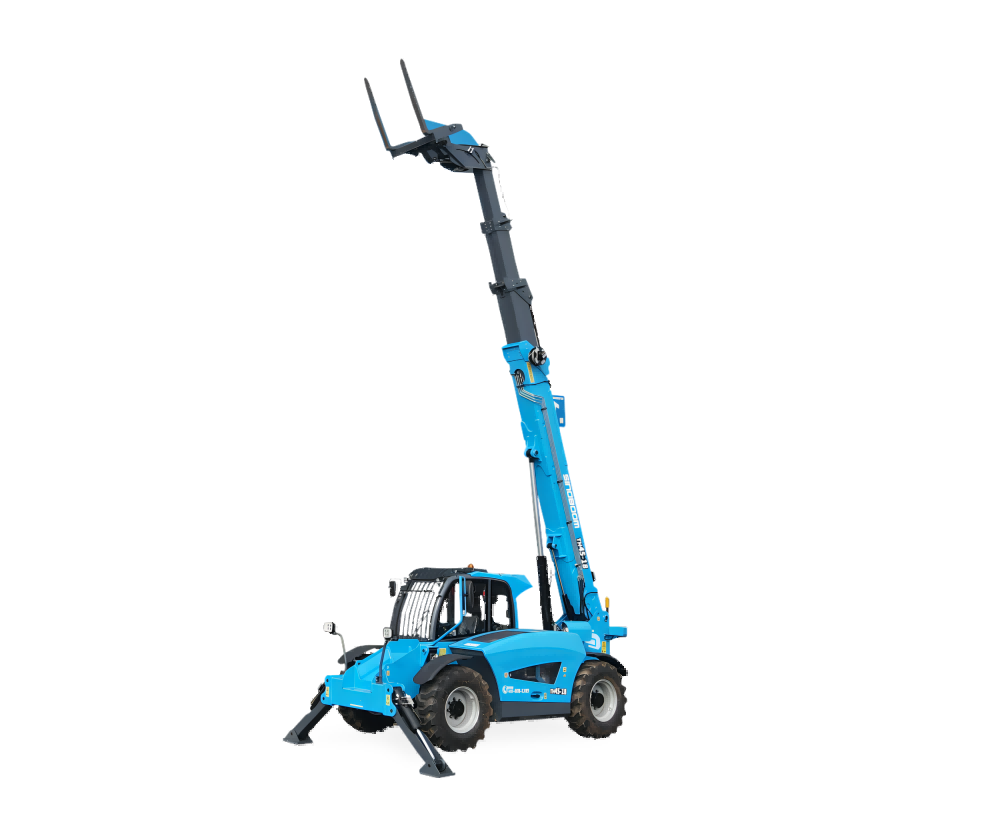

TH45-18
Stationary Multi-functional Telehandler
-
Lifting Heightm
-
Lifting Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS

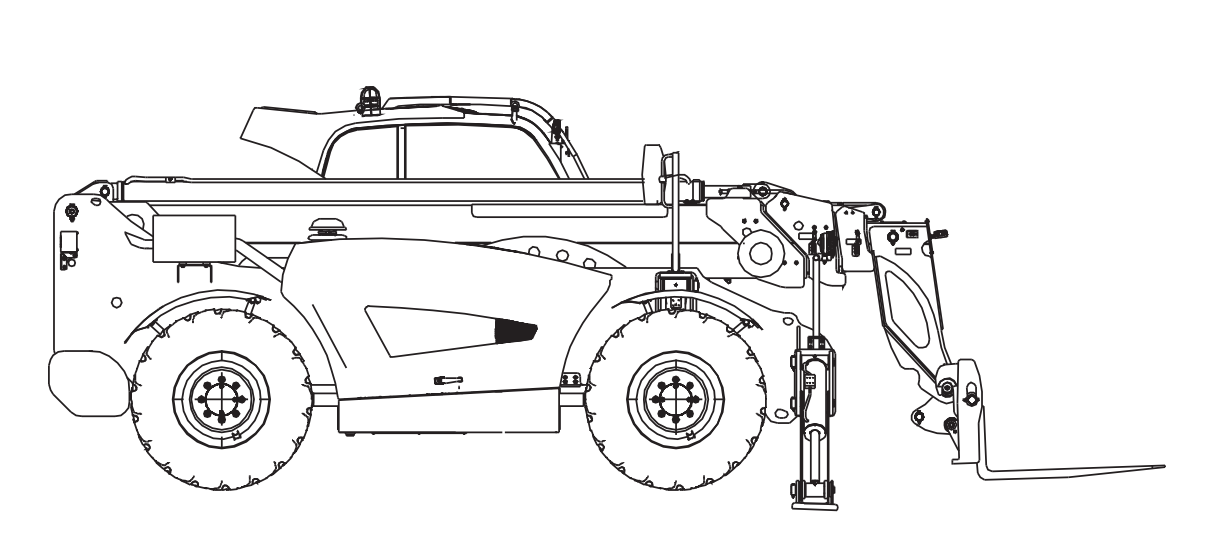

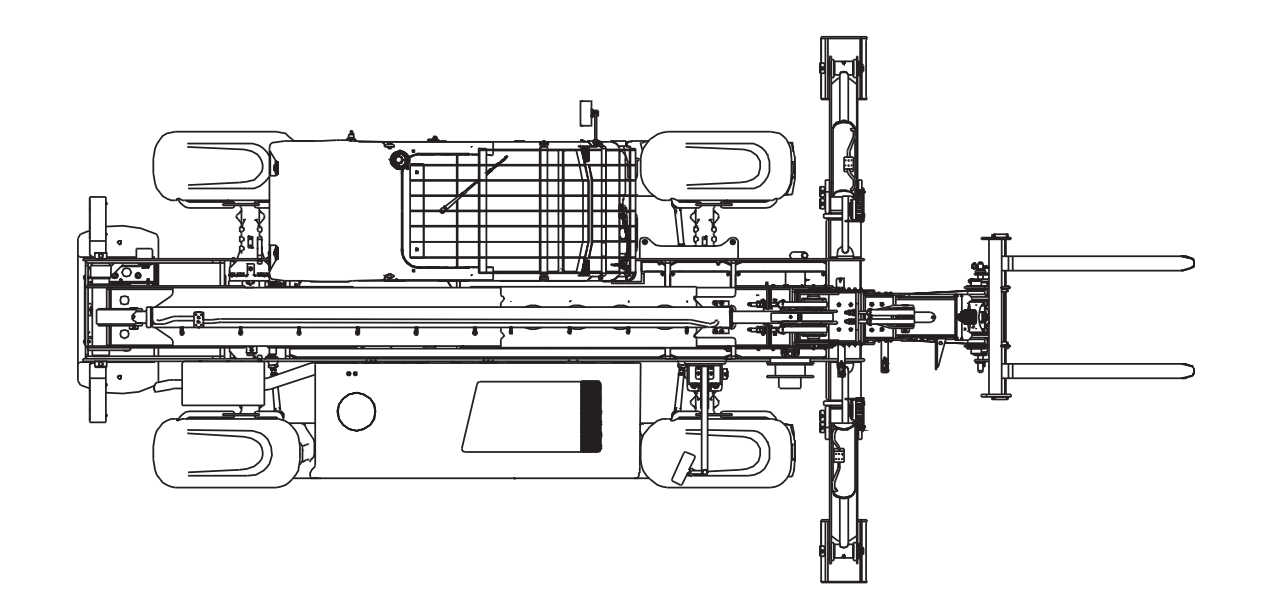

Dimensions
-
Length
7.73m -
Length(to face of fork)
6.49m -
Width-Stowed
2.34m -
Height
2.6m -
Cab Width
0.95m -
Ground Clearance
0.37m -
Wheel Base
3.1m -
Length/Width/Height of Fork
1.13m × 0.29m × 0.98m

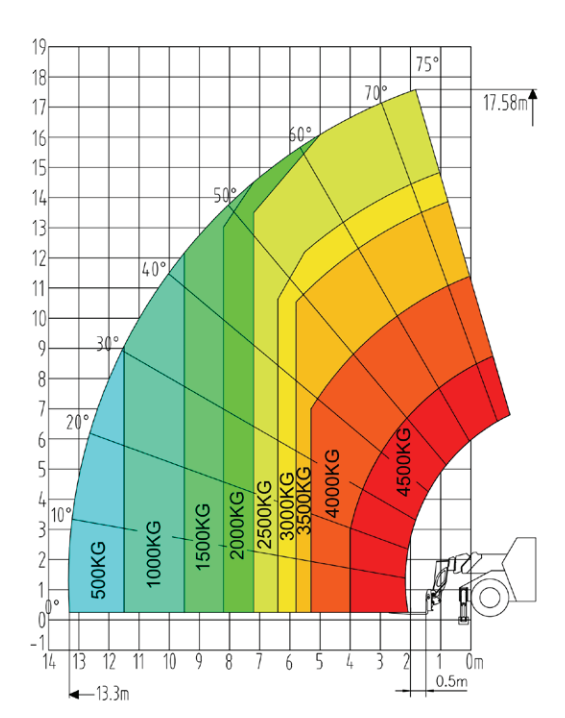

Performance
-
Max. Lifting Capacity
4,500kg -
Max. Lifting Height
17.6m -
Max. Outreach
13.1m -
Tilt-up Angle of Fork
13° -
Tilt-down Angle of Fork
-110° -
Turntable Rotation
- -
Max. Speed(Boom Retracted)
28km/h -
Gradeability
50% -
Approach/Departure Angle
30°/30° -
Attachment Recognition System
-
Power
-
Rated Power/Rotate Speed
73.5 kw/2200 rpm -
Control Voltage
12 VDC -
Hydraulic Tank Capacity
222L -
Diesel Fuel Tank Capacity
142L
-
Weight
13,100kg -
Standards Compliance
CE/EAC
Standard features
- Wet braking bridge
- Two-speed transmission
- 3 steering modes
- Braking on 4 wheels
- Weighting system
- 126° rotation and leveling of attachments
- Tip over protection
- Fault diagnosis system
- Bus control valve
- Automatic engine speed-up funciton
- Frame leveling
- 7 inch intelligent screen
- 4WD
- Electro-proportional joystick
Optional features
- Anti-entrapment system
- Reversing camera
- Attachment work light
- Anti-collision device
- Document box
- 360° panoramic camera
- AC power to platform
- Automatic parking
- RFID attachment recognition system
- Optional attachments: fork-type manned platform, bucket, clamp, vacuum suction device, gripper
