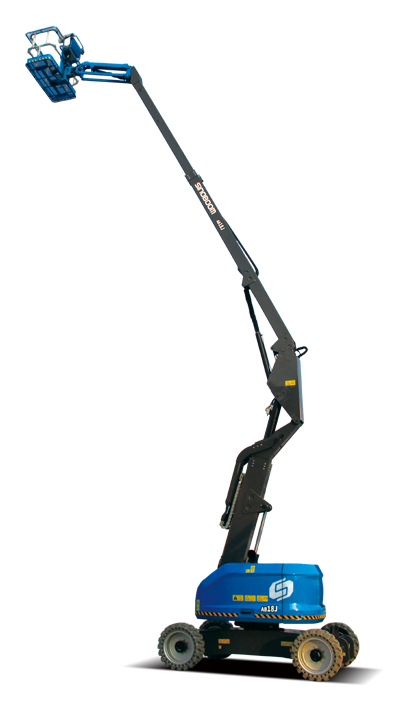

AB18J(AB600J)

Engine Powered Articulated Boom Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Product Highlights

  • Powerful Off-Road Performance

    ■ 40%-45% gradeability, proprietary patented technology for anti-skid
    control to ensure a strong off-road capability

  • Precision performance

    ■ 3 joysticks with variable proportional control, boom swing, boom
    extension, turntable rotation and walking speed, smooth start and stop
    motion, accuracy in reaching the operation target

  • Smart maintenance

    ■ Smart 7" screen display, fault and status information display for easy
    viewing of machine status and fault diagnosis, parameters and settings

  • Safe and reliable

    ■ Secure and reliable folding arm, luffing operation with hydraulic
    interlocking, and hydraulic-connection body leveling
    ■ Simple and reliable hydraulic platform leveling

  • Operating efficiency

    ■ The working platform can be lifted and lowered to any position without
    the need to operate the folding arm.
    ■ Quick platform ascent and descent
Dimensions

  • Max Platform Height

    18.3m (60')

  • Max Working Height

    20.3m (66'7")

  • Max Horizontal Extension

    12.2m (40')

  • [A] Length-Stowed

    8.6m (28'3")

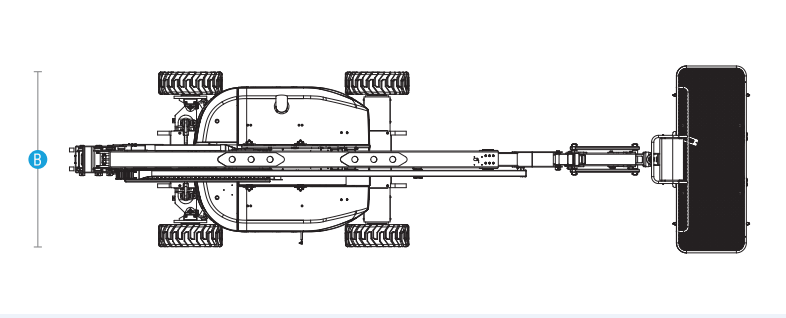

  • [B] Width-Stowed

    2.28m (7'6")

  • [C] Height-Stowed

    2.56m (8'5")

  • [D] Wheelbase

    2.44m (8')

  • Ground Clearance

    0.23m (9.1“)

  • Platform Dimensions(L×W×H)

    1.83×0.85×1.1m (6'×2'9"×3'7")
Performance

  • Platform Capacity
    (Unrestricted/2 Persons)

    250kg (551lbs)

  • Turntable Rotation

    360° continuous

  • Platform Rotation

    160°

  • Drive Speed-Stowed

    5km/h (3.1mph)

  • Drive Speed-Raised

    1.1km/h (0.7mph)

  • Gradeability

    40％

  • Turning Radius-Inside

    3.48m (11'5")

  • Turning Radius-Outside

    6.29m (20'8")

  • Turntable Tailswing

    0.2m (7.9")

  • Tilt Rating

    5°

  • Max Operating Noise Level

    82dB(A)

  • Drive×Steer

    4WD×2WS

  • Tyres Spec/Type

    33×12D610 (Foam-filled)
Power

  • Power source(optional)

    43 kW/2500 rpm/ QSF2.8t3NA60 / Cummins/China T3, EU Stage 3A

  • Auxiliary Power Unit

    12V DC

  • Fuel Tank Capacity-Diesel

    110L（24.2 gal (UK) / 29.1 gal (US)）

  • Hydraulic Tank Capacity

    120L（26.4 gal (UK) / 31.7 gal (US)）


  • Weight

    10,700kg 4WD (23,589lbs 4WD)

  • Standards Compliance

    CE/AS/EAC
Download Brochures
Standard features
  • Oscillating function
  • 7-in display screen
  • 4WD × 2WS
  • Proportional control with 3 joysticks
  • Automotive-grade sleeves for all pipes
  • Secondary guarding device
  • Hydraulic platform leveling
  • AC power to platform
  • Weighing system
  • Tilt protection system
  • Max tilt rating to 5°
  • Emergency stop system
  • Flashing beacon
  • Horn & buzzer
  • Emergency lowering system
  • Footswitch
  • 1.83 m (6') platform(AB18J)/2.44 m(8') platform(AB25J)
  • Telematics-ready connector
  • Fault diagnosis system
  • Foam-filled tires(AB18J)/Solid tires(AB25J)
  • Manual storage box
Optional features
  • Foam-filled non-marking tires
  • Solid non-marking tires
  • Solid tires
  • 2.44 m (8') platform with swinging gate
  • 1.83 m (6') platform with swinging gate
  • 1.45 m (4'9") platform
  • Overhead anti-collision device
  • Glazier kit (for platform with swinging gate)
  • Half mesh (for platform with swinging gate)
  • Platform work light
