HOME>PRODUCTS>ARTICULATING BOOM LIFT>AB46RJ (AB1530RJ)

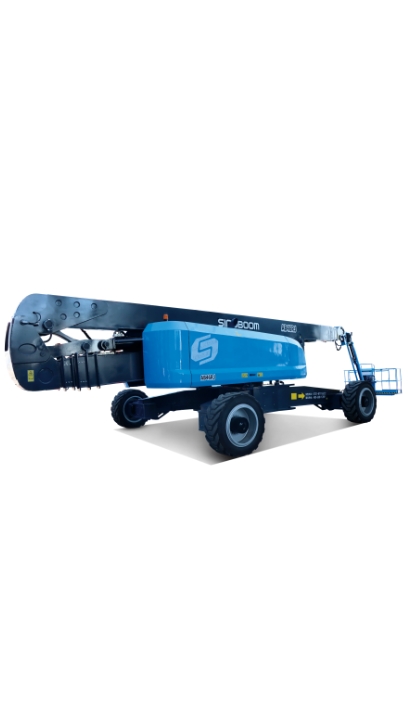

AB46RJ (AB1530RJ)

Engine Powered Articulating Boom Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Product Highlights

  • Precision Performance

    ■ 3 joysticks with variable pro portional control, accuracy in reaching the operation target

  • Intelligent Maintenance

    ■ Industry leading 7" screen displays faults and status informmation, for easy reference, reducingservice technician assistance. Workers can complete tasks under the remote guidance of qualified service technicians. Convenient for fleet managers to quickly access live machine and maintenance information

  • Reliable

    ■ Secure and reliable folding arm,luffingoperation with hydraulic interlocking,and hydraulic-connection body leveling

  • Operating Efficiency

    ■ The working platfom can be lifted and lowered to any position without the need to operate the folding arm
Dimensions

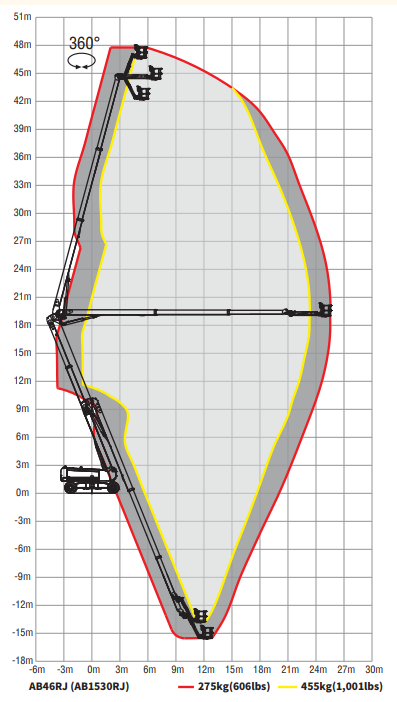

  • Max Platform Height

    46.6m (152'11")

  • Max Working Height

    48.6m (159'5")

  • Max Horizontal Extension

    23.1 m/25.5 m (75'9"/83'8")

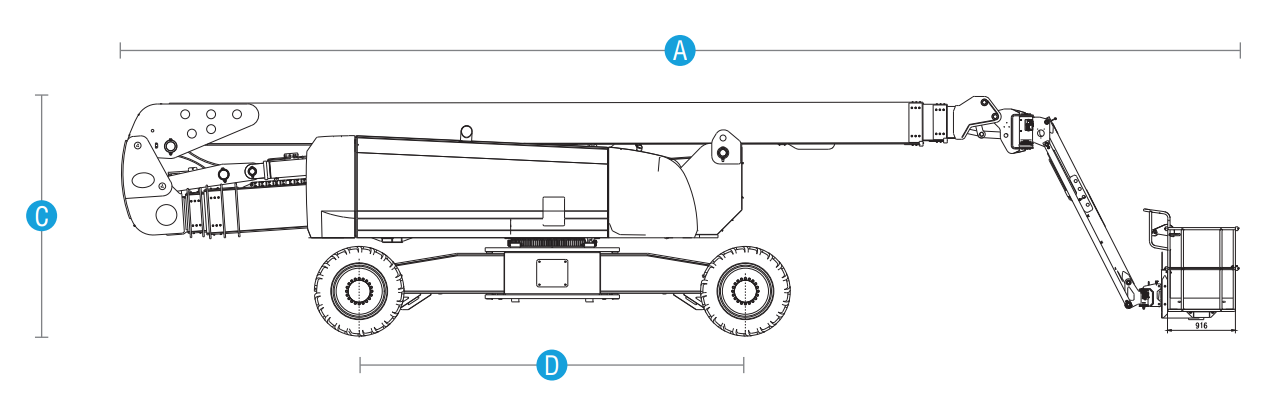

  • [A] Length-Stowed

    15m (49'3")

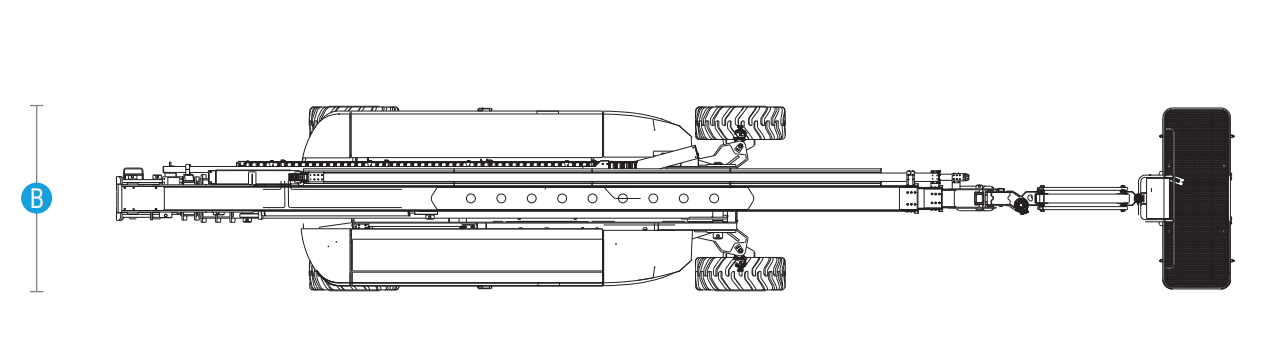

  • [B] Width-Stowed

    2.49 m/5 m (8'2"/16'5") (Axle Retracted / Extended)

  • [C] Height-Stowed

    3.2m (10'6")

  • [D] Wheelbase

    5.2m (17'1")

  • Ground Clearance

    0.44 m (1'5")

  • Platform Dimensions(L×W×H)

    2.44x0.91x1.1m (8'x3'x3'7")
Performance

  • Platform Capacity
    (Unrestricted/2 Persons)

    455 kg/275 kg (1,001 lbs/606 lbs)(Restricted/Unrestricted)

  • Turntable Rotation

    360°/Continuous

  • Platform Rotation

    180°

  • Drive Speed-Stowed

    0～4.5 km/h (0～2.8 mph)

  • Drive Speed-Raised

    0～0.48 km/h (0～0.3 mph)

  • Gradeability

    40% (4WD）

  • Turning Radius-Inside

    7.1m (23'4")

  • Turning Radius-Outside

    9.52m (31'3")

  • Turntable Tailswing

    4.6 m (15'1")

  • Tilt Rating

    5°

  • Max Operating Noise Level

    -

  • Drive×Steer

    4WDx4WS

  • Tyres Spec/Type

    445/50D710 24PR (foam- filled)
Power

  • Power source(optional)

    74 kw/2200 rpm/QSF3.8t3TC99/Cummins /China T3、EU Stage3A
    74.4kw/2300rpm/TCD3.6 L4 Stage V+T4f/DETUZ/ EU StageⅤ,T4f
    74.4kw/2300rpm/TCD3.6-L4-T4f/DETUZ/T4f (More options on the specs sheet)

  • Auxiliary Power Unit

    12 VDC

  • Fuel Tank Capacity-Diesel

    200L (44 gal (UK) / 53 gal (US))

  • Hydraulic Tank Capacity

    410L (90 gal (UK) / 108 gal (US))


  • Weight

    27,300kg (60,186lbs) 4WD

  • Standards Compliance

    CE/EAC
Download Brochures
Standard features
  • 7-in display screen
  • 4WD x 2WS
  • Proportional control with 3 joysticks
  • Automotive-grade sleeves for all pipes
  • 4-wheel brake
  • Hydraulic platform levelling
  • Weighing system
  • Tilt protection system
  • Max tilt rating to 5°
  • Emergency stop system
  • Flashing beacon
  • Horn & buzzer
  • Emergency lowering system
  • Footswitch
  • 2.44m(8') platform
  • Fault diagnosis system
  • Foam-filled tires
  • Manual storage box
  • Secondary guarding device
  • Telematics-ready connector
Optional features
  • Foam-filled non-marking tires
  • Solid tires/Solid non-marking tires
  • Platform work light
  • 1.83m(6') platform with swinging gate
  • Glazier kit
  • Half mesh
  • Overhead anti-collision device
  • AC power to platform
  • Telematics-ready connector
