HOME>PRODUCTS>SCISSOR LIFT>1012N (3346N)

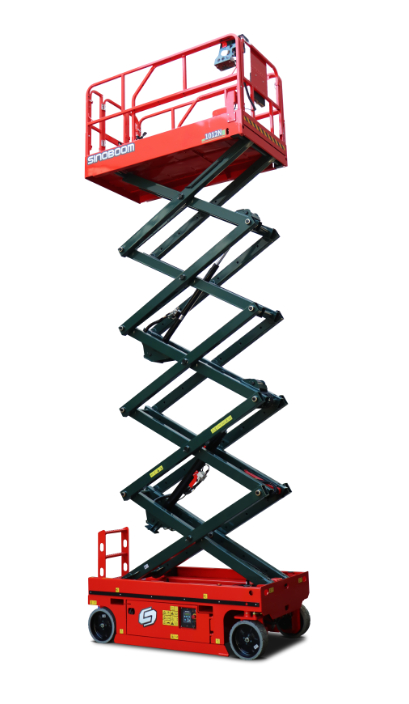

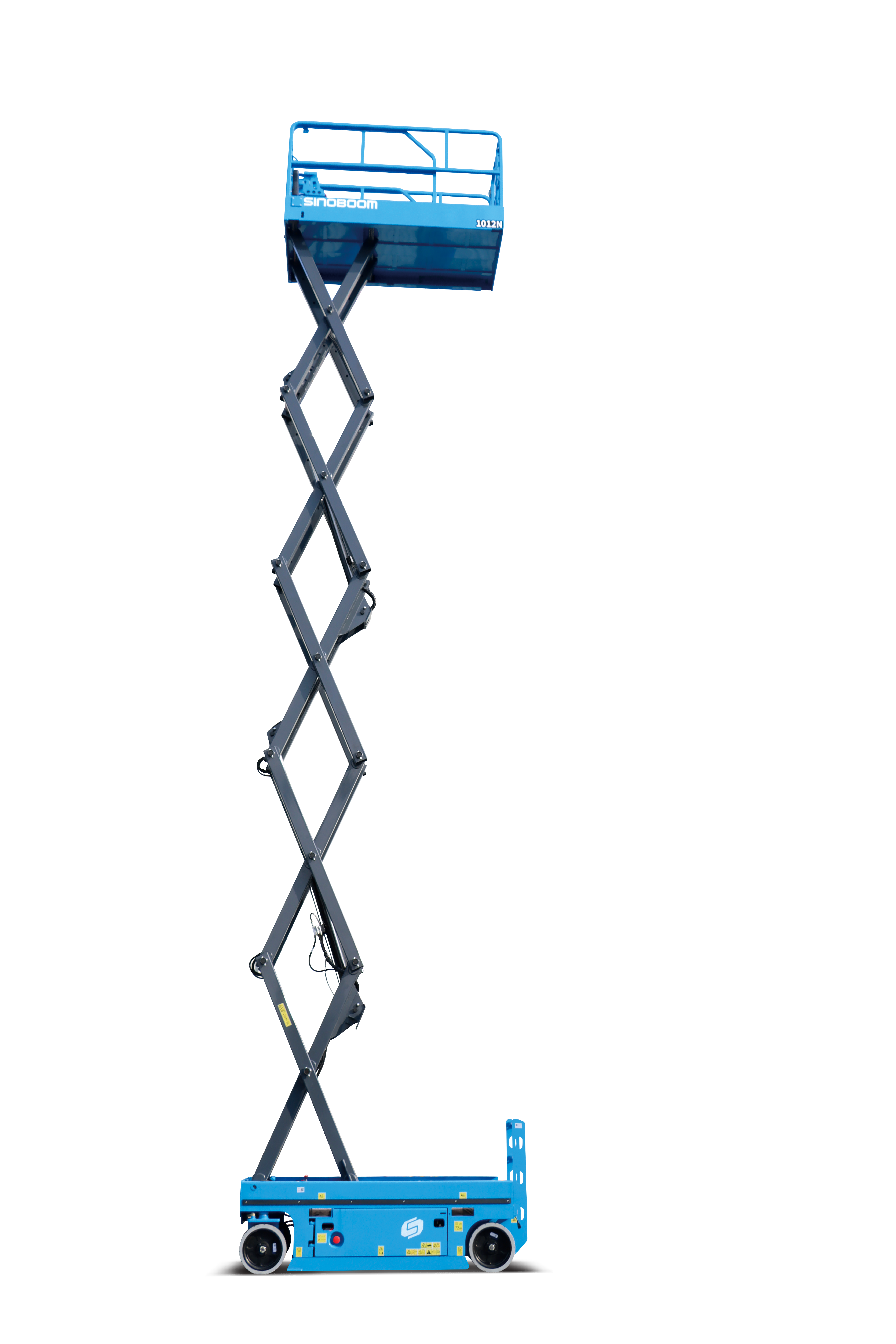

1012N (3346N)

Hydraulic Series Scissor Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

  • Max Working Height

    12m (39’4.5")

  • [A] Max Platform Height

    10m (32’10’’)

  • [B] Max Horizontal Extension

    0.9m (3')

  • [C] Length-Stowed

    2.39m (7'10.1")

  • [D] Width-Stowed

    1.18m (3’10.5")

  • Height - stowed (Rail Folded)

    1.86m (6’1’’)

  • [E] Height - stowed
    (Rail Unfolded)

    2.49m (8’2")

  • [F] Wheelbase

    1.85m (6'0.8")

  • Ground Clearance

    0.088m(3.5")

  • Platform Dimensions(L×W×H)

    2.25m×1.15m×1.1m (7'4.6"×3'9"×3'7")
Performance

  • Platform Allowable Occupants
    （Indoor/Outdoor）

    2 Persons/ 1 Person

  • Platform Capacity

    320kg (705lbs)

  • Drive Speed-Stowed

    3.2km/h (2mph)

  • Drive Speed-Raised

    0.5km/h (0.31mph)

  • Elevation Time
    (Unloaded)

    53s~58s

  • Descent Time
    (Unloaded)

    40s~45s

  • Gradeability

    25%

  • Turning Radius
    (Inside/Outside)

    0.18m/2.35m (7.1’’/7'8.5")

  • Tilt Rating
    (Front to Back/Side to Side)

    3°/1.5°

  • Tyres-solid

    380×125mm (15×5")
Power

  • Batteries

    24V, 220Ah (AGM maintenance-free battery)/25.6V, 200Ah (Lithium battery)

  • Power Source

    24V DC

  • Drive Mode

    2WD, front-wheel

  • Charger Input

    100~240V AC

  • Charger Output

    30A

  • Brake

    2 rear wheel

  • Hydraulic System Capacity

    23L (5.1gal (UK)/6.1gal (US))


  • Weight(Indoor/Outdoor)

    2,610kg (5,754lbs)

  • Weight(Indoor Only)

  • Standards Compliance

    CE/ANSI/EAC
Download Brochures
Standard features
  • 2WD×2WS
  • AGM maintenance-free battery
  • Indoor & outdoor use
  • Non-marking tires
  • Proportional control
  • Fault diagnosis system
  • Emergency stop
  • Electrophoretic painting
  • Emergency lowering system
  • Flashing beacon
  • Forklift pockets and lifting points
  • Tilt protection system
  • Foldable guardrail
  • Automatic pothole protection
  • Overload sensing system
  • Drivable at full height
  • Bumper rails
  • Manual storage box
  • Horn & buzzer
  • Telematics-ready connector
  • Auto braking system
Optional features
  • Footswitch
  • Overhead anti-collision device
  • Lithium battery
  • RCBO
  • AC power to platform
