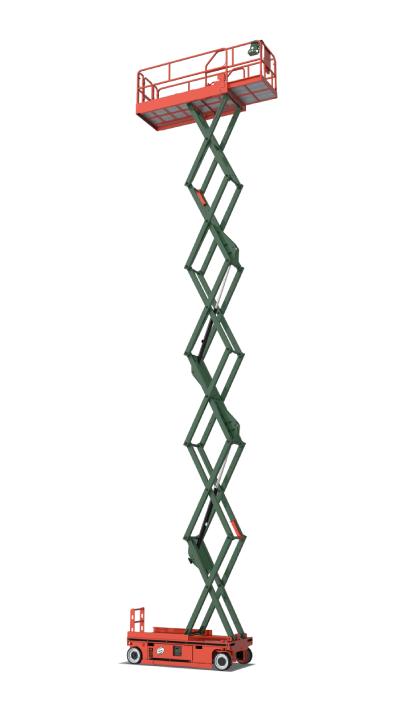

1412(4647)

Hydraulic Drive Scissor Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Product Highlights

  • More reliable performance

    ■ Battery voltage early warning to ensure battery life
    ■ Bumper rail protection
    ■ Pothole protection reporting and horizontal protection system give peace of mind during operation

  • Reduced maintenance costs

    ■ Double-door design for easy maintenance
    ■ Troubleshooting for quick fault diagnosis
    ■ Highly quality parts and components

  • Flexible operation

    ■ Small turning radius, flexible operation in narrow spaces
    ■ Standard forklift slot for efficient equipment transportation
    ■ Folding guardrails for easy transport
Dimensions

  • Max Working Height

    15.8m (51'10")

  • [A] Max Platform Height

    13.8m (45'3")

  • [B] Max Horizontal Extension

    0.9m (3')

  • [C] Length-Stowed

    2.78m (9')

  • [D] Width-Stowed

    1.27m (4'2")

  • Height - stowed (Rail Folded)

    1.96m (6'5")

  • [E] Height - stowed
    (Rail Unfolded)

    2.6m (8'6")

  • [F] Wheelbase

    2.22m (7'3")

  • Ground Clearance

    Pothole Guard Stowed:0.1 m (4")
    Pothole Guard Deployed: 0.025 m (0.98")

  • Platform Dimensions(L×W×H)

    2.64m×1.15m×1.1m (8'8"×3'9"×3'7")
Performance

  • Platform Allowable Occupants
    （Indoor/Outdoor）

    2 persons(Indoor Only)

  • Platform Capacity

    227kg (500lbs)

  • Drive Speed-Stowed

    0~3.2 km/h (0~2mph)

  • Drive Speed-Raised

    0~0.8 km/h (0~0.5mph)

  • Elevation Time
    (Unloaded)

    83s~92s

  • Descent Time
    (Unloaded)

    55s~65s

  • Gradeability

    25%

  • Turning Radius
    (Inside/Outside)

    0/2.64m (0/8'8")

  • Tilt Rating
    (Front to Back/Side to Side)

    3°/1.5°

  • Tyres-solid

    380×125 mm (15×5") /solid
Power

  • Batteries

    24V, 280Ah (Lead acid battery)
    25.6V, 200Ah (Lithium battery)

  • Power Source

    24V DC /4.5 kW

  • Drive Mode

    2WD, front-wheel

  • Charger Input

    100~240V AC

  • Charger Output

    30A

  • Brake

    2 rear wheel

  • Hydraulic System Capacity

    15L (3.3 gal(UK)/4.0 gal (US))


  • Weight(Indoor/Outdoor)

    -

  • Weight(Indoor Only)

    3,360kg (7,409lbs)

  • Standards Compliance

    CE/ANSI/CSA/EAC/KCS
Download Brochures
Standard features
  • 2WD×2WS
  • Maintenance-free battery
  • Fault diagnosis system
  • Non-marking tires
  • Proportional control
  • Emergency lowering system
  • Emergency stop
  • Electrophoretic painting
  • Tilt protection system
  • Flashing beacon
  • Forklift pockets and lifting points
  • Overload sensing system
  • Foldable guardrail
  • Automatic pothole protection
  • Manual storage box
  • Drivable at full height
  • Bumper rails
  • Auto braking system
  • Horn & buzzer
Optional features
  • RCBO
  • AC power to platform
  • Platform work light
  • Footswitch
  • Overhead anti-collision device
  • Telematics-ready connector
  • Lithium battery
