0608N(1930N)

Hydraulic Series Scissor Lifts

Working Height

7.8m

Platform Capacity

230kg

Gradeability

25%

Get a Quote

Download Brochures

SPECIFICATIONS
Standard/Optional
APPLICATIONS

Dimensions

Max Working Height

7.8m (25'7")

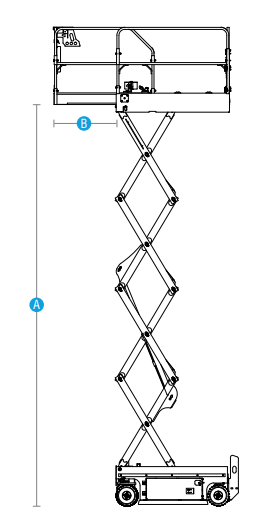

[A] Max Platform Height

5.8m (19’)
[B] Max Horizontal Extension

0.9m (3')

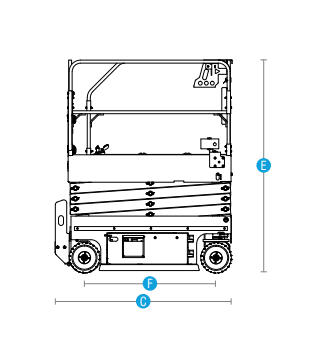

[C] Length-Stowed

(5'10.1")
[D] Width-Stowed

0.79m (2'7.1")
Height - stowed (Rail Folded)

1.84m (6'0.4’’)
[E] Height - stowed
(Rail Unfolded)

2.15m (7’0.6")
[F] Wheelbase

1.325m (4'4.2")
Ground Clearance

0.061m(2.4")
Platform Dimensions(L×W×H)

1.64m×0.76m×1.1m (5'4.6"×2'6"×3'7")

Performance

Platform Allowable Occupants
（Indoor/Outdoor）

2 Persons/1Person
Platform Capacity

230kg (265lbs)
Drive Speed-Stowed

3km/h (1.86mph)
Drive Speed-Raised

0.5km/h (0.31mph)
Elevation Time
(Unloaded)

15s~20s
Descent Time
(Unloaded)

25s~30s
Gradeability

25%
Turning Radius
(Inside/Outside)

0/1.49m (0/4'10.7")
Tilt Rating
(Front to Back/Side to Side)

3°/1.5°
Tyres-solid

305×115mm (12×4.5")

Power

Batteries

24V, 220Ah (AGM maintenance-free battery)
Power Source

24V DC
Drive Mode

2WD, front-wheel
Charger Input

100~240V AC
Charger Output

30A
Brake

2 rear wheel
Hydraulic System Capacity

11L (2.4gal (UK)/2.9gal (US))

Weight(Indoor/Outdoor)

1,550kg (3,417lbs)
Weight(Indoor Only)
Standards Compliance

CE

Download Brochures

Standard features

2WD×2WS
AGM maintenance-free battery
Indoor & outdoor use
Non-marking tires
Proportional control
Fault diagnosis system
Emergency stop
Electrophoretic painting
Emergency lowering system
Flashing beacon
Forklift pockets and lifting points
Tilt protection system
Foldable guardrail
Automatic pothole protection
Overload sensing system
Drivable at full height
Bumper rails
Manual storage box
Horn & buzzer
Telematics-ready connector
Auto braking system

Optional features

RCBO
AC power to platform
Overhead anti-collision device
Footswitch
