HOME>PRODUCTS>Telescopic Boom Lift>TB18EJ Plus (TB590EJ Plus)

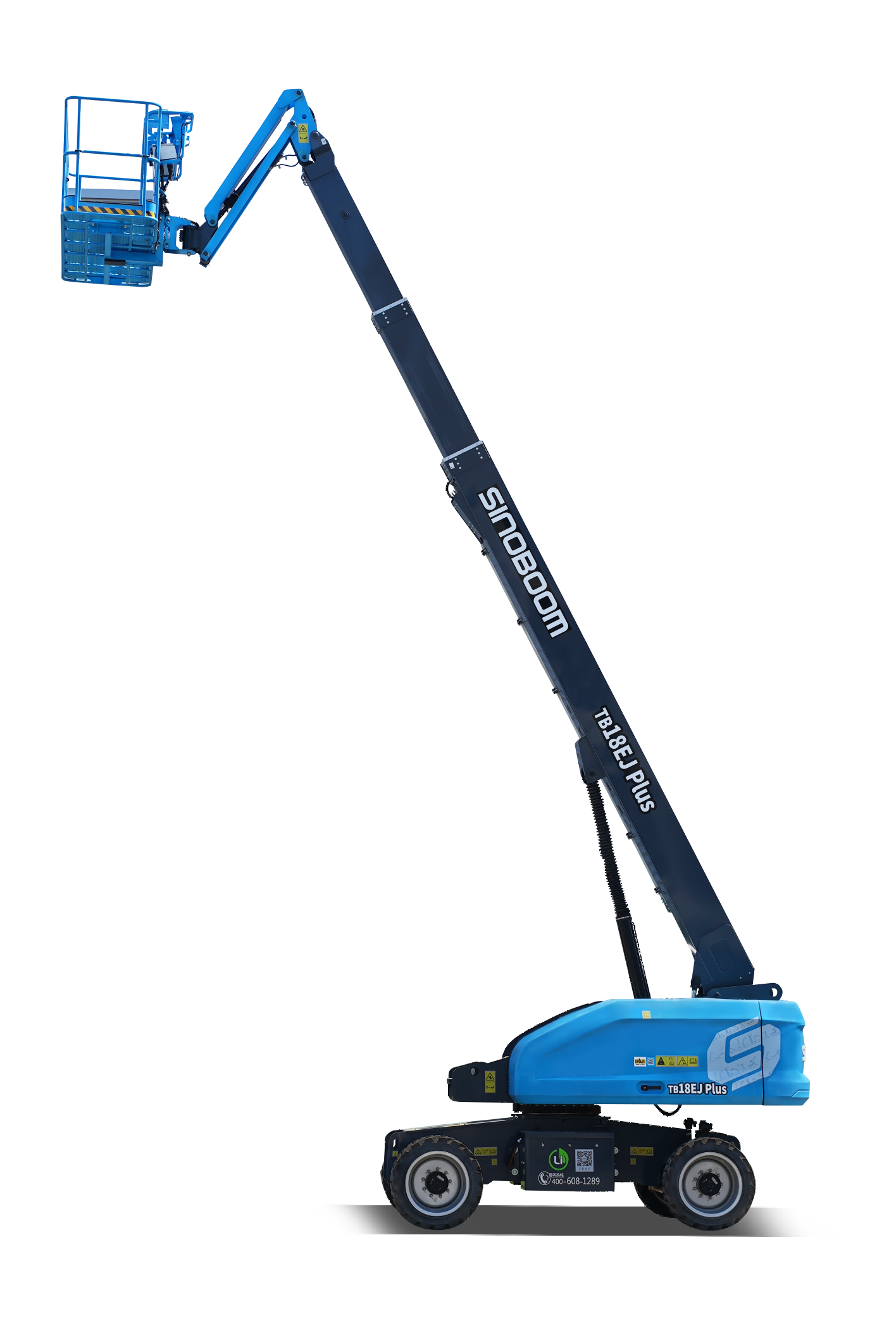

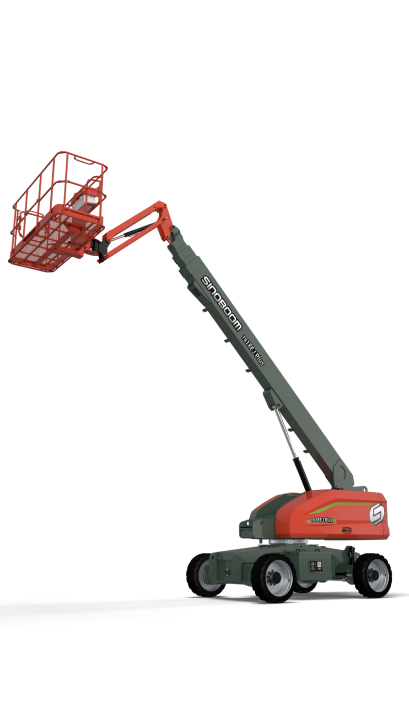

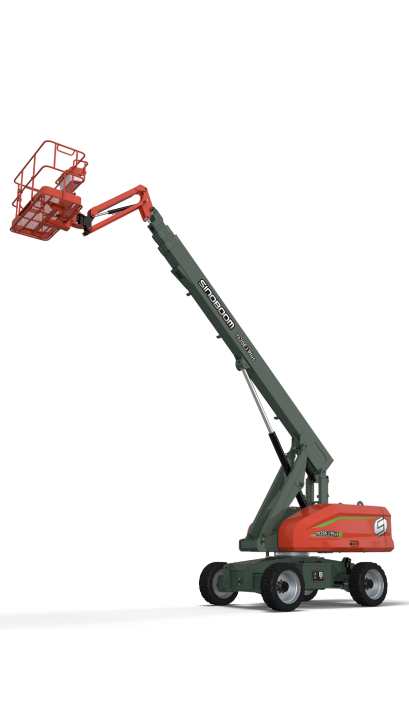

TB18EJ Plus (TB590EJ Plus)

Electric telescopic boom lift
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

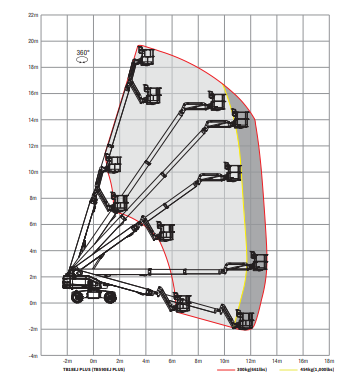

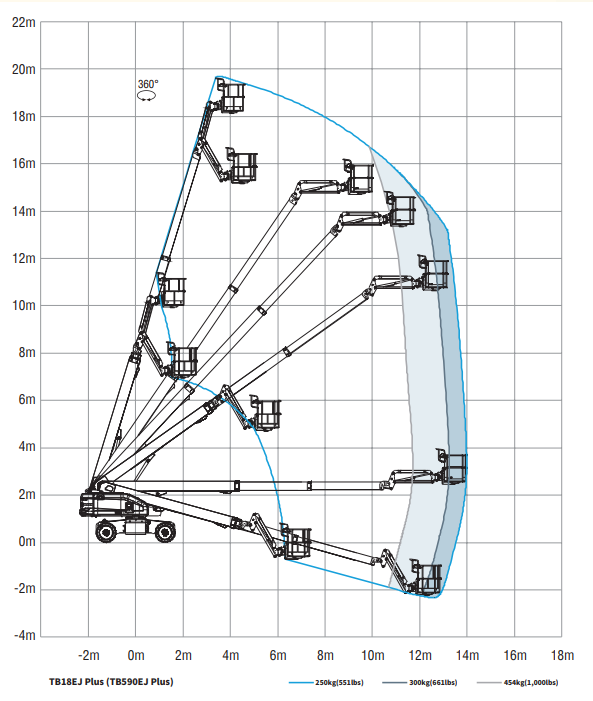

  • Max Platform Height

    18.4 m (60'4")

  • Max Working Height

    20.4 m (66'11")

  • Max Horizontal Extension

    11.7 m/13.2 m/13.9 m (38'5"/43'4"/45'7") (Restricted/Restricted/Unrestricted)

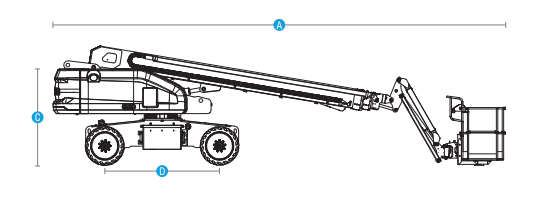

  • [A] Length-Stowed

    9.67 m (31'8")

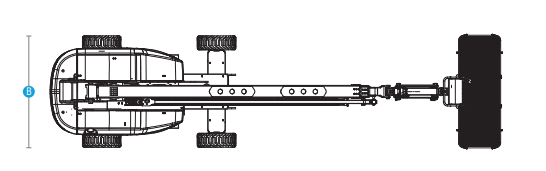

  • [B] Width

    2.42 m (7'11")

  • [C] Height-Stowed

    2.56 m (8'5")

  • [D] Wheelbase

    2.49 m (8'2")

  • Ground Clearance

    0.34 m (1'1")

  • Platform Dimensions(L×W×H)

    2.44 m×0.91 m×1.1 m(8'× 3'× 3' 7")
Performance

  • Platform Capacity
    (Unrestricted)

    250 kg (551 lbs)

  • Platform Capacity
    (restricted)

    454 kg/300 kg(1,000 lbs/661 lbs)

  • Turntable Rotation

    360°/Continuous

  • Platform Rotation

    160°

  • Drive Speed-Stowed

    0～4.8 km/h (0～3 mph)

  • Drive Speed-Raised

    0～1.1 km/h(0～0.68 mph)

  • Gradeability

    35%

  • Turning Radius-Inside

    2.4 m(7 ' 10 ")

  • Turning Radius-Outside

    4.86 m(15'11")

  • Turntable Tailswing

    1.15 m(3'9")

  • Tilt Rating

    5°

  • Max Operating Noise Level

  • Drive×Steer

    4WDx2WS

  • Tyres-solid

    33×12D610 (foam-filled)
    33×12-20 (solid)
Power

  • Battery Specifications

    48 V, 480 Ah (lead acid battery)
    51.2 V, 500 Ah (lithium battery)

  • System voltage

    48 VDC

  • Control voltage

  • Hydraulic Tank Capacity

    120 L (26.4 gal(UK)/31.7 gal(US))


  • Weight

    9,600 kg(21,164 lbs)

  • Standards Compliance

    CE/EAC
Download Brochures
Standard features
  • Active oscillating axle
  • 7-in display screen
  • 4WD x 2WS
  • Proportional control with 3 joysticks
  • Automotive-grade sleeves for all pipes
  • 4-wheel brake
  • Hydraulic platform leveling 160°
  • Platform rotation
  • Weighing system
  • Tilt protection system
  • Max tilt rating to 5°
  • Emergency stop system
  • Flashing beacon
  • Horn & buzzer
  • Emergency lowering system
  • Footswitch
  • Manual storage box
  • Fault diagnosis system
  • Foam-filled non-marking tires
  • 2.44m(8') platform with swinging gate
  • Secondary guarding device
  • Telematics-ready connector
Optional features
  • AC power to the platform
  • Solid tires
  • 1.45m (4'9") platform
  • 1.83m(6') work platform
  • Half mesh (for platform with swinging gate)
  • Platform work light
  • Range Extender
  • Overhead anti-collision device
  • Glazier kit(for platform with swinging gate)
  • Lithium battery
