HOME>PRODUCTS>Telescopic Boom Lift>TB28EJ Plus (TB910EJ Plus)

TB28EJ Plus (TB910EJ Plus)

Electric telescopic boom lift
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

  • Max Platform Height

    27.6m (90'7")

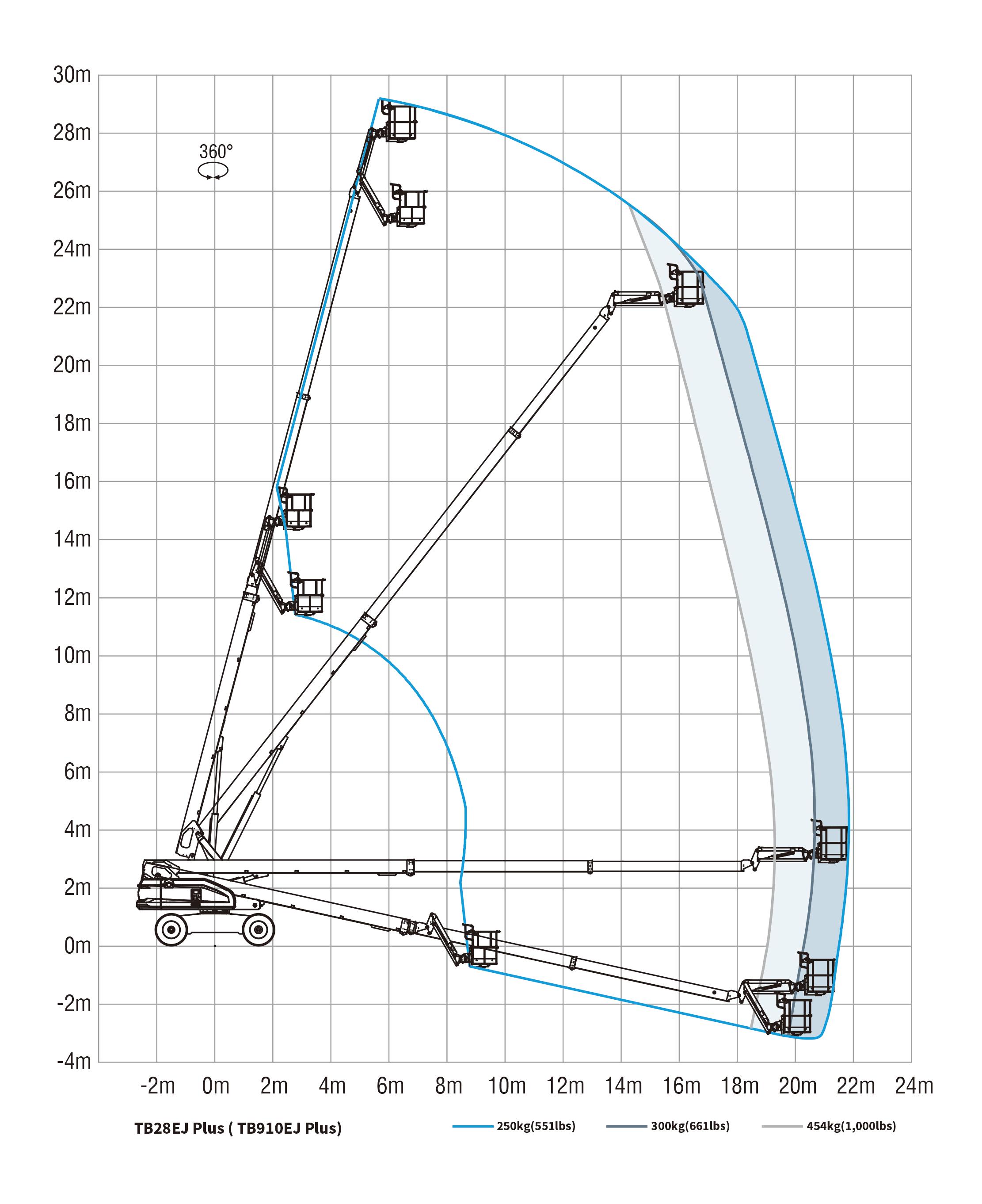

  • Max Working Height

    29.6m (97'1")

  • Max Horizontal Extension

    18.65m (61'2") (Restricted) / 20.6m (67'7") (Unrestricted)

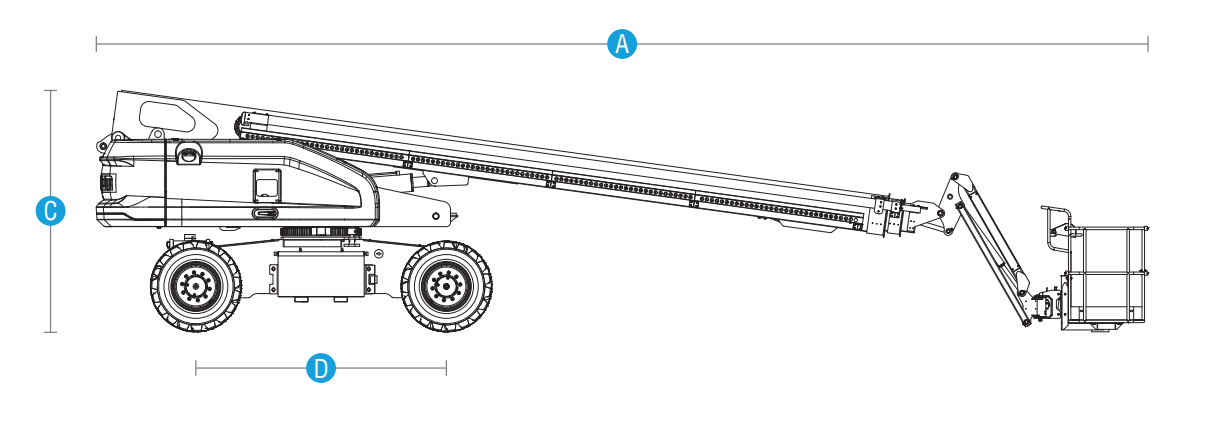

  • [A] Length-Stowed

    12.5m (41')

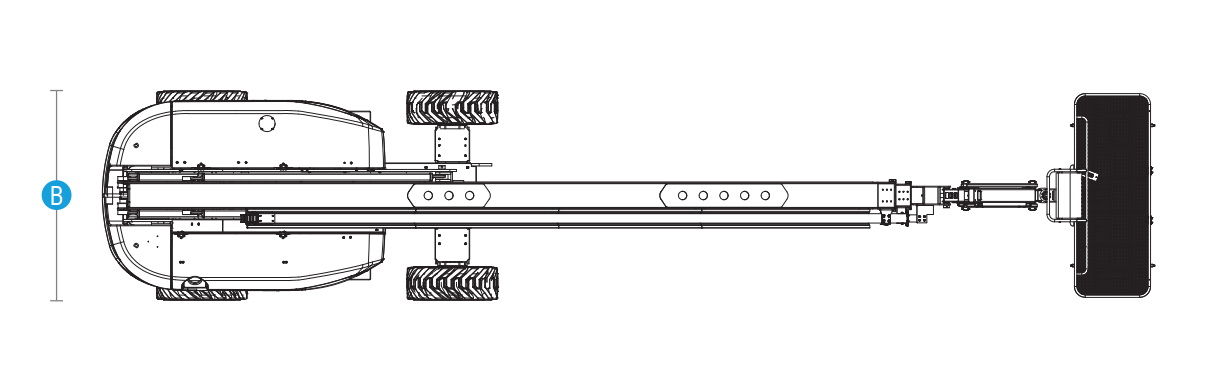

  • [B] Width

    2.49m (8'2")

  • [C] Height-Stowed

    2.88m (9'5")

  • [D] Wheelbase

    3m (9'10")

  • Ground Clearance

    0.36m (1'6")

  • Platform Dimensions(L×W×H)

    2.44m×0.91m×1.1m (8'×3'×3'7")
Performance

  • Platform Capacity
    (Unrestricted)

    300kg (661lbs)

  • Platform Capacity
    (restricted)

    454kg (1,000lbs)

  • Turntable Rotation

    360° continuous

  • Platform Rotation

    160°

  • Drive Speed-Stowed

    0～4.8 km/h (0～3 mph)

  • Drive Speed-Raised

    0～1.1 km/h (0～0.68 mph)

  • Gradeability

    45%

  • Turning Radius-Inside

    3.65m (12')

  • Turning Radius-Outside

    6.91m (22'8")

  • Turntable Tailswing

    1.45m (4'9")

  • Tilt Rating

    5°

  • Max Operating Noise Level

  • Drive×Steer

    4WD×2WS

  • Tyres-solid

    385/65-22.5 (foam filled)
Power

  • Battery Specifications

    80 V, 480 Ah (lead acid battery)
    80 V, 500 Ah (lithium battery)

  • System voltage

    80 VDC

  • Control voltage

    12 VDC

  • Hydraulic Tank Capacity

    180 L (39.6 gal (UK)/47.6 gal (US))


  • Weight

    18,119kg (39,946 lbs)

  • Standards Compliance

    CE/EAC
Download Brochures
Standard features
  • Active oscillating function
  • 7-in display screen
  • 4WD x 2WS
  • Proportional control with 3 joysticks
  • Automotive-grade sleeves for all pipes
  • 4-wheel brake
  • Hydraulic platform leveling
  • 160° Platform rotation
  • Weighing system
  • Tilt protection system
  • Max tilt rating to 5°
  • Emergency stop system
  • Flashing beacon
  • Horn & buzzer
  • Emergency lowering system
  • Footswitch
  • 2.44 m(8') platform
  • Fault diagnosis system
  • Foam-fflled non-marking tires
  • Manual storage box
Optional features
  • AC power to platform
  • Solid tires
  • 1.45 m (4'9") platform
  • 1.83 m(6') work platform
  • 2.44 m(8') platform with swinging gate
  • Platform work light
  • Secondary guarding device
  • Overhead anti-collision device
  • Glazier kit(for platform with swinging gate)
  • Lithium battery
  • Telematics-ready connector
  • Half mesh (for platform with swinging gate)
