TB22EJ Plus (TB740EJ Plus)
Electric telescopic boom lift
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS
Dimensions
-

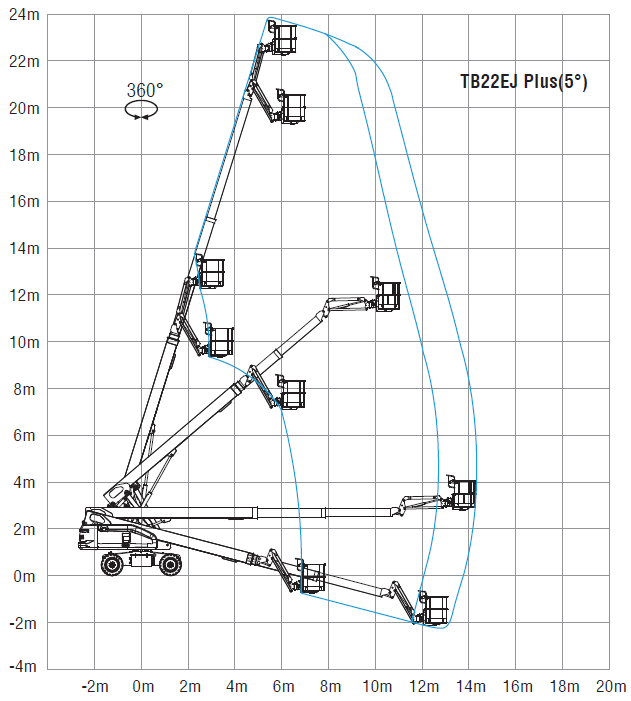

Max Platform Height
22.5m (74') -
Max Working Height
24.5m (80'5") -

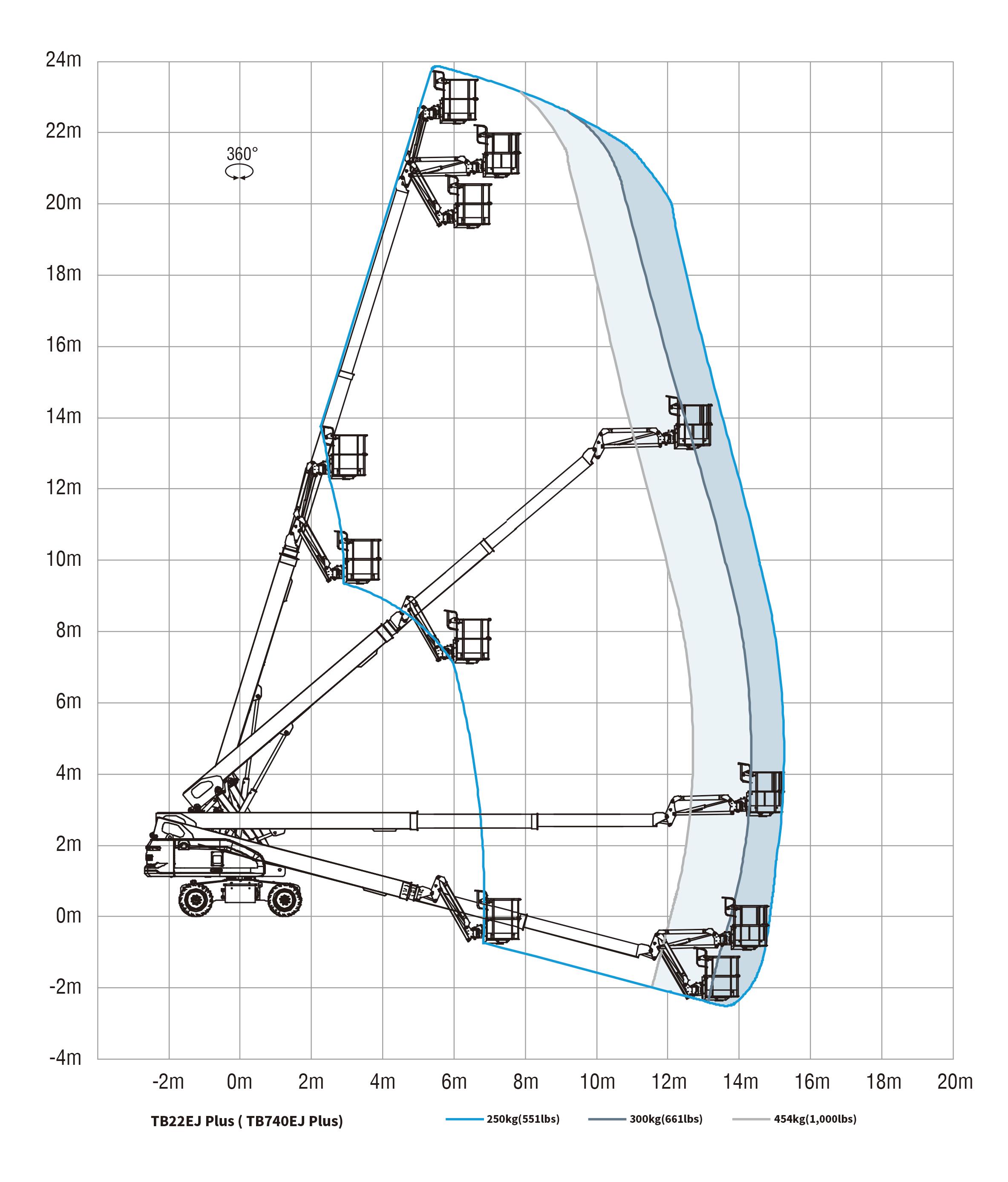

Max Horizontal Extension
12.7m/14.3m/15.2 m (41'8"/46'11"/49'10")(Restricted/Restricted/Unrestricted) -

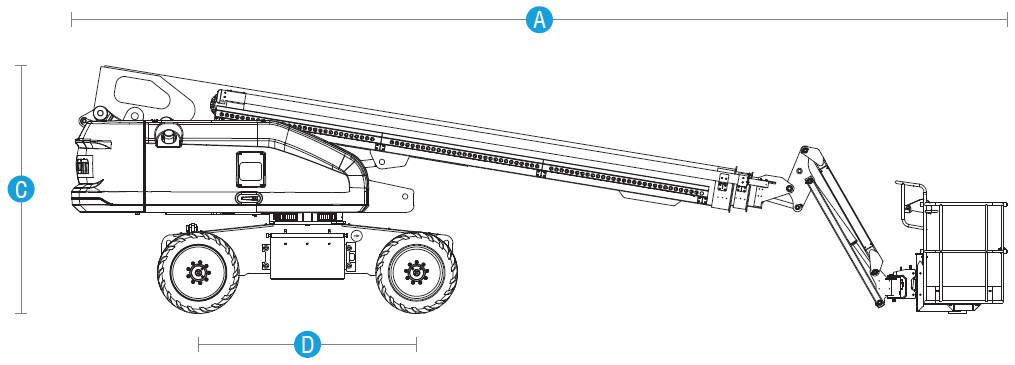

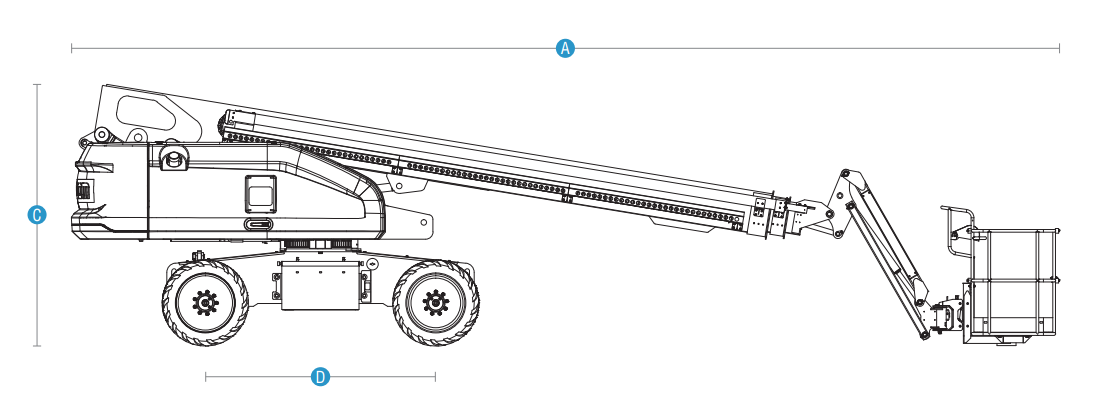

[A] Length-Stowed
10.68m (35') -

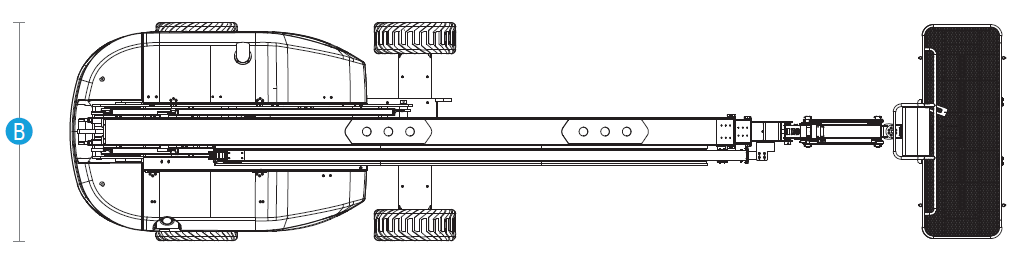

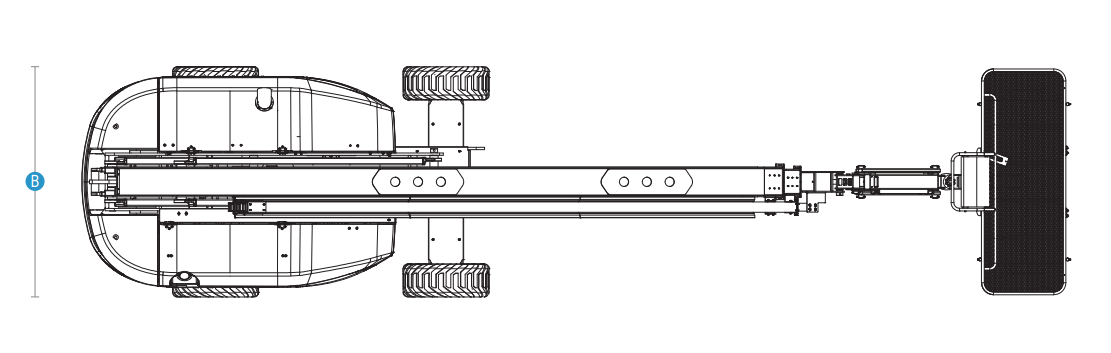

[B] Width
2.49m (8'2") -
[C] Height-Stowed
2.81m (9'3") -
[D] Wheelbase
2.49m (8'2") -
Ground Clearance
0.39m (1'3") -
Platform Dimensions(L×W×H)
2.44m×0.91m×1.1m (8'×3'×3'7")
Performance
-
Platform Capacity
(Unrestricted)250kg (551lbs) -
Platform Capacity
(restricted)454kg/300 kg (1,000lbs/661 lbs) -
Turntable Rotation
360°/Continuous -
Platform Rotation
160° -
Drive Speed-Stowed
0~4.8 km/h (0~3 mph) -
Drive Speed-Raised
0~1.1 km/h (0~0.68 mph) -
Gradeability
35% -
Turning Radius-Inside
2.4m (7'10) -
Turning Radius-Outside
5.55m (18'3") -
Turntable Tailswing
1.45m (4'9") -
Tilt Rating
5° -
Max Operating Noise Level
-
Drive×Steer
4WD×2WS -
Tyres-solid
355/55D625 (foam-filled)
36×14-20 (solid)
Power
-
Battery Specifications
48 V, 480 Ah (lead acid battery)
51.2 V, 500 Ah (lithium battery) -
System voltage
48 VDC -
Control voltage
-
Hydraulic Tank Capacity
180 L (39.6 gal (UK)/47.6 gal (US))
-
Weight
12,260kg (27,029 lbs) -
Standards Compliance
CE/EAC
Standard features
- Active oscillating axle
- 7-in display screen
- 4WD x 2WS
- Proportional control with 3 joysticks
- Automotive-grade sleeves for all pipes
- 4-wheel brake
- Hydraulic platform leveling 160°
- Platform rotation
- Weighing system
- Tilt protection system
- Max tilt rating to 5°
- Emergency stop system
- Flashing beacon
- Horn & buzzer
- Emergency lowering system
- Footswitch
- Manual storage box
- Fault diagnosis system
- Foam-filled non-marking tires
- 2.44m(8') platform with swinging gate
- Secondary guarding device
- Telematics-ready connector
Optional features
- AC power to the platform
- Solid tires
- 1.45m (4'9") platform
- 1.83m(6') work platform
- Half mesh (for platform with swinging gate)
- Platform work light
- Range Extender (for TB20EJ Plus & TB22EJ Plus)
- Overhead anti-collision device
- Glazier kit(for platform with swinging gate)
- Lithium battery
