HOME>PRODUCTS>ARTICULATING BOOM LIFT>AB18EJ PLUS (AB610EJ PLUS)

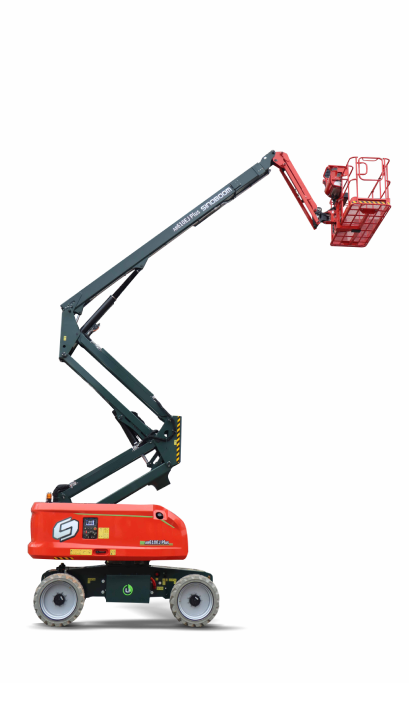

AB18EJ PLUS (AB610EJ PLUS)

ELECTRIC ARTICULATING BOOM LIFTS
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

  • Max Platform Height

    18.58 m (60'11")

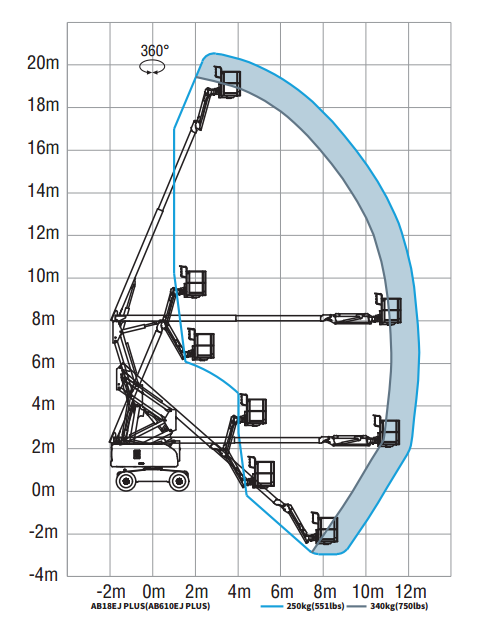

  • Max Working Height

    20.58 m (67'6")

  • Max Horizontal Extension

    12 m/10.7 m (39'4"/35'1")

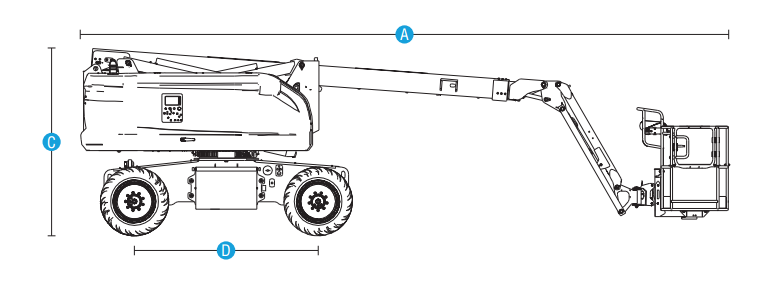

  • [A] Length-Stowed

    8.8 m (28'10")

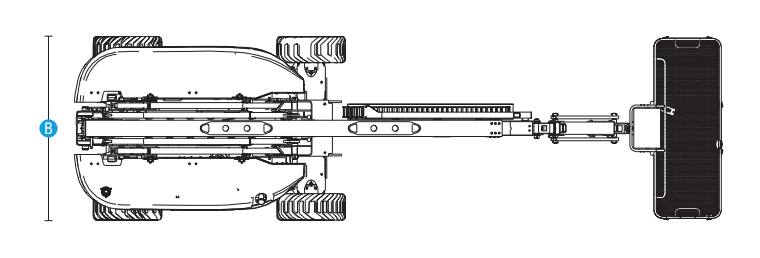

  • [B] Width-Stowed

    2.49 m (8'2")

  • [C] Height-Stowed

    2.54 m (8'4")

  • [D] Wheelbase

    2.49 m (8'2")

  • Ground Clearance

    0.36 m (1'2")

  • Platform Dimensions
    (L×W×H)

    2.44×0.91×1.1 m (8'×3'×3'7")
Performance

  • Platform Capacity
    (Unrestricted/2 Persons)

    250 kg/340 kg (551 lbs/750 lbs)
    (Unrestricted/Restricted)

  • Turntable Rotation

    360° / Continuous

  • Platform Rotation

    180°

  • Drive Speed-Stowed

    0 ～ 4.8 km/h (0 ～ 3 mph)

  • Drive Speed-Raised

    0 ～ 1.1 km/h (0 ～ 0.68 mph)

  • Gradeability

    45%

  • Turning Radius-Inside

    2.4 m / 1.63 m (7'10"/ 5'4")

  • Turning Radius-Outside

    5.55 m / 3.59 m (18'3" / 11'9")

  • Turntable Tailswing

    0.78 m (2'7")

  • Tilt Rating

    5°

  • Drive×Steer

    4 WD×2 WS (4WS)

  • Tyres Spec/Type

    355/55D625 (foam-flled) ｜ 36×14-20 (solid)
Power

  • Batteries

    2×24 V,480 Ah (5 hr) (lead acid battery) ｜ 51.2 V / 500 Ah (lithium battery)

  • Auxiliary Power Unit

    12V DC

  • Hydraulic Tank Capacity

    130 L (28.6 gal (UK)/34.3 gal (US))


  • Weight

    9,600 kg (21,164 lbs) / 9,950 kg (21,936 lbs) / 10,150 kg (22,377 lbs)
    (Lithium batteryⅠ/ Lithium battery Ⅱ-range extender/ lead acid battery)

  • Standards Compliance

    GB/CE/EAC/AS
Download Brochures
Standard features
  • Active oscillating function
  • Platform rotation function
  • Max tilt rating to 5°
  • Automotive-grade sleeves for all pipes
  • Four-wheel brake
  • Flashing Beacon
  • Tilt protection system
  • Weighting system
  • Fault diagnosis system
  • Emergency stop system
  • Emergency lowering system
  • Rear position and travel confirmation
  • Mechanical release for travel braking
  • Horn & buzzer
  • Continuous turntable rotation in 360°
  • 7-in smart screen
  • Proportional control with 3 joysticks
  • Anti-pinch device
  • Lead-acid battery
  • Platform with inward swinging gate(2.44 × 0.91 × 1.1 m)
Optional features
  • AC power line to the platform
  • Solid tire
  • Non-marking tire
  • Range extender
  • Four-wheel steering
  • Working light
  • Anti-collision device
  • Manual storage box
  • Lithium battery
  • Glass bracket (for platform swinging gate)
  • Tool box (for platform swinging gate)
  • Half-height guardrail (for platform swinging gate)
