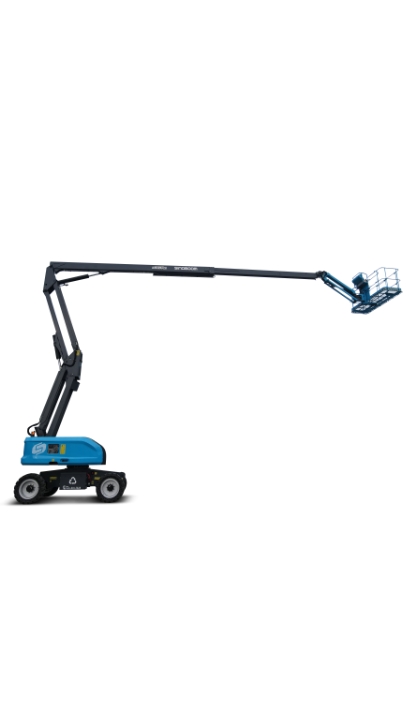

AB22EJ Plus (AB710EJ Plus)

Electric Articulated Boom Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

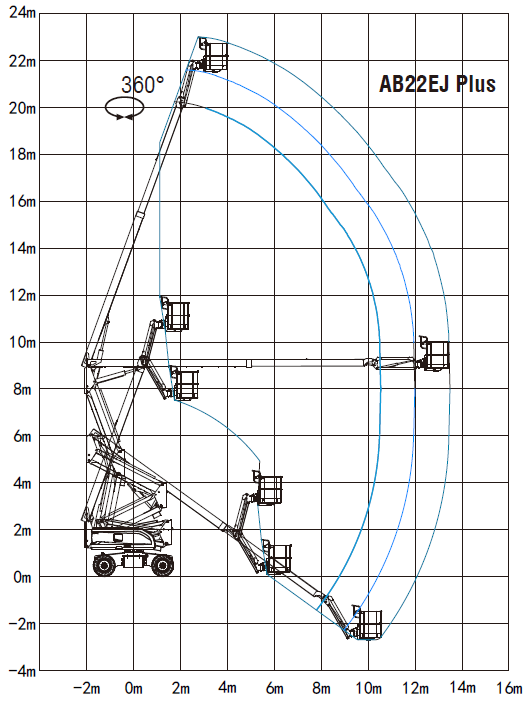

  • Max Platform Height

    21.6m (70'10")

  • Max Working Height

    23.6 m (77'5")

  • Max Horizontal Extension

    13.4 m/11.9m/10.45m (44'/39'/34'3")

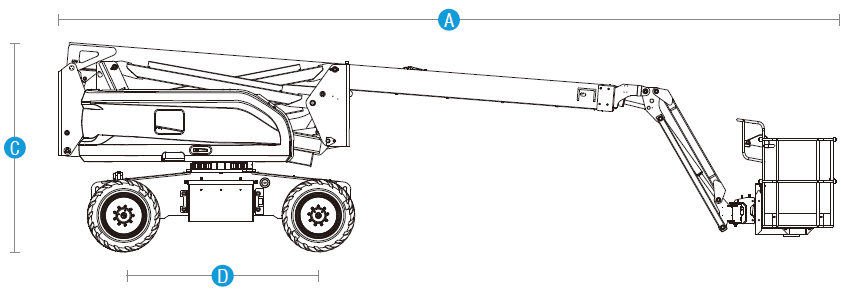

  • [A] Length-Stowed

    9.95m (32'8")

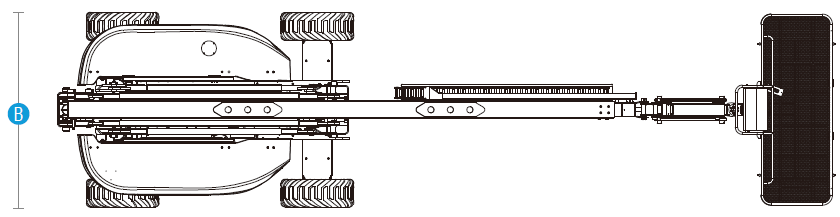

  • [B] Width-Stowed

    2.49 m (8'2")

  • [C] Height-Stowed

    2.68 m (8'10")

  • [D] Wheelbase

    2.49 m (8'2")

  • Ground Clearance

    0.39m (1'3")

  • Platform Dimensions
    (L×W×H)

    2.44x0.91x1.1m (8'x3'x3'7")
Performance

  • Platform Capacity
    (Unrestricted/2 Persons)

    Unrestricted 230 kg (507lbs) / 2 persons; Restricted 340kg (750lbs) / 3 persons; 454kg (1,000lbs) / 3 persons

  • Turntable Rotation

    360°

  • Platform Rotation

    180°

  • Drive Speed-Stowed

    4.8 km/h (3 mph)

  • Drive Speed-Raised

    1.1 km/h (0.68mph)

  • Gradeability

    40％

  • Turning Radius-Inside

    2.4m (7'10")

  • Turning Radius-Outside

    5.55m (18'3")

  • Turntable Tailswing

    0.84 m (2'9")

  • Tilt Rating

    5°

  • Drive×Steer

    4WDx2WS

  • Tyres Spec/Type

    355/55D625 Foam-filled
Power

  • Batteries

    48 V, 480 Ah (lead acid battery)
    48 V 500 Ah (lithium battery)

  • Auxiliary Power Unit

    12V DC

  • Hydraulic Tank Capacity

    130 L (28.6 gal (UK) / 34.3 gal (US))


  • Weight

    10,900kg (24,030lbs)

  • Standards Compliance

    CE/EAC/AS
Download Brochures
Standard features
  • Active oscillating function
  • 5-in display screen
  • 4WD × 2WS
  • Proportional control with 3 joysticks
  • Automotive-grade sleeves for all pipes
  • Emergency lowering system
  • Hydraulic platform leveling
  • Max tilt rating to 5°
  • Weighing system
  • Tilt protection system
  • Horn & buzzer
  • Emergency stop system
  • Flashing beacon
  • Footswitch
  • Fault diagnosis system
  • Foam-filled non-marking tires
  • 2.44 m (8') platform
  • Manual storage box
Optional features
  • AC power to platform
  • Solid tires
  • 1.45m (4'9") platform
  • 1.83 m (6') work platform
  • 1.83 m (8')/2.44 m (8') platform with swinging gate
  • Platform work light
  • Secondary guarding device
  • Overhead anti-collision device
  • Glazier kit (for platform with swinging gate)
  • Telematics-ready connector
  • Half mesh (for platform with swinging gate)
