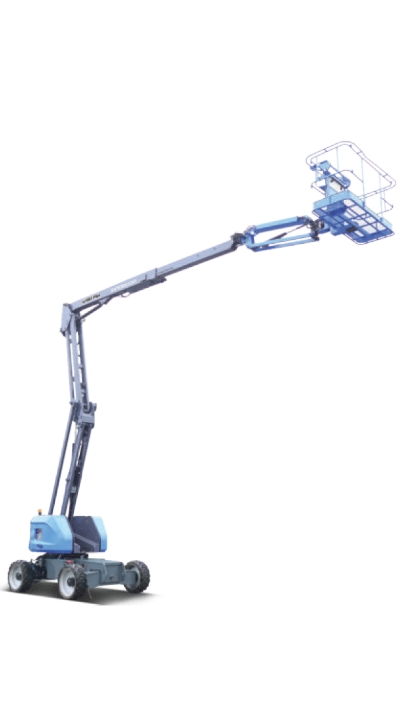

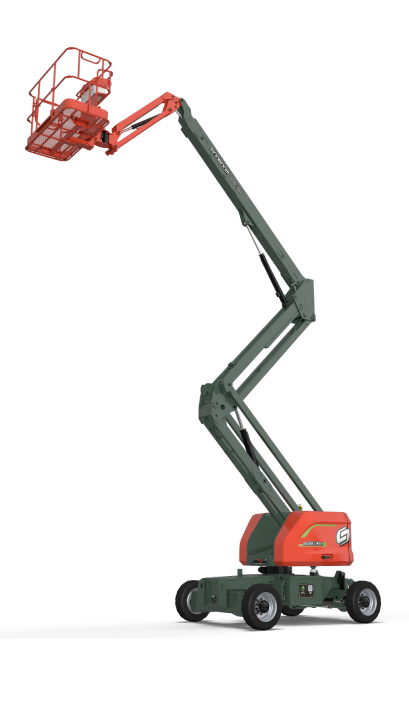

AB16EJ Plus (AB520EJ Plus)

Electric Articulated Boom Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

  • Max Platform Height

    15.8m (51'10")

  • Max Working Height

    17.8m (58'5")

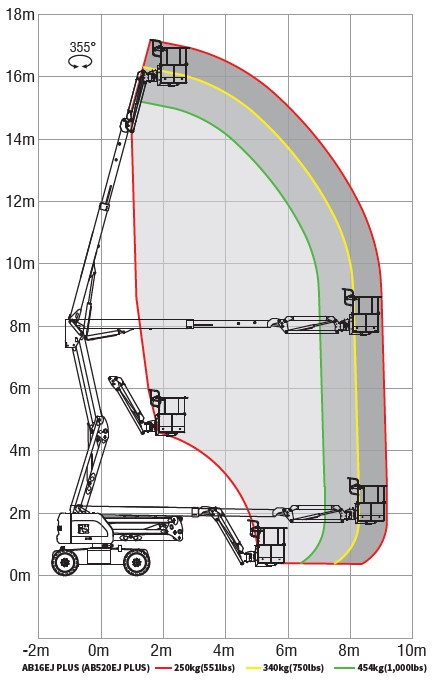

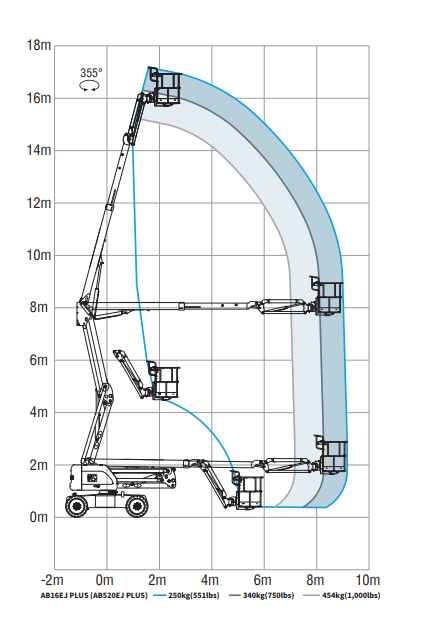

  • Max Horizontal Extension

    9m / 8.1m / 7m (29'6" / 26'7" / 23') (Unrestricted / Restricted / Restricted)

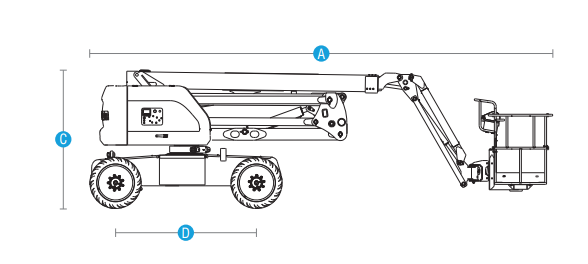

  • [A] Length-Stowed

    7.6m (24'11")

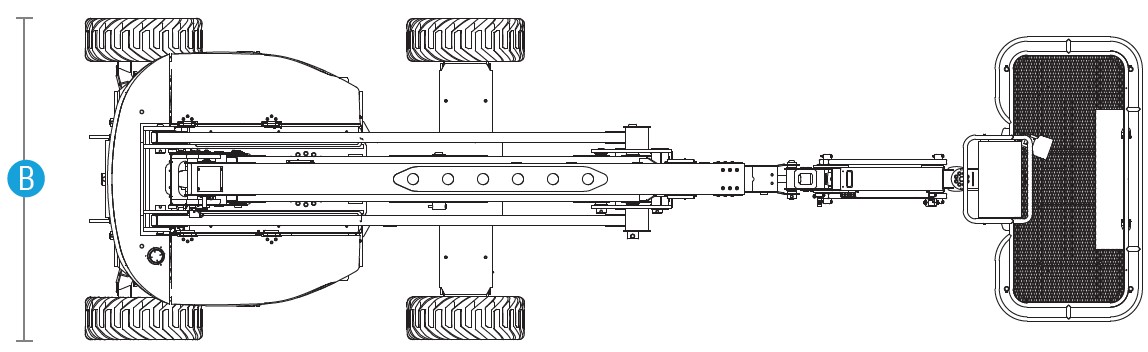

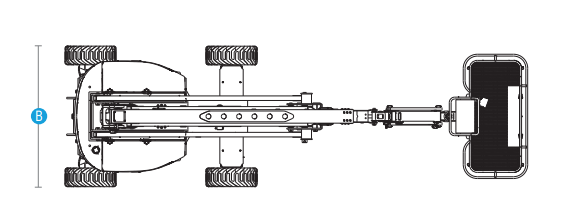

  • [B] Width-Stowed

    2.3m (7'7")

  • [C] Height-Stowed

    2.25m (7'5")

  • [D] Wheelbase

    2.3m (7'7")

  • Ground Clearance

    0.37m (1'3")

  • Platform Dimensions
    (L×W×H)

    1.83m × 0.85m × 1.1m(6' × 2'9" × 3'7")
Performance

  • Platform Capacity
    (Unrestricted/2 Persons)

    250kg / 340kg / 454kg (551lbs / 750lbs / 1,000lbs) (Unrestricted / Restricted / Restricted)

  • Turntable Rotation

    355° non-continuous

  • Platform Rotation

    180°

  • Drive Speed-Stowed

    5.5km/h (3.4mph)

  • Drive Speed-Raised

    1.1km/h (0.68mph)

  • Gradeability

    40％

  • Turning Radius-Inside

    1.8 m (5'11)

  • Turning Radius-Outside

    4.78 (15'8")

  • Turntable Tailswing

    0.3m (12")

  • Tilt Rating

    5°

  • Drive×Steer

    4WD × 2WS

  • Tyres Spec/Type

    33 × 12 D610 (Foam-filled)
Power

  • Batteries

    48V, 390Ah (Lead acid battery)

  • Auxiliary Power Unit

    12V DC

  • Hydraulic Tank Capacity

    64L (14gal (UK) / 17gal (US))


  • Weight

    7,750kg (17,086lbs)

  • Standards Compliance

    CE/ANSI/CSA/EAC
Download Brochures
Standard features
  • Active oscillating function
  • 5-in display screen
  • 4WD × 2WS
  • Proportional control
  • Automotive-grade sleeves for all pipes
  • Emergency lowering system
  • Hydraulic platform leveling
  • Max tilt rating to 5°
  • Weighing system
  • Tilt protection system
  • Horn & buzzer
  • Emergency stop system
  • Flashing beacon
  • Footswitch
  • Fault diagnosis system
  • Foam-filled non-marking tires
  • 1.83m(6') platform
  • Manual storage box
Optional features
  • AC power to platform
  • Solid tires
  • 1.45m (4'9") platform
  • 2.44m(8') platform with swinging gate
  • Platform work light
  • Glazier kit (for platform with swinging gate)
  • Secondary guarding device
  • Overhead anti-collision device
  • Half mesh (for platform with swinging gate)
  • Telematics-ready connector
  • Lithium battery
