HOME>PRODUCTS>ARTICULATING BOOM LIFT>AB25J (AB810J)

AB25J (AB810J)

Engine Powered Articulated Boom Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Product Highlights

  • Powerful Off-Road Performance

    ■ 40%-45% gradeability, proprietary patented technology for anti-skid
    control to ensure a strong off-road capability

  • Smart maintenance

    ■ Smart 7" screen display, fault and status information display for easy
    viewing of machine status and fault diagnosis, parameters and settings

  • Precision performance

    ■ 3 joysticks with variable proportional control, boom swing, boom
    extension, turntable rotation and walking speed, smooth start and stop
    motion, accuracy in reaching the operation target

  • Safe and reliable

    ■ Secure and reliable folding arm, luffing operation with hydraulic
    interlocking, and hydraulic-connection body leveling
    ■ Simple and reliable hydraulic platform leveling

  • Operating efficiency

    ■ The working platform can be lifted and lowered to any position without
    the need to operate the folding arm.
    ■ Quick platform ascent and descent
Dimensions

  • Max Platform Height

    24.6m (80'8.5")

  • Max Working Height

    26.6m (87'3")

  • Max Horizontal Extension

    16.1m (52'10")

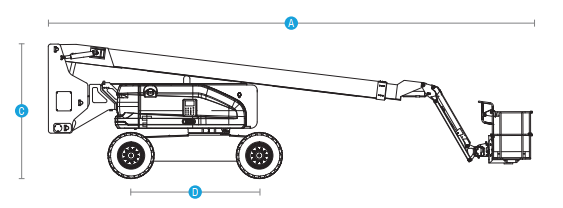

  • [A] Length-Stowed

    11.51m (37'9")

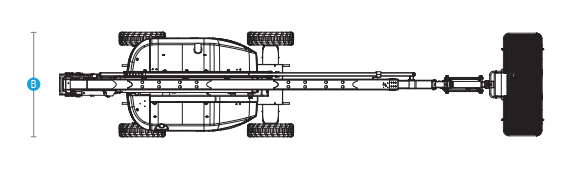

  • [B] Width-Stowed

    2.49m (8'2")

  • [C] Height-Stowed

    3.2m (10'6")

  • [D] Wheelbase

    3.05m (10')

  • Ground Clearance

    0.39m (15.4")

  • Platform Dimensions(L×W×H)

    2.44×0.91×1.1 m (8'×3'×3'7")
Performance

  • Platform Capacity
    (Unrestricted/2 Persons)

    230kg (507lbs)

  • Turntable Rotation

    360° continuous

  • Platform Rotation

    160°

  • Drive Speed-Stowed

    4.4km/h (2.7mph)

  • Drive Speed-Raised

    1.1km/h(0.7mph)

  • Gradeability

    30% (2WD)/45% (4WD)

  • Turning Radius-Inside

    3.0m (9'10")

  • Turning Radius-Outside

    6.33m (20'9")

  • Turntable Tailswing

    1m (3'3")

  • Tilt Rating

    5°

  • Max Operating Noise Level

  • Drive×Steer

    4WD × 2WS

  • Tyres Spec/Type

    385/65-22.5 (Foam-filled)
Power

  • Power source(optional)

    54 kW/2400 rpm/QSF2.8t3TC72/ Cummins /China T3, EU Stage 3A

  • Auxiliary Power Unit

    12V DC

  • Fuel Tank Capacity-Diesel

    140L（30.8 gal (UK) / 37.2 gal (US)）

  • Hydraulic Tank Capacity

    180L (39.6 gal (UK) / 47.6 gal (US))


  • Weight

    17,150 kg (37,809lbs) 4WD

  • Standards Compliance

    CE/AS/EAC
Download Brochures
Standard features
  • Oscillating function
  • 7-in display screen
  • 4WD × 2WS
  • Proportional control with 3 joysticks
  • Automotive-grade sleeves for all pipes
  • Secondary guarding device
  • Hydraulic platform leveling
  • AC power to platform
  • Weighing system
  • Tilt protection system
  • Max tilt rating to 5°
  • Emergency stop system
  • Flashing beacon
  • Horn & buzzer
  • Emergency lowering system
  • Footswitch
  • 1.83 m (6') platform(AB18J)/2.44 m(8') platform(AB25J)
  • Telematics-ready connector
  • Fault diagnosis system
  • Foam-filled tires(AB18J)/Solid tires(AB25J)
  • Manual storage box
Optional features
  • Foam-filled non-marking tires
  • Solid non-marking tires
  • Solid tires
  • 2.44 m (8') platform with swinging gate
  • 1.83 m (6') platform with swinging gate
  • 1.45 m (4'9") platform
  • Overhead anti-collision device
  • Glazier kit (for platform with swinging gate)
  • Half mesh (for platform with swinging gate)
  • Platform work light
