HOME>PRODUCTS>Telescopic Boom Lift>TB20J Plus (TB660J Plus)

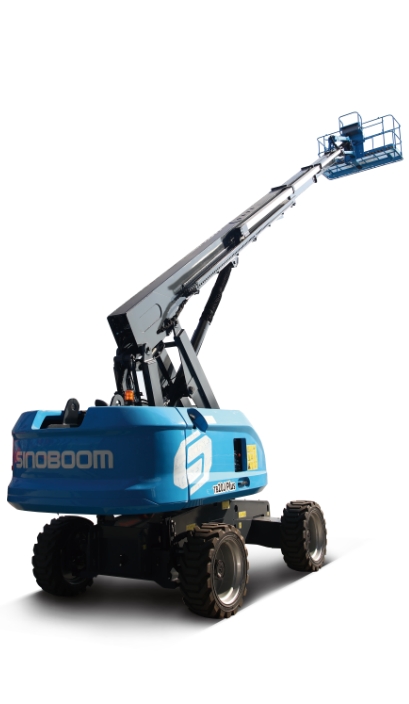

TB20J Plus (TB660J Plus)

Engine Powered Telescopic Boom Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

  • Max Platform Height

    20 m (65'7")

  • Max Working Height

    22m (72'2")

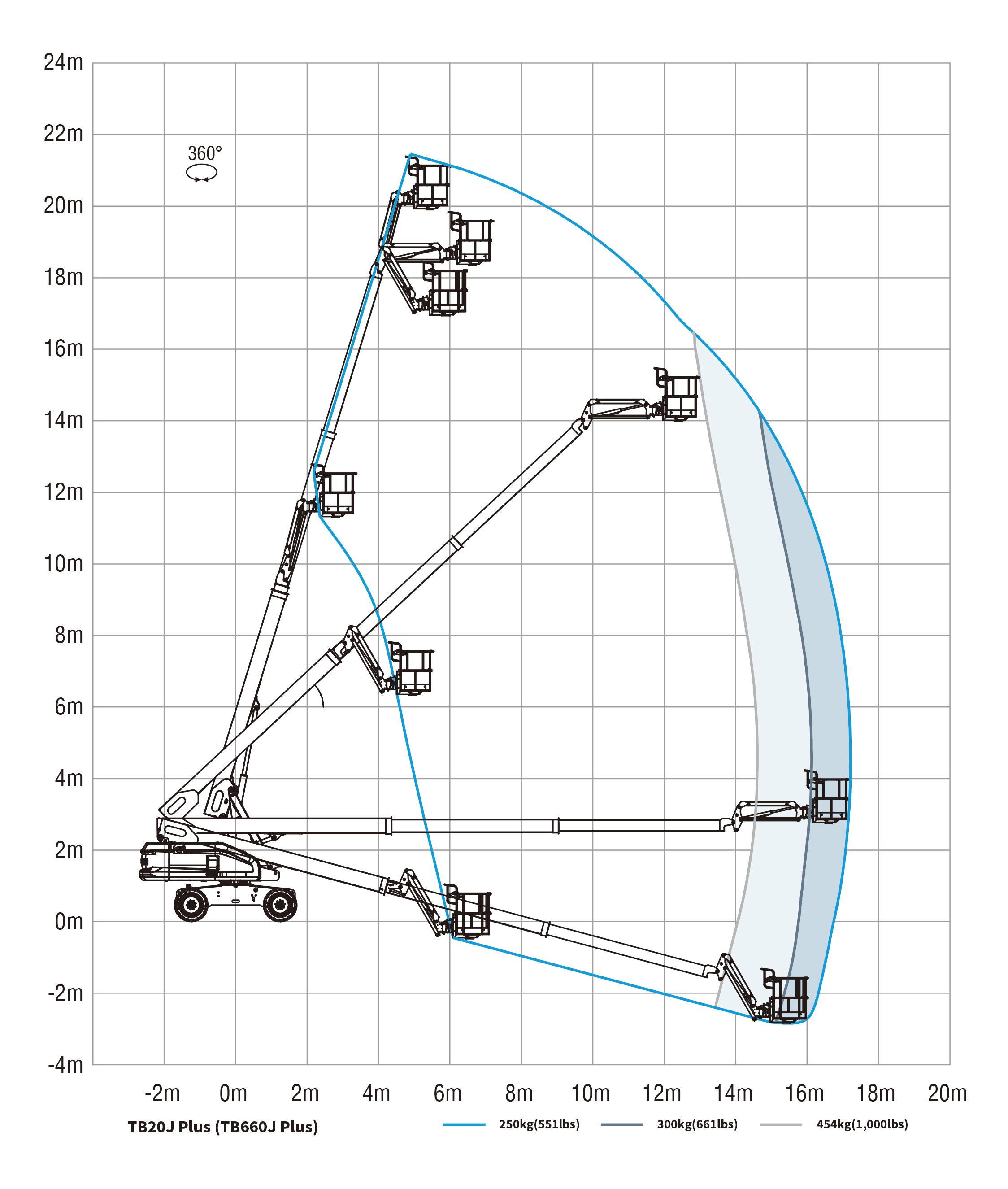

  • Max Horizontal Extension

    14.6 m/16.1 m/17.2 m (47'11"/52'10"/56'5")

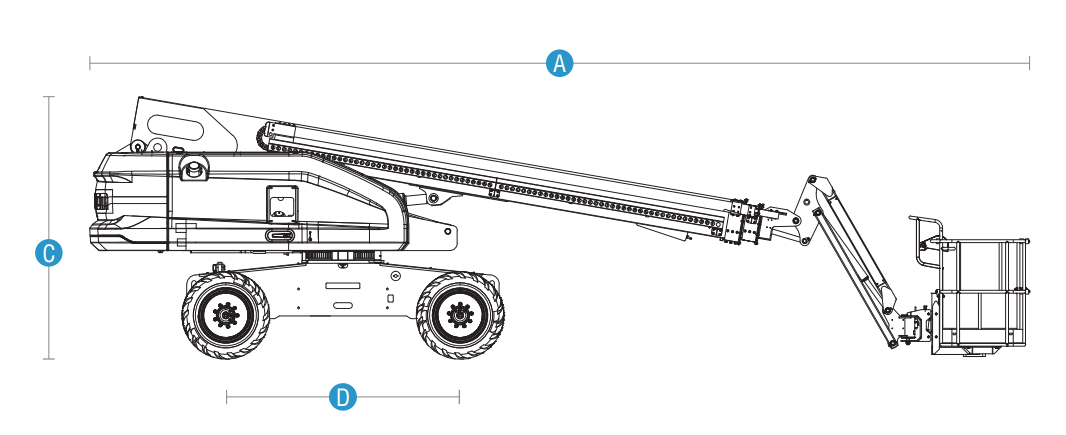

  • [A] Length-Stowed

    9.99m (32'9")

  • [B] Width

    2.49m (8'2")

  • [C] Height-Stowed

    2.79m (9'2")

  • [D] Wheelbase

    2.49m (8'2")

  • Ground Clearance

    0.46m (1'6")

  • Platform Dimensions(L×W×H)

    2.44×0.91×1.1m (8'×3'×3'7")
Performance

  • Platform Capacity
    (Unrestricted)

    250kg (551lbs)

  • Platform Capacity
    (restricted)

    454 kg/300 kg (1,000lbs/661 lbs)

  • Turntable Rotation

    360°/Continuous

  • Platform Rotation

    160°

  • Drive Speed-Stowed

    0～4.8 km/h (0～3 mph)

  • Drive Speed-Raised

    0～1.1 km/h （0～0.68 mph）

  • Gradeability

    45%

  • Turning Radius-Inside

    2.4m (7'10")

  • Turning Radius-Outside

    5.55m (18'3")

  • Turntable Tailswing

    1.45m (4'9")

  • Tilt Rating

    5°

  • Max Operating Noise Level

  • Drive×Steer

    4WD×2WS

  • Tyres-solid

    355/55D625 (foam-filled)
    36×14-20 (solid)
Power

  • Power Source (Optional)

    43 kW/2500 rpm/ QSF2.8t3NA60/Cummins/China T3
    36.4 kW/2600 rpm/ D2.9 L4/Deutz/EU stage V、EPA Tier 4F
    36.8 kW/ 2200 rpm/ YCF3050-T420-3040G1/Yuchai/China T4

  • Auxiliary Power Unit

    12V DC

  • Fuel Tank Capacity-Diesel

    150 L (33.0 gal(UK)/39.6 gal(US))

  • Hydraulic Tank Capacity

    180L (39.6 gal (UK) / 47.6 gal (US))


  • Weight

    11,900 kg (26,235 lbs)

  • Standards Compliance

    CE/ANSI/CSA/EAC
Download Brochures
Standard features
  • Active oscillating function
  • 7-in display screen
  • 4WD × 2WS
  • Proportional control with 3 joysticks
  • Automotive-grade sleeves for all pipes
  • Weighing system
  • Hydraulic platform leveling
  • AC power to platform
  • Emergency stop system
  • Tilt protection system
  • Max tilt rating to 5°
  • Emergency lowering system
  • Flashing beacon
  • Horn & buzzer
  • Fault diagnosis system
  • Footswitch
  • 2.44 m(8') platform with swinging gate
  • Foam-filled tires
  • Manual storage box
  • Telematics-ready connector
  • Secondary guarding device
Optional features
  • Foam-filled non-marking tires
  • Solid tires/Solid non-marking tires
  • 1.45 m (4'9") platform
  • 1.83 m(6') work platform
  • 1.83 m(6') platform with swinging gate
  • Oil cooler
  • Glazier kit (for platform with swinging gate)
  • Half mesh (for platform with swinging gate)
  • Platform work light
  • Overhead anti-collision device
  • Hydraulic generator
