HOME>PRODUCTS>Telescopic Boom Lift>TB26J Plus (TB860J Plus)

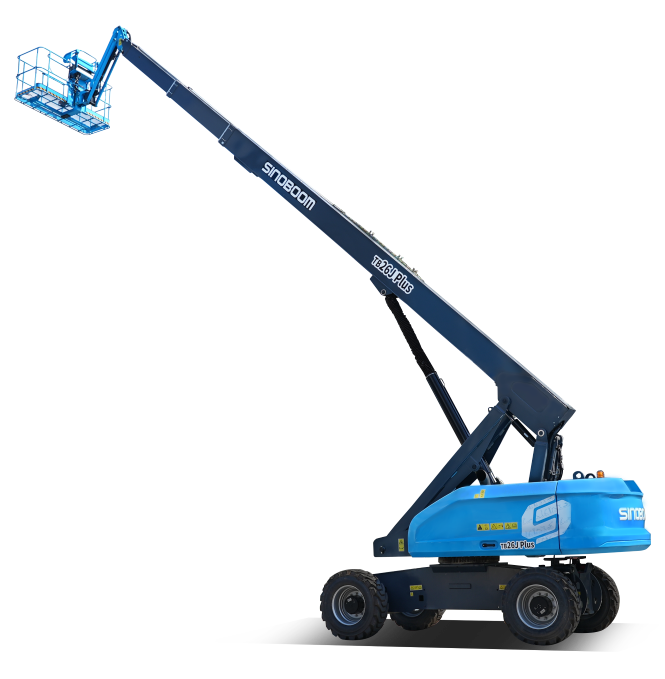

TB26J Plus (TB860J Plus)

Engine Powered Telescopic Boom Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Product Highlights

  • High Capacity

    ■ Plus series boom lifts holdsup to 1,000 lbs (restricted)/661 lbs(restricted)/551lbs(unrestricted) platform capacity allowing you to carry up to 3 occupants plus material and tools to getyour job done easily

  • Oscillating Function

    ■ Both the active and inactive states have an oscillating function, allowing work to be perfomed on inclines and uneven ground

  • Intelligent Maintenance

    ■ Industry leading 7" screen displays faults and statusinformation, foreasy reference, reducing service technician assistance. Workers can complete tasks under the remote guidance of qualified service technicians.Convenient for fleet managers to quickly access live machine and maintenance information

  • Precision Performance

    ■ The upper control box is equipped with 3 full-proportional handles for gradual control of boom lifting, telescoping, turntable rotation and driving speed. Operate with smooth starting and stopping and precision approach to your worksite target

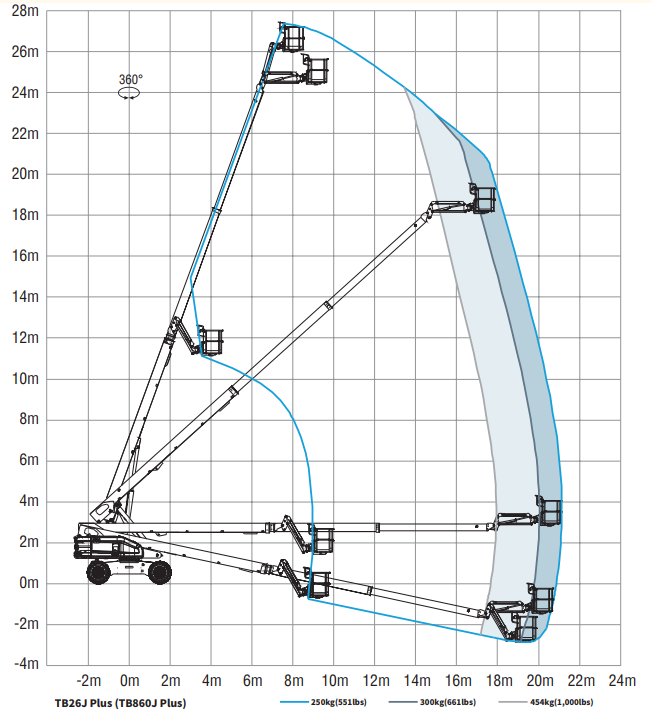

Dimensions

  • Max Platform Height

    26.3m (86'3")

  • Max Working Height

    28.3m (92'10")

  • Max Horizontal Extension

    17.9m (58'9") (Restricted) / 20m (65'7") (Restricted) / 21m (68'11") (Unrestricted)

  • [A] Length-Stowed

    12.5m (41')

  • [B] Width

    2.49m (8'2")

  • [C] Height-Stowed

    2.88 m (9'5")

  • [D] Wheelbase

    3m (9'10")

  • Ground Clearance

    0.42 m (1'4.5")

  • Platform Dimensions(L×W×H)

    2.44×0.91×1.1m (8'×3'×3'7")
Performance

  • Platform Capacity
    (Unrestricted)

    250kg (551lbs)

  • Platform Capacity
    (restricted)

    454 kg/300 kg (1,000lbs/661 lbs)

  • Turntable Rotation

    360°/Continuous

  • Platform Rotation

    160°

  • Drive Speed-Stowed

    0～4.8 km/h (0～3 mph)

  • Drive Speed-Raised

    0～1.1 km/h (0～0.68 mph)

  • Gradeability

    45%

  • Turning Radius-Inside

    3.65m (12')

  • Turning Radius-Outside

    6.91m (22'8")

  • Turntable Tailswing

    1.45m (4'9")

  • Tilt Rating

    5°

  • Max Operating Noise Level

  • Drive×Steer

    4WD×2WS

  • Tyres-solid

    385/65D22.5 (Foam-filled)
Power

  • Power Source (Optional)

    54 KW /2400 rpm/ QSF2.8t3TC72/Cummins/China T3、EU stage Ⅲ
    55.4 KW /2600 rpm/ TD2.9 L4/Deutz/EU stage V、EPA Tier 4F
    36.8 Kw/ 2200 rpm/ YCF3050-T420-3040G1/Yuchai/China T4
    36.5 kW / 2400 rpm/ YCF3050-T307-30D6G2 / Yuchai/China T3

  • Auxiliary Power Unit

    12V DC

  • Fuel Tank Capacity-Diesel

    150L(33.0 gal(UK)/39.6 gal(US))

  • Hydraulic Tank Capacity

    180L (39.6gal (UK) / 47.6gal (US))


  • Weight

    17,000kg (37,479lbs)

  • Standards Compliance

    CE/ANSI/CSA/EAC
Download Brochures
Standard features
  • Active oscillating function
  • 7-in display screen
  • 4WD × 2WS
  • Proportional control with 3 joysticks
  • Automotive-grade sleeves for all pipes
  • Weighing system
  • Hydraulic platform leveling
  • AC power to platform
  • Emergency stop system
  • Tilt protection system
  • Max tilt rating to 5°
  • Emergency lowering system
  • Flashing beacon
  • Horn & buzzer
  • Fault diagnosis system
  • Footswitch
  • 2.44 m(8') platform
  • Foam-filled non-marking tires
  • Manual storage box
  • Telematics-ready connector
  • Secondary guarding device
Optional features
  • Foam-filled non-marking tires
  • Solid tires/Solid non-marking tires
  • Platform work light
  • Overhead anti-collision device
  • 1.83 m(6') /2.44 m(8') platform with swinging gate
  • Half mesh (For platform with swinging gate)
  • Glazier kit(For platform with swinging gate)
  • Hydraulic generator
  • Cold-weather heating package
  • Anemometer
