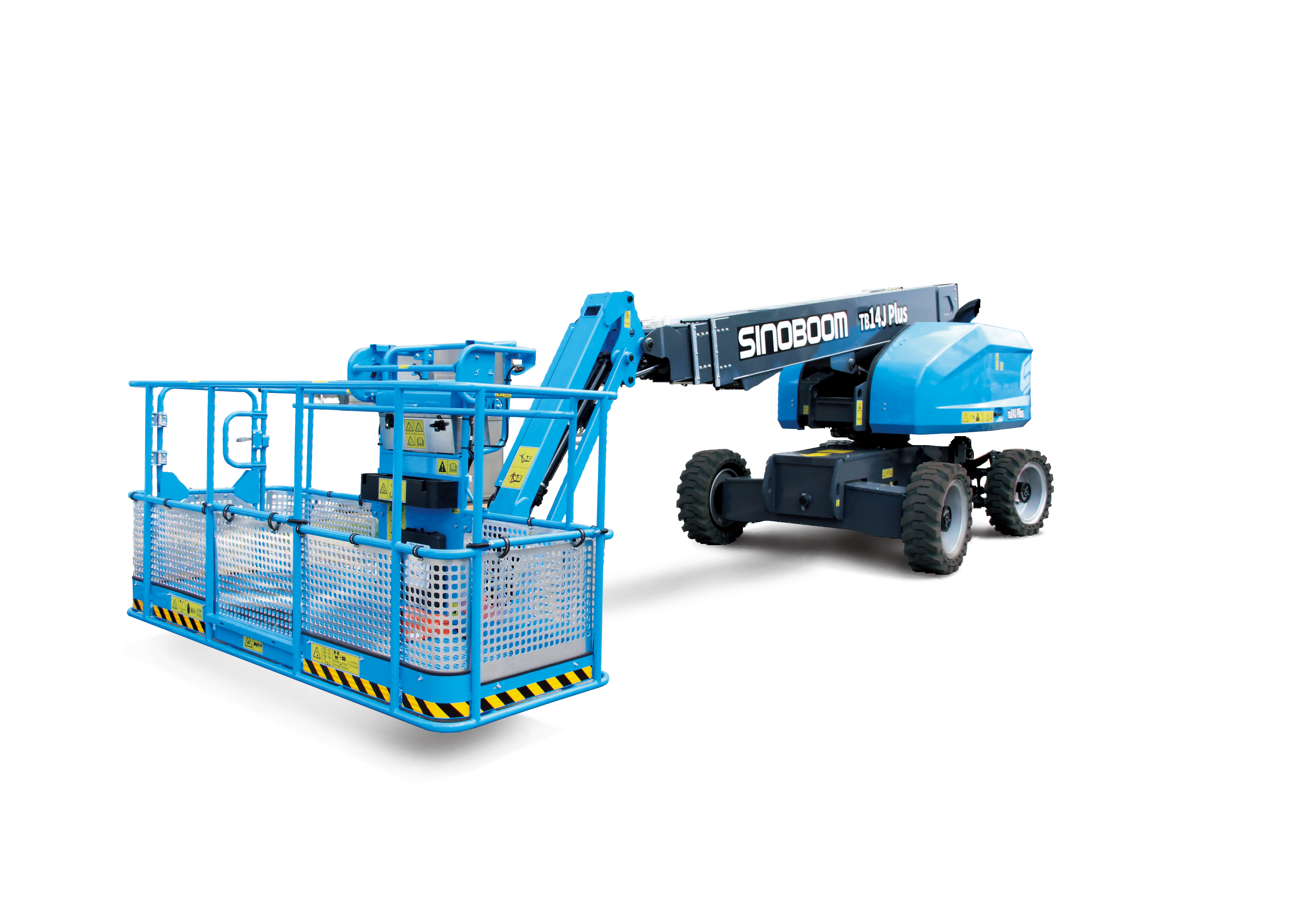

TB14J Plus (TB460J Plus)
Engine Powered Telescopic Boom Lifts
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS
Dimensions
-
Max Platform Height
14.1 m (46'3'') -
Max Working Height
16.1 m (52'10'') -
Max Horizontal Extension
9.1 m / 10 m / 10.9m (29'10''/32'10''/35'9'') -

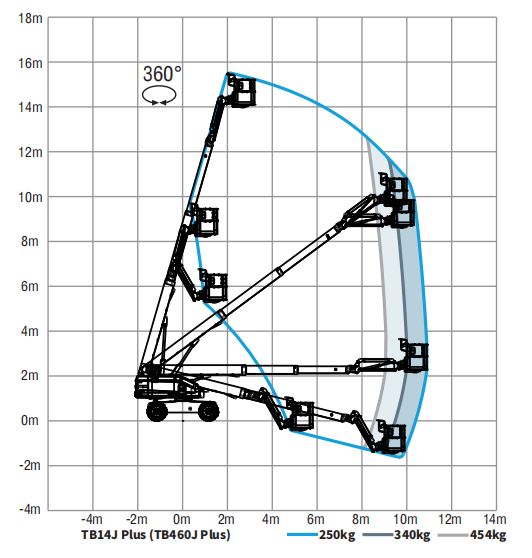

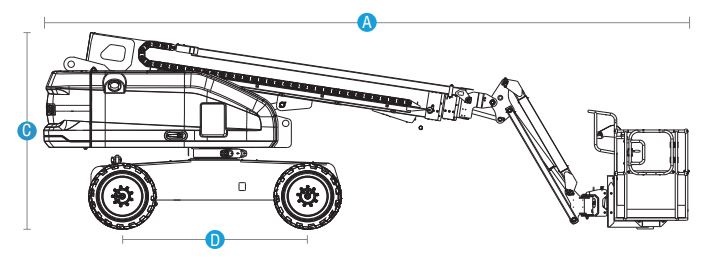

[A] Length-Stowed
7.99 m (26'3'') -

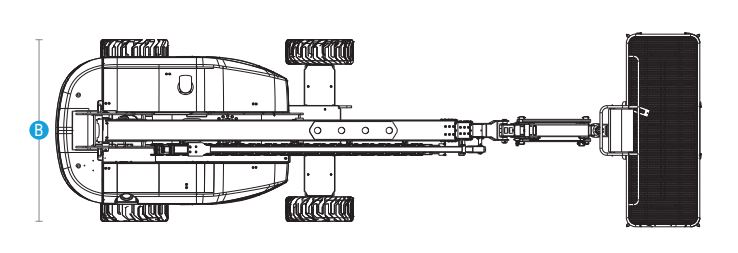

[B] Width
2.3 m (7'6") -
[C] Height-Stowed
2.49 m (8'2") -
[D] Wheelbase
2.3 m (7'6") -
Ground Clearance
0.37 m (1'3") -
Platform Dimensions(L×W×H)
2.44×0.91×1.1m (8'×3'×3'7")
Performance
-
Platform Capacity
(Unrestricted)340 kg (749 lbs) / 250 kg (551 lbs) -
Platform Capacity
(restricted)454 kg (1,000 lbs) -
Turntable Rotation
360° continuous -
Platform Rotation
160° -
Drive Speed-Stowed
0~4.8 km/h (0~3 mph) -
Drive Speed-Raised
0~0.8 km/h (0~0.5 mph) -
Gradeability
40% -
Turning Radius-Inside
1.82 m (6') -
Turning Radius-Outside
4.78 m(15'8") -
Turntable Tailswing
0.98 m( 3'3") -
Tilt Rating
5° -
Max Operating Noise Level
-
Drive×Steer
4WD×2WS -
Tyres-solid
33×12D610 (Foam filled)
Power
-
Power Source (Optional)
18.4 kW/3000 rpm/ 3TNV80F-NXDSI /Yanmar/EU Stage V/EPA Tier 4F 18.5 kW/3000 rpm/ D1105-E4B-EU-X1/Kubota/EU Stage V/EPA Tier 4F -
Auxiliary Power Unit
12V DC -
Fuel Tank Capacity-Diesel
100L (22.0 gal (UK) / 26.4 gal (US)) -
Hydraulic Tank Capacity
120L (26.4 gal (UK) / 31.7 gal (US))
-
Weight
7,300 kg (16,093 lbs) -
Standards Compliance
CE/ANSI/CSA/AS
Standard features
- Active oscillating function
- 7-in display screen
- 4WD × 2WS
- Proportional control with 3 joysticks
- Automotive-grade sleeves for all pipes
- Weighing system
- Hydraulic platform leveling
- AC power to platform
- Emergency stop system
- Tilt protection system
- Max tilt rating to 5°
- Emergency lowering system
- Flashing beacon
- Horn & buzzer
- Fault diagnosis system
- Footswitch
- 2.44 m(8') platform with swinging gate
- Telematics-ready connector
- Manual storage box
- Secondary guarding device
- Foam-filled tires
Optional features
- Solid tires/Solid non-marking tires
- Foam-filled non-marking tires
- 1.45 m (4'9") platform
- 1.83 m(6') work platform
- Half mesh (for platform with swinging gate)
- Glazier kit (for platform with swinging gate)
- AC generator
- Overhead anti-collision device
- Platform work light
