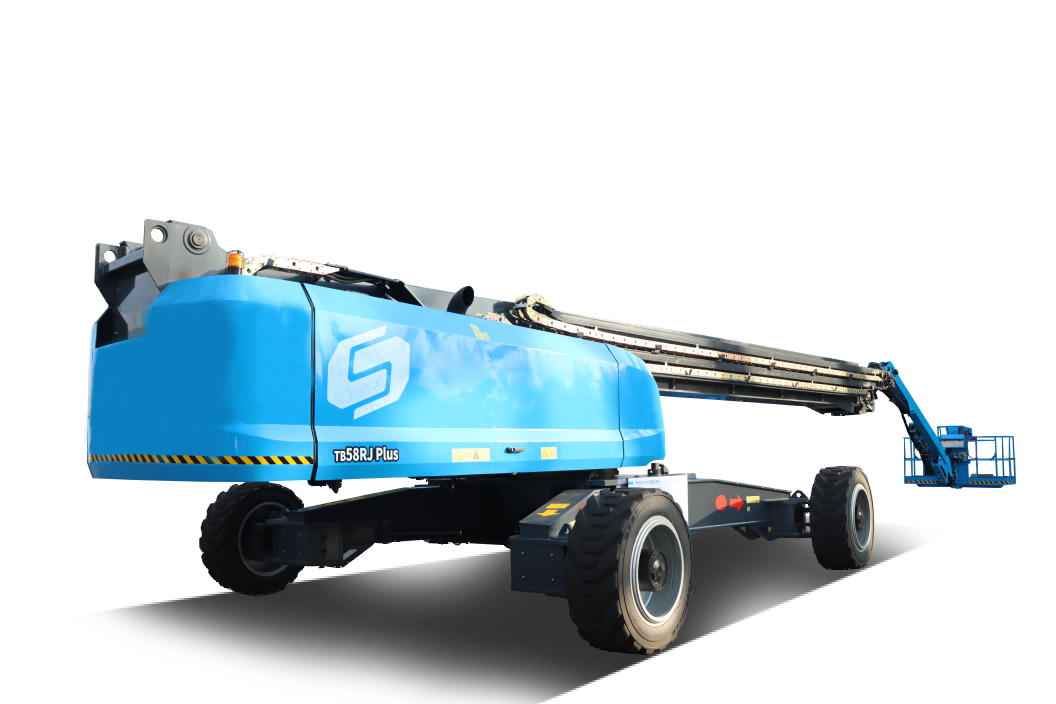

TB58RJ Plus (TB1900RJ Plus)

Engine Powered Telescopic Boom Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Product Highlights

  • Precision Performance

    ■ Platform control unit equips 3 joysticks featuring proportional control, which is easy to operate and reach the work targets

  • Intelligent Maintenance

    ■ Industry leading 7" screen displays faults and status information, for easy reference, reducing service technician assistance. Workers can complete tasks
    under the remote guidance of qualified service technicians. Convenient for fleet managers to quickly access live machine and maintenance information

  • Safe and Reliable

    ■ Machine equips safety Rexroth controller with dual backup CPU and compliant with ISO 13849, high performance level d, combined with dual channel sensors offering an extremely safe redundancy
Dimensions

  • Max Platform Height

    57.9 m (189'11.5")

  • Max Working Height

    59.9m (196'6")

  • Max Horizontal Extension

    21.01m / 24.4m (68'11"/80'1") (Restricted / Unrestricted)

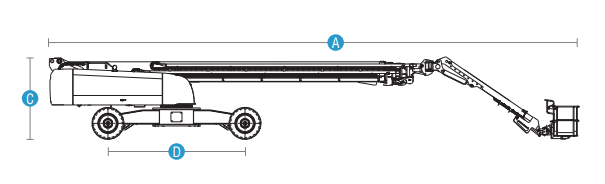

  • [A] Length-Stowed

    20.07m (65'10")

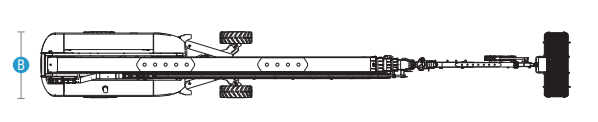

  • [B] Width

    2.49 m/5 m (8'2"/16'5") (Axle Retracted / Extended)

  • [C] Height-Stowed

    3.1m (10'2")

  • [D] Wheelbase

    5.2m (17'1")

  • Ground Clearance

    0.44 m (1'5.3")

  • Platform Dimensions(L×W×H)

    2.44 m×0.91 m×1.1 m (8'×3'×3'7")
Performance

  • Platform Capacity
    (Unrestricted)

    300kg (661lbs)

  • Platform Capacity
    (restricted)

    454kg (1,000lbs)

  • Turntable Rotation

    360 °/ Non-continuous

  • Platform Rotation

    160°

  • Drive Speed-Stowed

    4.5km/h (2.8mph)

  • Drive Speed-Raised

    0.48km/h (0.3mph)

  • Gradeability

    45%

  • Turning Radius-Inside

    7.1m (23'3.5") / 2.28 m (7'5.8")(Outrigger retracted / extended)

  • Turning Radius-Outside

    9.52m (31'3") / 6.54 m (21'5.5")(Outrigger retracted / extended)

  • Turntable Tailswing

    2.32 m (7'7.3")

  • Tilt Rating

    5°

  • Max Operating Noise Level

  • Drive×Steer

    4WD×4WS

  • Tyres-solid

    445/50D710 24PR (Foam-filled)
Power

  • Power Source (Optional)

    74 Kw/ 2200 rpm/ YCF36100-T480/Yuchai/China T4
    74 Kw/ 2200 rpm/ QSF3.8t3TC99/Cummins/China T3
    74.4kw/2300rpm/TCD3.6 L4 Stage V+T4f/DETUZ/ EU StageⅤ,T4f
    74.4kw/2300rpm/TCD3.6 L4 T4f/DETUZ/T4f

  • Auxiliary Power Unit

    12V DC

  • Fuel Tank Capacity-Diesel

    200L (44.0 gal (UK) / 52.8 gal (US))

  • Hydraulic Tank Capacity

    405L (89.1 gal (UK) / 107 gal (US))


  • Weight

    27,600kg (60,848 lbs)

  • Standards Compliance

    CE/EAC
Download Brochures
Standard features
  • Proportional control with 3 joysticks
  • 7-in display screen
  • 4WD × 4WS
  • Electrical platform leveling
  • Automotive-grade sleeves for all pipes
  • Weighing system
  • Tilt protection system
  • 160° platform rotation
  • Emergency stop system
  • Flashing beacon
  • 170° jib rotation
  • Emergency lowering system
  • Footswitch Horn & buzzer
  • Fault diagnosis system
  • Manual storage box
  • 2.44 m(8') platform with swinging gate
  • Foam-fillled tires
  • Max tilt rating to 5°
  • Telematics-ready connector
  • Secondary guarding device
  • Oil cooler
Optional features
  • AC power to platform
  • Platform work light
  • Overhead anti-collision device
  • Half mesh (For platform with swinging gate)
  • Glazier kit(For platform with swinging gate)
  • Anemometer
