HOME>PRODUCTS>Telescopic Boom Lift>TB22JT Plus (TB730JT Plus)

TB22JT Plus (TB730JT Plus)

Engine Powered Crawler Telescopic Boom Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

  • Max Platform Height

    22.2 m (72'10")

  • Max Working Height

    24.2 m (79'5")

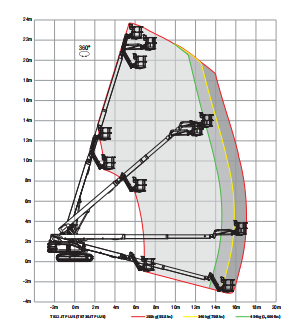

  • Max Horizontal Extension

    14.5 m/15.8m/17m (47'7"/51'10"/55'9")

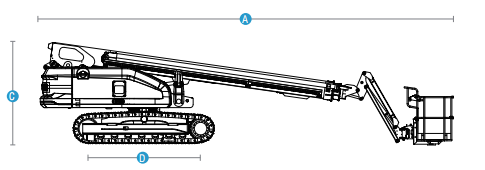

  • [A] Length-Stowed

    10.7 m (35'1")

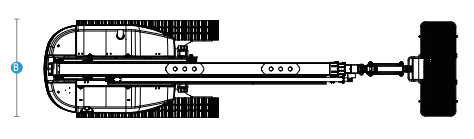

  • [B] Width

    2.49 m (8'2")

  • [C] Height-Stowed

    2.65 m (8'8")

  • [D] Wheelbase

    2.9 m (9'6")

  • Ground Clearance

    0.4 m (1'4")

  • Platform Dimensions(L×W×H)

    2.44 m×0.91 m×1.1 m (8'×3'×3'7")
Performance

  • Platform Capacity
    (Unrestricted)

    250 kg (551 lbs)

  • Platform Capacity
    (restricted)

    454 kg/340 kg (1000 lbs/750 lbs)

  • Turntable Rotation

    360° continuous

  • Platform Rotation

    160°

  • Drive Speed-Stowed

    0～1.8 km/h (0～1.1 mph)

  • Drive Speed-Raised

    0～0.5 km/h (0～0.3 mph)

  • Gradeability

    40%

  • Turning Radius-Inside

    2.44 m (8')

  • Turning Radius-Outside

    2.44 m (8')

  • Turntable Tailswing

    1.44 m (4'9")

  • Tilt Rating

    5°

  • Max Operating Noise Level

    -

  • Drive×Steer

    2WD

  • Tyres-solid

    Crawlers with oscillating wheels, option: non marking rubber track shoes
Power

  • Power Source (Optional)

    43 kW/2500 rpm/ QSF2.8t3NA60/Cummins/China T3

  • Auxiliary Power Unit

    12V DC

  • Fuel Tank Capacity-Diesel

    160 L (35.2 gal(UK)/42.3 gal (US))

  • Hydraulic Tank Capacity

    180 L (39.6 gal(UK)/47.6 gal (US))


  • Weight

    14,230 kg (31,371 lbs)

  • Standards Compliance

    CE/ANSI/EAC
Download Brochures
Standard features
  • 7-in display screen
  • Rubber plate
  • Dual-speed drive motor
  • Proportional control with 3 joysticks
  • Automotive-grade sleeves for all pipes
  • Weighing system
  • Hydraulic platform leveling
  • Continuous 360° turntable rotation
  • Emergency stop system
  • Tilt protection system
  • Max tilt rating to 5°
  • Emergency lowering system
  • Flashing beacon
  • Horn & buzzer
  • Fault diagnosis system
  • Footswitch
  • 2.44m(8') platform
  • Foam-filled non-marking tires
  • Manual storage box
  • Anti-crush device
Optional features
  • AC power to platform
  • 1.83m (6') platform
  • Overhead anti-collision device
  • Telematics-ready connector
  • Platform work light
