HOME>PRODUCTS>SCISSOR LIFT>0607EN (1930EN)

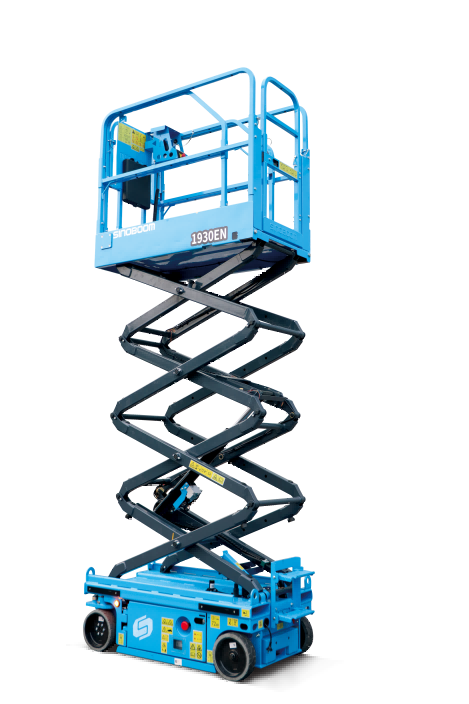

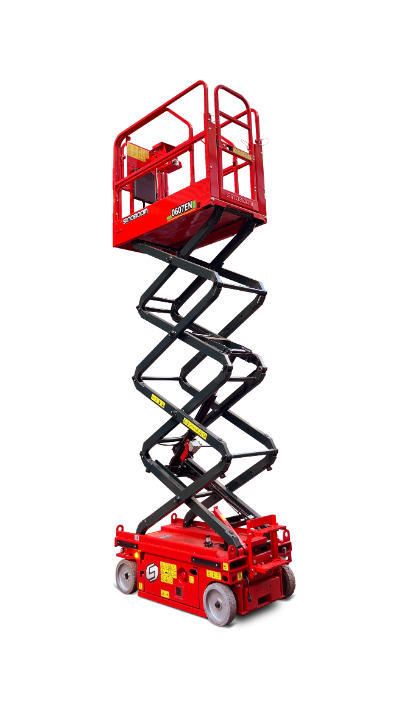

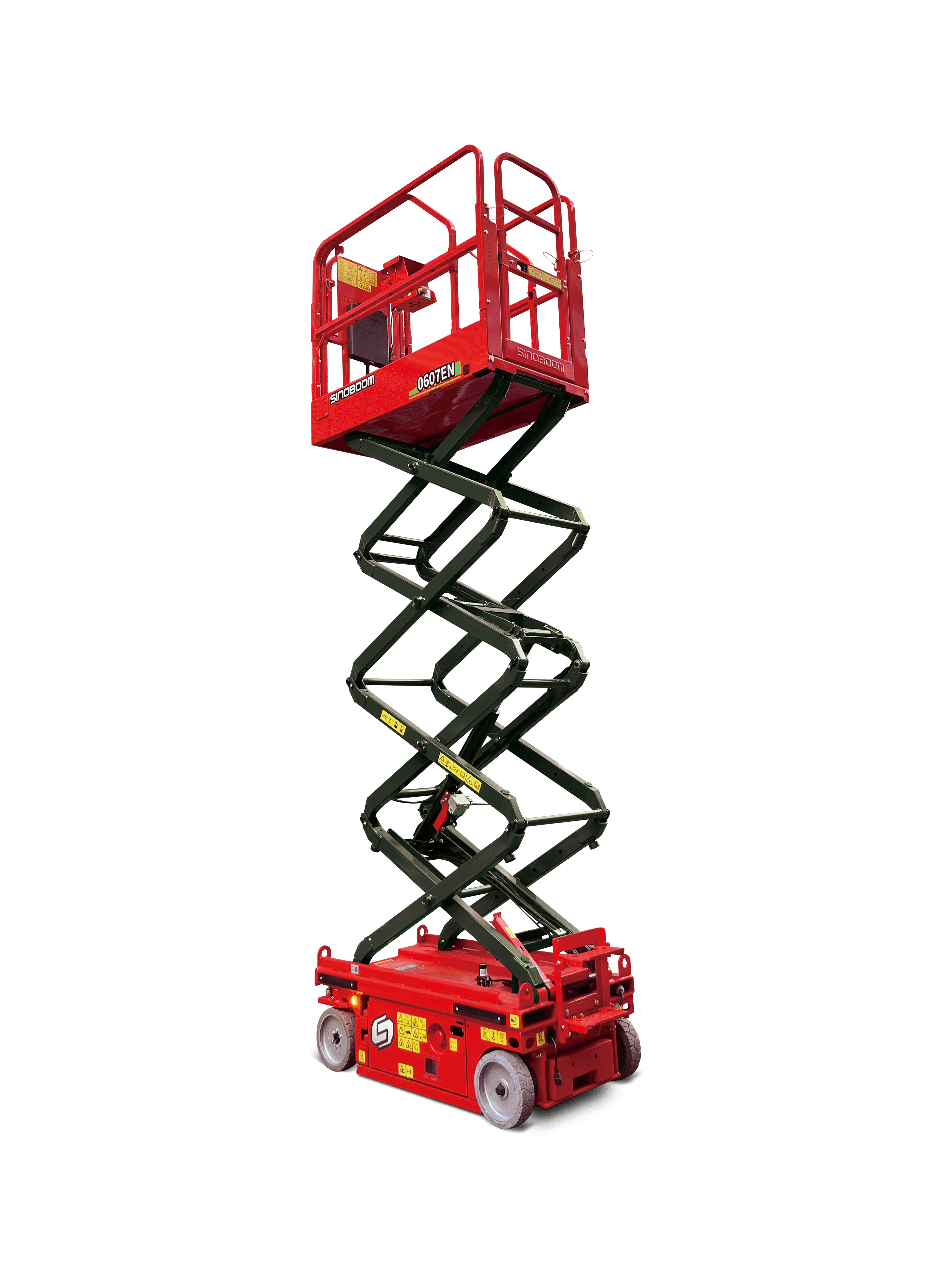

0607EN (1930EN)

ELECTRIC SCISSOR LIFTS - ELECTRIC DRIVE
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

  • Max Working Height

    7.55 m (24'9.2") / 6.6 m (21'7.8")

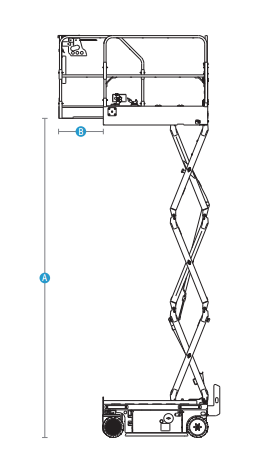

  • [A] Max Platform Height

    5.55 m (18'2.5") / 4.6 m (15'1.1")

  • [B] Max Horizontal Extension

    0.6 m (2')

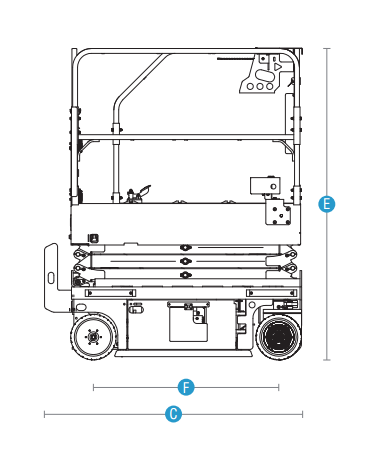

  • [C] Length-Stowed

    1.47 m (4'9.9") / 1.58 m (5'2.2") (Ladder Folded/Ladder Unfolded)

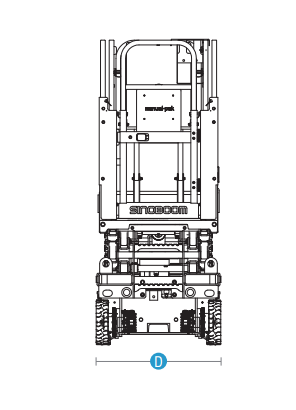

  • [D] Width-Stowed

    0.78 m (2'6.7")

  • Height - stowed Rail Folded

    1.63 m (5'4.2")

  • [E] Height - stowed Rail Unfolded

    1.99 m (6'6.3")

  • Height - stowed Fixed Rail

    -

  • [F] Wheelbase

    1.14 m (3'8.9")

  • Ground Clearance
    (Pothole Guard Stowed)

    0.061 m (2.4")

  • Ground Clearance
    (Pothole Guard Deployed)

    0.02 m (0.75")

  • Platform Dimensions(L×W×H)

    1.41 m×0.76 m×1.1 m (4'7.5"×2'5.9"×3'7.3")
Performance

  • Platform Allowable Occupants
    (Indoor/Outdoor)

    2 Persons/1 Person

  • Platform capacity

    230 kg (507 lbs)

  • Lift Extension Capacity

    120 kg (265 lbs)

  • Drive Speed-Stowed

    0～4.0 km/h (0～2.49 mph)

  • Drive Speed-Raised

    0～0.5 km/h (0～0.31 mph)

  • Elevation Time(Unloaded)

    24 s~28 s

  • Descent Time(Unloaded)

    26 s~30 s

  • Gradeability

    25%

  • Turning Radius
    (Inside/Outside)

    0.1 m (3.9") / 1.48 m (4'10.3")

  • Tilt Rating
    (Front to Back/Side to Side)

    3°/1.5°

  • Tyres-solid

    280×76 mm/solid (11"×3")
Power

  • Batteries

    24 V, 120 Ah, 20 hr (Lead-acid battery)

  • Power Source

    24 V DC, 2.2 kW

  • Drive Mode

    24 V DC/0.4 kW

  • Charger Input

    100～240 V AC

  • Charger Output

    15A

  • Hydraulic System Capacity

    4 L (0.9 gal (UK)/1.05 gal (US))


  • Weight(Indoor/Outdoor)

    1,100 kg (2,425 lbs)

  • Weight(Indoor Only)

    -

  • Standards Compliance

    CE/ANSI/CSA/AS/EAC
Download Brochures
Standard features
  • Maintenance-free battery
  • Proportional control
  • Non-marking tires
  • Auto braking system
  • Emergency lowering system
  • Emergency stop
  • Fault diagnosis system
  • Tilt protection system
  • Flashing beacon
  • Forklift pockets and lifting points
  • Electrophoretic painting
  • Buzzer
  • Pothole protection
  • Manual storage box
  • Foldable platform
  • Bumper rails
  • Telematics-ready connector
  • Drivable at full height
  • Weighing system
Optional features
  • RCBO
  • Industrial power device on platform
  • Charging transfer wire
