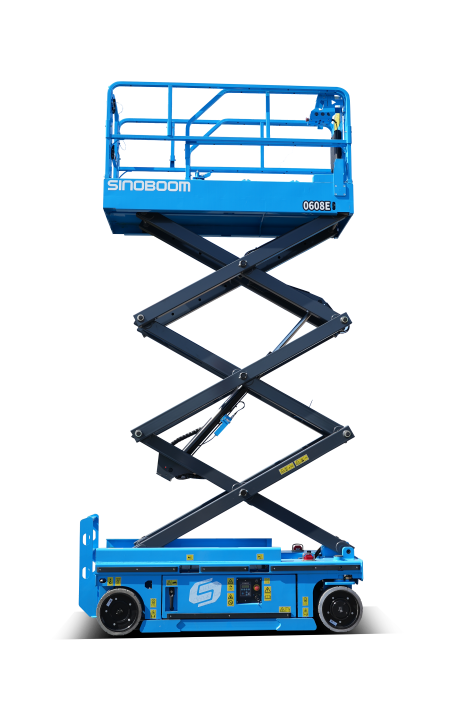

0608E(2132E)

HOME>PRODUCTS>SCISSOR LIFT>0608E(2132E)

Electric Series Scissor Lifts

Working Height

8.3m

Platform Capacity

380kg

Gradeability

25%

Get a Quote

Download Brochures

SPECIFICATIONS
Standard/Optional
APPLICATIONS

Dimensions

Max Working Height

8.3m (27'3")
[A] Max Platform Height

6.3m (20'8")
[B] Max Horizontal Extension

0.9m (3')
[C] Length-Stowed

2.46m (8')
[D] Width-Stowed

0.83m (2'8.7")
Height - stowed Rail Folded

1.84m (6')
[E] Height - stowed Rail Unfolded

2.24m (7'4")
Height - stowed Fixed Rail
[F] Wheelbase

1.88m (6'2")
Ground Clearance
(Pothole Guard Stowed)

0.1m (4")
Ground Clearance
(Pothole Guard Deployed)

0.025m (0.98")
Platform Dimensions(L×W×H)

2.30m×0.8m×1.1m (7'6.5"×2'7.5"×3'7")

Performance

Platform Allowable Occupants
(Indoor/Outdoor)

2 persons/1 person
Platform capacity

380kg (838lbs)
Lift Extension Capacity
Drive Speed-Stowed

0～4km/h (0～2.5mph)
Drive Speed-Raised

0～0.8km/h (0～0.5mph)
Elevation Time(Unloaded)

25s~30s
Descent Time(Unloaded)

30s~35s
Gradeability

25%
Turning Radius
(Inside/Outside)

0/2.1m (0/6'10.7'')
Tilt Rating
(Front to Back/Side to Side)

3°/1.5°
Tyres-solid

380×125mm (15×5") / solid

Power

Batteries

24V, 220Ah (Lead acid battery)
Power Source

24V/3.3 kw
Drive Mode

Motor, front-wheel
Charger Input

100~240V AC
Charger Output

30A
Hydraulic System Capacity

15L (3.3 gal(UK)/4.0 gal (US))

Weight(Indoor/Outdoor)

2,090kg (4,608lbs)
Weight(Indoor Only)
Standards Compliance

CE/ANSI/CSA/EAC

Download Brochures

Standard features

2WD×2WS
Maintenance-free battery
Fault diagnosis system
Non-marking tires
Proportional control
Emergency lowering system
Emergency stop
Electrophoretic painting
Tilt protection system
Flashing beacon
Forklift pockets and lifting points
Overload sensing system
Foldable guardrail
Automatic pothole protection
Manual storage box
Drivable at full height
Bumper rails
Auto braking system
Horn & buzzer

Optional features

RCBO
AC power to platform
Platform work light
Footswitch
Overhead anti-collision device
Telematics-ready connector
AC drive motor
