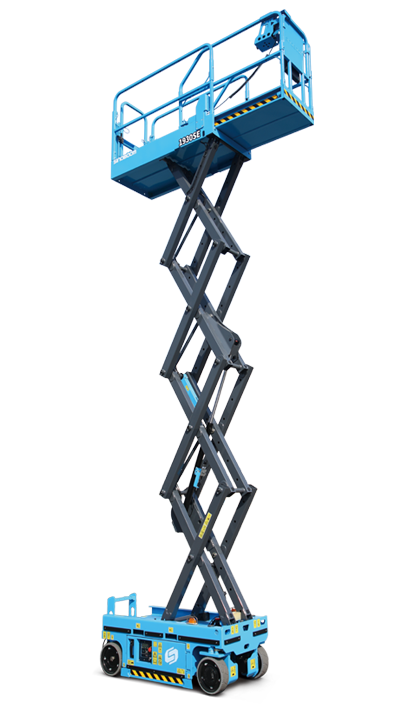

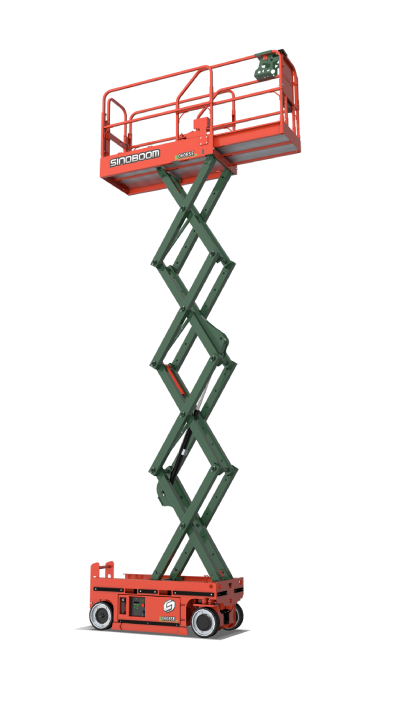

0608SE / ME (1930SE / 1932ME)

Electric Series Scissor Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Product Highlights

  • More reliable performance

    Bumper rail protection

  • Reduced maintenance costs

    Rapid, convenient transportation with two-way forklift slot
    Lower cost of ownership with highly versatile parts

  • Efficient and environmentally friendly

    Higher work efficiency
    Environmental protection, zero emissions
Dimensions

  • Max Working Height

    7.8m (25'7")

  • [A] Max Platform Height

    5.8m (19')

  • [B] Max Horizontal Extension

    0.9m (3')

  • [C] Length-Stowed

    1.8m (5'11")

  • [D] Width-Stowed

    0608SE(1930SE): 0.79m (2'7")
    0608ME(1932ME): 0.81m (2'8")

  • Height - stowed Rail Folded

    1.88m (6'2")

  • [E] Height - stowed Rail Unfolded

    2.14m (7')

  • Height - stowed Fixed Rail

    -

  • [F] Wheelbase

    1.334m(4'4")

  • Ground Clearance
    (Pothole Guard Stowed)

    75mm (3")

  • Ground Clearance
    (Pothole Guard Deployed)

    24mm (0.95")

  • Platform Dimensions(L×W×H)

    1.64m×0.76m×1.1m (5'5"×2'6"×3'7")
Performance

  • Platform Allowable Occupants
    (Indoor/Outdoor)

    0608SE(1930SE): 2 persons(Indoor Only)/-
    0608ME(1932ME): 2 persons/1 person

  • Platform capacity

    230kg (507 lbs)

  • Lift Extension Capacity

    120kg (265 lbs)

  • Drive Speed-Stowed

    4km/h (2.5mph)

  • Drive Speed-Raised

    0.8km/h (0.5mph)

  • Elevation Time(Unloaded)

    15s~20s

  • Descent Time(Unloaded)

    25s~30s

  • Gradeability

    25%

  • Turning Radius
    (Inside/Outside)

    0/1.49m (0/4'11")

  • Tilt Rating
    (Front to Back/Side to Side)

    3°/1.5°

  • Tyres-solid

    323×100mm (12.7×4")
Power

  • Batteries

    24V, 220Ah (Lead acid battery)

  • Power Source

    24V DC

  • Drive Mode

    2WD×2WS

  • Charger Input

    100~240V AC

  • Charger Output

    30A

  • Hydraulic System Capacity

    6L (1.3gal (UK) / 1.6gal (US))


  • Weight(Indoor/Outdoor)

    1,575kg (3,473lbs)

  • Weight(Indoor Only)

    0608SE (1930SE) for indoor only

  • Standards Compliance

    0608SE (1930SE): CE/ANSI/CSA/EAC 0608ME(1932ME): CE/ANSI/CSA/EAC/KCS
Download Brochures
Standard features
  • 2WD×2WS
  • Maintenance-free battery
  • Fault diagnosis system
  • Non-marking tires
  • Proportional control
  • Forklift pocket and lifting eyes
  • Emergency stop
  • Electrophoretic painting
  • Tilt protection system
  • Flashing beacon
  • Forklift pockets and lifting points
  • Overload sensing system
  • Foldable guardrail
  • Automatic pothole protection
  • Manual storage box
  • Drivable at full height
  • Bumper rails
  • Auto braking system
  • Horn & buzzer
Optional features
  • RCBO
  • AC power to platform
  • Platform work light
  • Footswitch
  • Overhead anti-collision device
  • Telematics-ready connector
  • Lithium battery
  • AC drive motor
