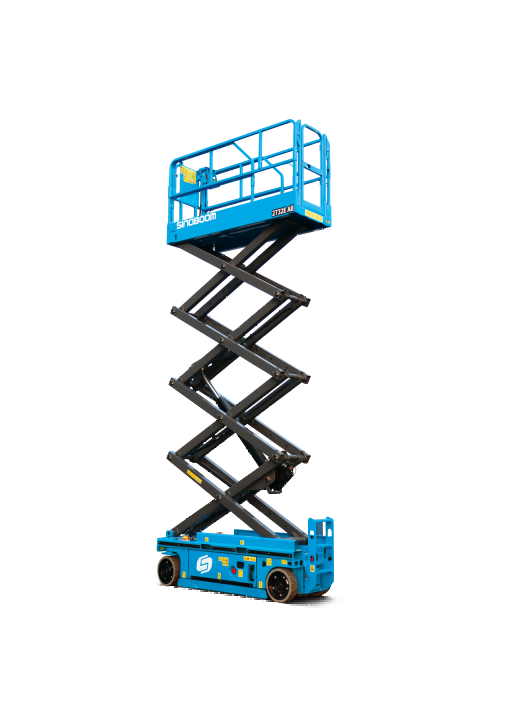

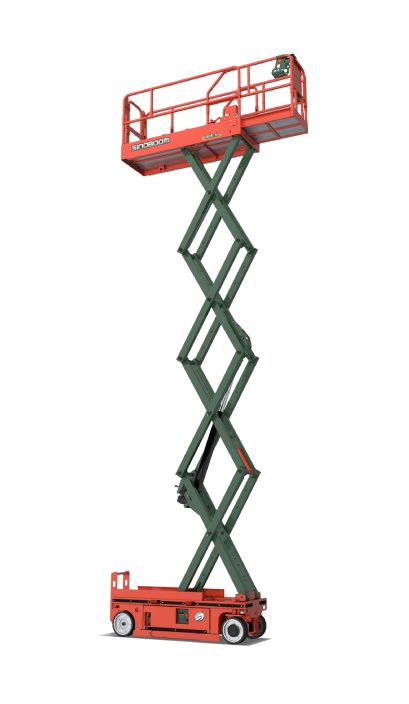

0808E All (2732E All)

ALL ELECTRIC SCISSOR LIFTS
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

  • Max Working Height

    10.1 m (33'2") / 8 m (26'3") (Indoor/Outdoor)

  • [A] Max Platform Height

    8.1 m (26'7") / 6 m (19'8") (Indoor/Outdoor)

  • [B] Max Horizontal Extension

    0.9 m (3')

  • [C] Length-Stowed

    2.46 m (8')

  • [D] Width-Stowed

    0.83 m (2'8.7")

  • Height - stowed Rail Folded

    1.96 m (6'5")

  • [E] Height - stowed Rail Unfolded

    2.36 m (7'9")

  • Height - stowed Fixed Rail

    -

  • [F] Wheelbase

    1.88 m (6'2")

  • Ground Clearance
    (Pothole Guard Stowed)

    0.1 m (4")

  • Ground Clearance
    (Pothole Guard Deployed)

    0.025 m (0.98")

  • Platform Dimensions(L×W×H)

    2.30 m×0.8 m×1.1 m (6'6.5"×2'7.5"×3'7")
Performance

  • Platform Allowable Occupants
    (Indoor/Outdoor)

    2 Persons/1 Person

  • Platform capacity

    250 kg (551 lbs)

  • Lift Extension Capacity

    120 kg (265 lbs)

  • Drive Speed-Stowed

    0～4 km/h (0～2.5 mph)

  • Drive Speed-Raised

    0～0.5 km/h (0～0.3 mph)

  • Elevation Time(Unloaded)

    40 s~45 s

  • Descent Time(Unloaded)

    40 s~45 s

  • Gradeability

    25%

  • Turning Radius
    (Inside/Outside)

    0.61 m (2') / 2.2 m (7'2.6")

  • Tilt Rating
    (Front to Back/Side to Side)

    3°/1.5°

  • Tyres-solid

    380×125 mm (15"×5")/solid non-marking tires
Power

  • Batteries

    24 V, 220 Ah, 20 hr (Lead-acid battery)

  • Power Source

    -

  • Drive Mode

    24 V AC/0.7 kW

  • Charger Input

    100～240 V AC

  • Charger Output

    36 A

  • Hydraulic System Capacity

    -


  • Weight(Indoor/Outdoor)

    2,265 kg (4,994 lbs)

  • Weight(Indoor Only)

    -

  • Standards Compliance

    CE/ANSI/CSA
Download Brochures
Standard features
  • 2WD×2WS
  • Maintenance-free battery
  • Fault diagnosis system
  • Solid non-marking tires
  • Proportional control
  • Emergency lowering system
  • Emergency stop system
  • Electrophoretic painting
  • Tilt protection system
  • Flashing beacon
  • Side/rear forklift pockets
  • Lifting and tie down points
  • Foldable guardrail
  • Automatic pothole protection
  • Overload sensing system
  • Drivable at full height
  • Bumper rails
  • Manual storage box
  • Horn & buzzer
  • AC power to platform
  • Auto braking system
  • AC drive motor
  • Full size swing gate
  • Telematics-ready connector
  • Weighing System
Optional features
  • RCBO
  • Platform work light
  • Overhead anti-collision device
  • Footswitch
  • Charging transfer wire
