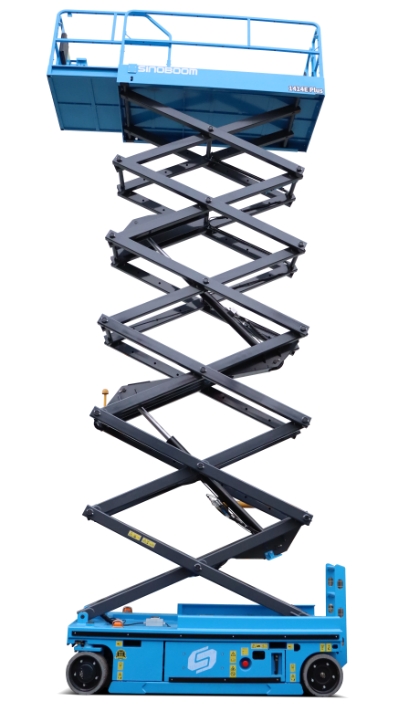

1414E Plus (4655E Plus)

Electric Series Scissor Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

  • Max Working Height

    15.8m (51'10") indoor / 10.5m (34'5") outdoor

  • [A] Max Platform Height

    13.8m (45'3") indoor / 8.5m (27'11") outdoor

  • [B] Max Horizontal Extension

    0.9m (3')

  • [C] Length-Stowed

    2.78m (9')

  • [D] Width-Stowed

    1.41m (4'7")

  • Height - stowed Rail Folded

    1.98m (6'6")

  • [E] Height - stowed Rail Unfolded

    2.6m (8'6")

  • Height - stowed Fixed Rail

  • [F] Wheelbase

    2.22m (7'3")

  • Ground Clearance
    (Pothole Guard Stowed)

    0.1m (4")

  • Ground Clearance
    (Pothole Guard Deployed)

    25mm (0.98")

  • Platform Dimensions(L×W×H)

    2.64m×1.3m×1.1m (8'8"×4'3"×3'7")
Performance

  • Platform Allowable Occupants
    (Indoor/Outdoor)

    2 persons/1 person

  • Platform capacity

    350kg (772lbs)

  • Lift Extension Capacity

  • Drive Speed-Stowed

    4km/h (2.5mph)

  • Drive Speed-Raised

    0.8km/h (0.5mph)

  • Elevation Time(Unloaded)

    75s~85s

  • Descent Time(Unloaded)

    55s~63s

  • Gradeability

    25%(AC)/20%(DC)

  • Turning Radius
    (Inside/Outside)

    0/2.64m (0/8'8")

  • Tilt Rating
    (Front to Back/Side to Side)

    3°/1.5°

  • Tyres-solid

    380×125mm (15×5")
Power

  • Batteries

    24V,280Ah (Lead acid battery)/25.6V,200Ah (Lithium battery)

  • Power Source

    24V DC

  • Drive Mode

    Motor, front-wheel

  • Charger Input

    100~240V AC

  • Charger Output

    30A

  • Hydraulic System Capacity

    15L (3.3 UKgal/3.9 US gal)


  • Weight(Indoor/Outdoor)

    3,660kg (8,069lbs)

  • Weight(Indoor Only)

  • Standards Compliance

    CE/ANSI/CSA/AS/KCS/EAC
Download Brochures
Standard features
  • Maintenance-free battery
  • Automatic braking system
  • Drive at full height
  • Proportional control
  • Emergency lowering system
  • Forklift pocket and lifting eyes
  • Bumper rail
  • Emergency stop at both platform and ground controls
  • Electrophoretic paint technology
  • 2WS × 2WD
  • Fault diagnosis system
  • Foldable guardrail
  • Non-marking tyres
  • Tilt protection
  • Overload sensing system
  • PCU bracket
  • Automatic pothole guard
Optional features
  • Overhead anti-collision device
  • Headlight
  • RCBO
  • AC power to platform
  • Foot switch
