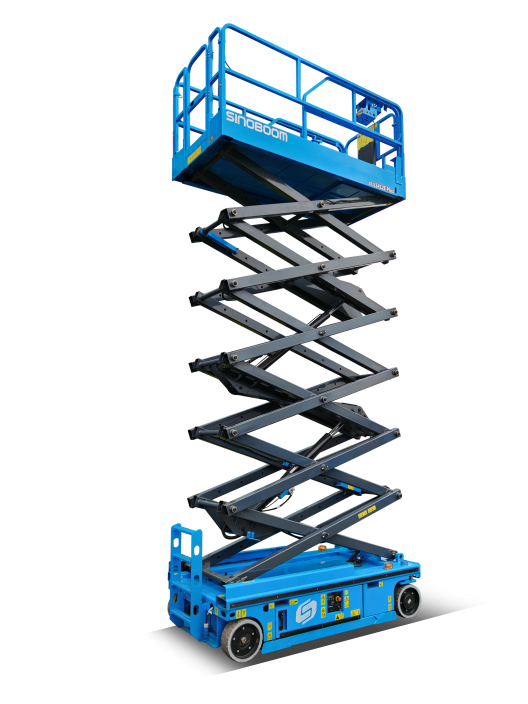

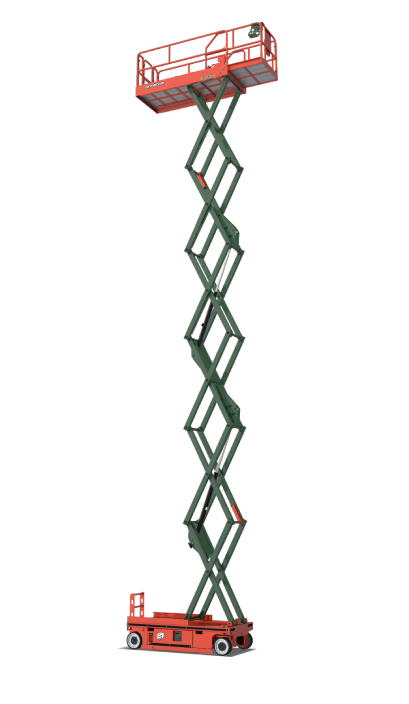

1412E Plus (4647E Plus)

HOME>PRODUCTS>SCISSOR LIFT>1412E Plus (4647E Plus)

Electric Series Scissor Lifts

Working Height

15.8m

Platform Capacity

350kg

Gradeability

25%

Get a Quote

Download Brochures

SPECIFICATIONS
Standard/Optional
APPLICATIONS

Dimensions

Max Working Height

15.8m (51'10")
[A] Max Platform Height

13.8m (45'3")
[B] Max Horizontal Extension

0.9m (3')
[C] Length-Stowed

2.78m (9')
[D] Width-Stowed

1.27m (4'2")
Height - stowed Rail Folded

1.96m (6'5")
[E] Height - stowed Rail Unfolded

2.6m (8'6")
Height - stowed Fixed Rail
[F] Wheelbase

2.22m (7'3")
Ground Clearance
(Pothole Guard Stowed)

0.1m (4")
Ground Clearance
(Pothole Guard Deployed)

0.025 m (0.98")
Platform Dimensions(L×W×H)

2.64m×1.15m×1.1m (8'8"×3'9"×3'7")

Performance

Platform Allowable Occupants
(Indoor/Outdoor)

2 Persons(Indoor Only)
Platform capacity

350kg (772lbs)
Lift Extension Capacity
Drive Speed-Stowed

0~4 km/h (0~2.5 mph)
Drive Speed-Raised

0~0.8 km/h (0~0.5 mph)
Elevation Time(Unloaded)

75s~85s
Descent Time(Unloaded)

55s~63s
Gradeability

25%
Turning Radius
(Inside/Outside)

0/2.64m (0/8'8")
Tilt Rating
(Front to Back/Side to Side)

3°/1.5°
Tyres-solid

380×125 mm (15×5") /solid

Power

Batteries

24V,280Ah (Lead acid battery)
25.6V,200Ah (Lithium battery)
Power Source

24V DC /4.5 kW
Drive Mode

Motor, front-wheel
Charger Input

100~240V AC
Charger Output

30A
Hydraulic System Capacity

15L (3.3 UK gal/3.9 US gal)

Weight(Indoor/Outdoor)

3,375 kg (7,442lbs)(Indoor Only)
Weight(Indoor Only)
Standards Compliance

CE/EAC

Download Brochures

Standard features

2WD×2WS
Maintenance-free battery
Fault diagnosis system
Non-marking tires
Proportional control
Emergency lowering system
Emergency stop
Electrophoretic painting
Tilt protection system
Flashing beacon
Forklift pockets and lifting points
Overload sensing system
Foldable guardrail
Automatic pothole protection
Manual storage box
Drivable at full height
Bumper rails
Auto braking system
Horn & buzzer

Optional features

RCBO
AC power to platform
Platform work light
Footswitch
Overhead anti-collision device
Telematics-ready connector
Lithium battery
AC drive motor
