HOME>PRODUCTS>SCISSOR LIFT>1215ET (3962ET)

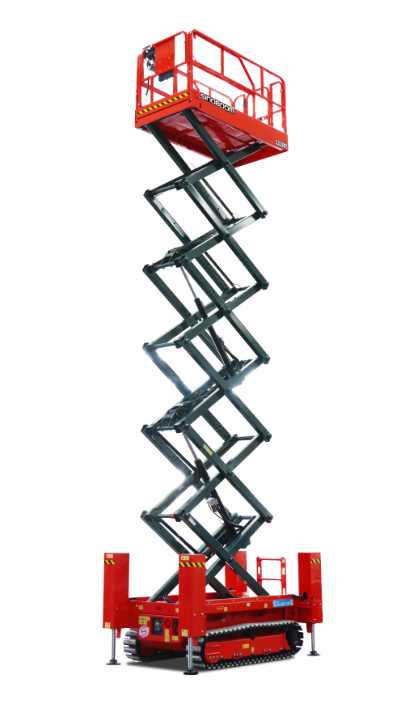

1215ET (3962ET)

Crawler Scissor Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

  • Max Working Height

    14 m (45'11.2")

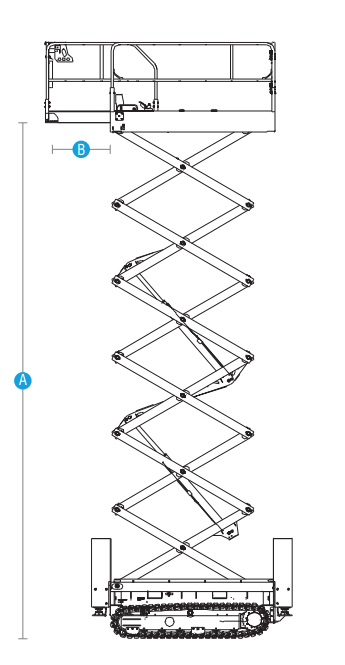

  • [A] Max Platform Height

    12 m (39'4.4")

  • [B] Max Horizontal Extension

    0.9 m (2'11.4")

  • [C] Length-Stowed
    (Outriggers/Without Outriggers)

    2.79 m (9'1.8")

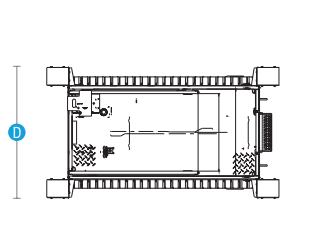

  • [D] Width-Stowed

    1.58 m (5'2.2")

  • Height - stowed (Rail Folded)

    2.06 m (6'9.1")

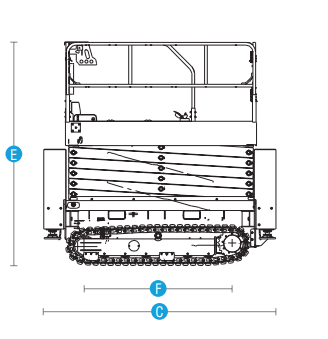

  • [E] Height - stowed
    (Rail Unfolded)

    2.69 m (8'9.9")

  • [F] Wheelbase

    1.782 m/1.738 m (5'10.2"/5'8.4") (Steel Track/Rubber track)

  • Ground Clearance

    0.125 m (4.9")

  • Platform Dimensions(L×W×H)

    2.30 m×1.15 m×1.1 m (7'6.5"×3'9"×3'7.3")
Performance

  • Platform Allowable Occupants
    (Indoor)

    -

  • Platform Allowable Occupants
    (Outdoor)

    2 Persons

  • Platform Capacity

    320 kg (705.6 lbs)

  • Drive Speed-Stowed

    -

  • Drive Speed-Raised

    -

  • Elevation Time
    (Unloaded)

    63 s~68s

  • Descent Time
    (Unloaded)

    55 s~60s

  • Gradeability

    30%

  • Turning Radius
    (Inside/Outside)

    -

  • Tilt Rating
    (Front to Back)

    3°/0.5° (≤7.2m/＞7.2m)

  • Tilt Rating
    (Side to Side, Outrigger Tele-In/Tele-Out)

    2°/0.5°(≤7.2m/＞7.2m)

  • Max Outrigger Leveling
    (Front to Back)

    7°

  • Max Outrigger Leveling
    (Side to Side)

    12°

  • Tyres-solid

    -
Power

  • Power Source

    48 V DC, 5 kW

  • Drive Mode

    48 V DC/4 kW

  • Fuel Tank Capacity - Diesel

    -

  • Hydraulic System Capacity

    20 L (4.5 gal (UK)/5.25 gal (US))


  • Weight
    (Outriggers/Without Outriggers)

    3,690kg (8,135 lbs)/3,650kg (8,046 lbs) (Steel track / Rubber track)

  • Standards Compliance

    -
Download Brochures
Standard features
  • Steel track with rubber plate
  • Forklift pockets and lifting points
  • Fold-down platform
  • Manual storage container
  • Maintenance-free battery
  • Warning light
  • Buzzer
  • Proportional control
  • Auto braking system ring system
  • Tilt protection system
  • Emergency stop
  • Emergency lower button
  • External power interface
  • Fault diagnosis system
  • Electrophoretic painting
Optional features
  • Rubber track
  • RCBO unit
  • Platform work light
  • Footswitch
  • Overhead anti-collision device
  • Weighing system
  • AC power device on platform
  • GPS remote monitoring system
  • Non-marking track
