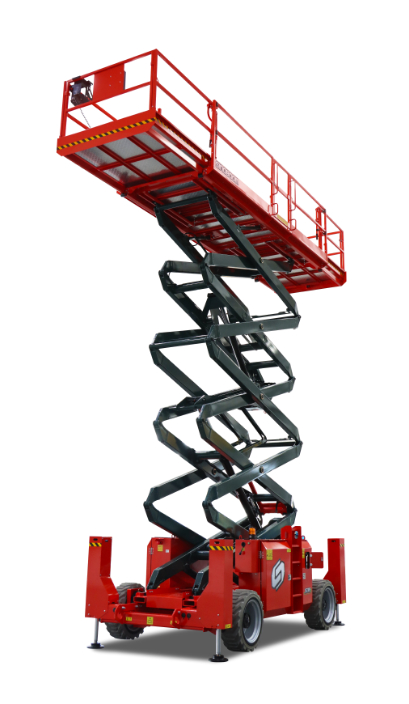

1623RE (5389RE)

Rough Terrain Scissor Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

  • Max Working Height

    18.2m (59'8.5")

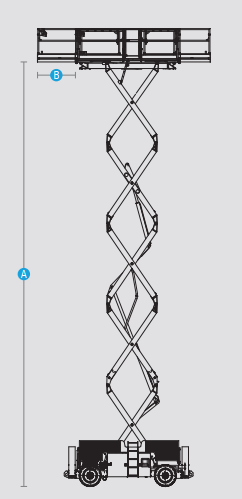

  • [A] Max Platform Height

    16.2m (53'1.8")

  • [B] Max Horizontal Extension

    1.5m/1.2m (4'11.1"/3'11.2")

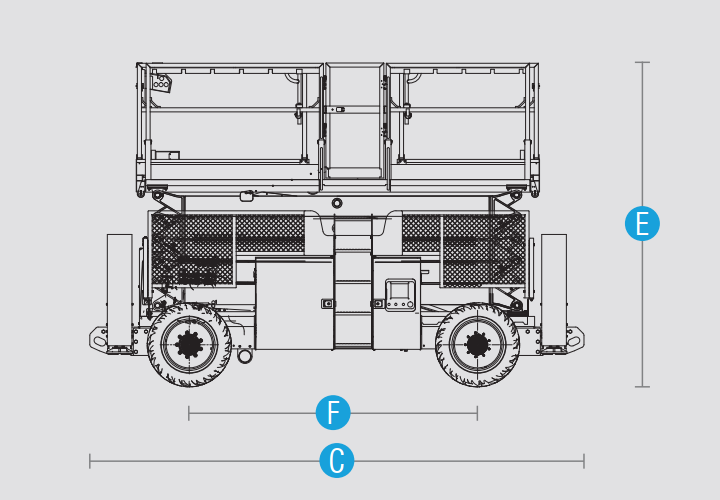

  • [C] Length-Stowed
    (Outriggers/Without Outriggers)

    4.88m (16')

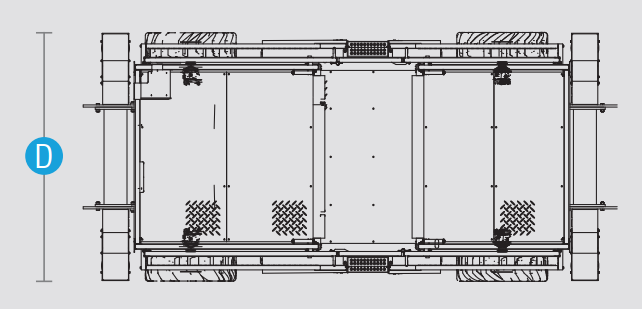

  • [D] Width-Stowed

    2.28m (7'5.7")

  • Height - stowed (Rail Folded)

    2.42 m (7'11.3")

  • [E] Height - stowed
    (Rail Unfolded)

    3.18 m (10'5.2")

  • [F] Wheelbase

    2.84m (9'3.8'')

  • Ground Clearance

    0.36m (1'2.2'')

  • Platform Dimensions(L×W×H)

    6.5m Platform: 3.96m×1.82m×1.1m (13'×6'×3'7")/7.4m Platform: 4.84m×1.82m×1.1m (15'10.6''×6'×3'7")
Performance

  • Platform Allowable Occupants
    (Indoor)

    4 Persons

  • Platform Allowable Occupants
    (Outdoor)

    4 Persons

  • Platform Capacity

    680kg (1,499lbs)

  • Drive Speed-Stowed

    5.3km/h (3.3mph)

  • Drive Speed-Raised

    1.1km/h (0.68mph)

  • Elevation Time
    (Unloaded)

    70s~90s

  • Descent Time
    (Unloaded)

    45s~55s

  • Gradeability

    40%

  • Turning Radius
    (Inside/Outside)

    2.2m/5.3m (7'26"/17'4.7")

  • Tilt Rating
    (Front to Back)

    3°

  • Tilt Rating
    (Side to Side, Outrigger Tele-In/Tele-Out)

    2 °/0.5 °

  • Max Outrigger Leveling
    (Front to Back)

    7°

  • Max Outrigger Leveling
    (Side to Side)

    12°

  • Tyres-solid

    33x12-20/solid
Power

  • Power Source

    48 V,480 Ah(Lead-acid battery)
    51.2V,500Ah(Lithium battery)

  • Drive Mode

    48 VDC

  • Fuel Tank Capacity - Diesel

    -

  • Hydraulic System Capacity

    110L (24 gal(UK)/ 29 gal(US))


  • Weight
    (Outriggers/Without Outriggers)

    8,800 kg(19,400 lbs) / 9,190 kg(20,260 lbs)

  • Standards Compliance

    GB/CE/ANSI/EAC
Download Brochures
Standard features
  • 4WDX2WS
  • Forklift pockets and lifting points
  • Proportional control
  • Manual storage box
  • Maintenance-free battery
  • Emergency lowering system
  • Emergency stop
  • Electrophoretic painting
  • Tilt protection system
  • RCBO with AC power cable
  • Fault diagnosis system
  • Auto braking system
  • Fold-down platform
  • Buzzer
  • Two platform extensions
Optional features
  • Non-marking tires
  • Industrial power device on platform
  • 7.4m platform
