1218RD (4069RD)

Rough Terrain Scissor Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

  • Max Working Height

    14.2 m (46'10.7")

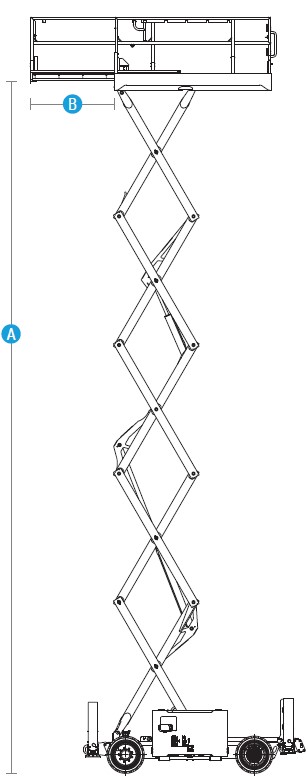

  • [A] Max Platform Height

    12.2 m (40'0.3")

  • [B] Max Horizontal Extension

    1.5m (4'11.1'')

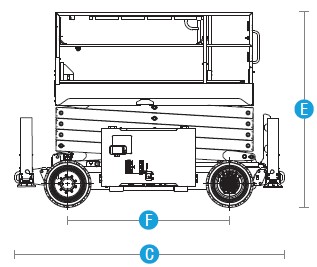

  • [C] Length-Stowed
    (Outriggers/Without Outriggers)

    3.8 m / 3.19 m (12'5.6" / 10'5.6")

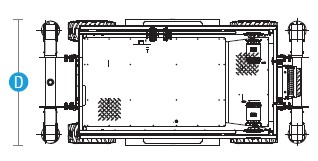

  • [D] Width-Stowed

    1.78 m (5'10")

  • Height - stowed (Rail Folded)

    2.1m (6'10.7")

  • [E] Height - stowed
    (Rail Unfolded)

    2.73m (8'11.5")

  • [F] Wheelbase

    2.28m (7'5.8")

  • Ground Clearance

    0.22m (8.66")

  • Platform Dimensions(L×W×H)

    2.8m×1.6m×1.1m(9'2.2"×5'3"×3'7.3")
Performance

  • Platform Allowable Occupants
    (Indoor)

    3 persons

  • Platform Allowable Occupants
    (Outdoor)

    2 persons

  • Platform Capacity

    450kg (992lbs)

  • Drive Speed-Stowed

    5.6km/h (3.5mph)

  • Drive Speed-Raised

    0.48km/h (0.3mph )

  • Elevation Time
    (Unloaded)

    55s～65s

  • Descent Time
    (Unloaded)

    50s～60s

  • Gradeability

    35%

  • Turning Radius
    (Inside/Outside)

    2.11m/4.6m (6'11.1"/15'1.1")

  • Tilt Rating
    (Front to Back)

    3°

  • Tilt Rating
    (Side to Side, Outrigger Tele-In/Tele-Out)

    2°/0.8°

  • Max Outrigger Leveling
    (Front to Back)

    5.3°(front)/4.2°(back)

  • Max Outrigger Leveling
    (Side to Side)

    11.7°

  • Tyres-solid

    26×12-16.5/solid
Power

  • Power Source

    Kubota D1105-E4B-EU-X1

  • Drive Mode

    4WD×2WS

  • Fuel Tank Capacity - Diesel

    48L (10.6 gal (UK) / 12.7gal (US))

  • Hydraulic System Capacity

    72L (15.8 gal (UK) / 19 gal (US))


  • Weight
    (Outriggers/Without Outriggers)

    5,180kg (11,420 lbs) / 4,720kg（10,406 lbs)

  • Standards Compliance

    CE/ANSI/CSA/EAC/AS
Download Brochures
Standard features
  • 4 WD × 2 WS
  • Forklift pockets and lifting points
  • Proportional control
  • Manual storage box
  • Flashing beacon
  • Emergency lowering system
  • Emergency stop
  • Electrophoretic painting
  • Tilt protection system
  • Foldable guardrail
  • Foam-filled non-marking tires
  • Auto braking system
  • Overload sensing system
  • Oscillating axle
  • Fault diagnosis system
  • Horn & buzzer
  • Drivable at full height
Optional features
  • AC power to platform
  • Platform work light
  • Overhead anti-collision device
  • Telematics-ready connector
  • 7.4m platform
