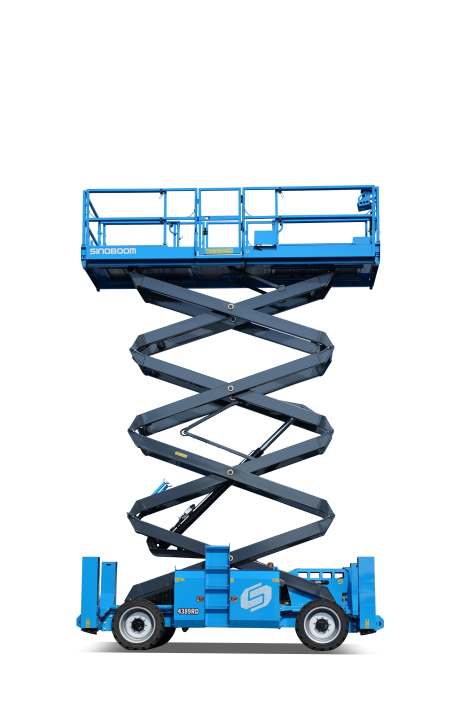

1323RD (4389RD)

Rough Terrain Scissor Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

  • Max Working Height

    15.1m (49'6.5")

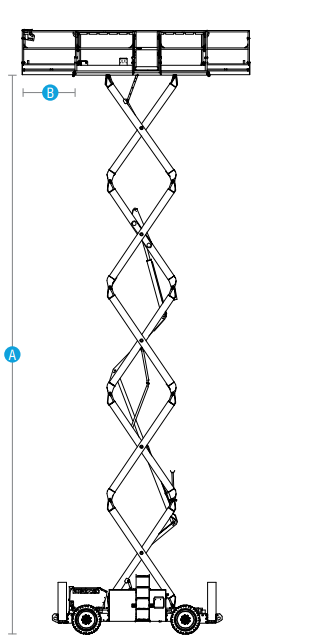

  • [A] Max Platform Height

    13.1m (42'11.7'')

  • [B] Max Horizontal Extension

    1.5m/1.2m (4'11.1"/3'11.2" )

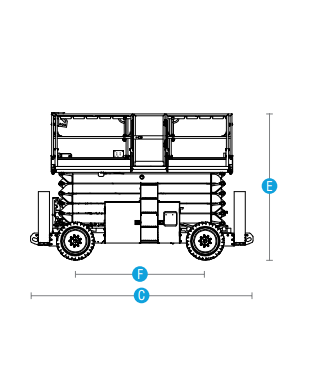

  • [C] Length-Stowed
    (Outriggers/Without Outriggers)

    4.88m (16')

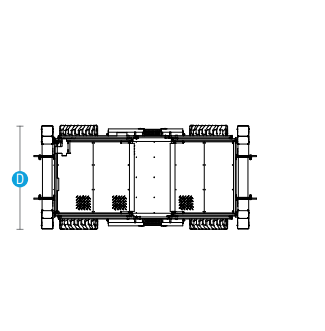

  • [D] Width-Stowed

    2.31 m (7'7")

  • Height - stowed (Rail Folded)

    2.20 m (7'2.6")

  • [E] Height - stowed
    (Rail Unfolded)

    2.96 m (9'8.5")

  • [F] Wheelbase

    2.85 m (9'4")

  • Ground Clearance

    0.36m (1'2.2'')

  • Platform Dimensions(L×W×H)

    6.5m platform: 3.96m×1.82m×1.1m (13'×6'×3'7'')
    7.4m platform: 4.84m×1.82m×1.1m (15'10.6''×6'×3'7'')
Performance

  • Platform Allowable Occupants
    (Indoor)

    7 Persons

  • Platform Allowable Occupants
    (Outdoor)

    7 Persons

  • Platform Capacity

    680 kg (1,499 lbs)

  • Drive Speed-Stowed

    6.1 km/h (3.8 mph) Yanmar engine
    5.0 km/h (3.1 mph) Kubota engine

  • Drive Speed-Raised

    1.1 km/h (0.7 mph)

  • Elevation Time
    (Unloaded)

    50s~60s

  • Descent Time
    (Unloaded)

    34s~44s

  • Gradeability

    40%

  • Turning Radius
    (Inside/Outside)

    2.2m/5.3m (7'2.6"/17'4.7")

  • Tilt Rating
    (Front to Back)

    3°

  • Tilt Rating
    (Side to Side, Outrigger Tele-In/Tele-Out)

    2°

  • Max Outrigger Leveling
    (Front to Back)

    7°

  • Max Outrigger Leveling
    (Side to Side)

    12°

  • Tyres-solid

    315/55D20 (foam-filled)
Power

  • Power Source

    Yanmar / 4TNV88C / 35.5 kW(48.3 hp) / EU Stage 5 / EPA Tier 4
    Yanmar / 4TNV88 / 35.3 kW(48 hp) / China Stage 4
    Kubota / D1105 / 18.2 kW(24.7 hp)

  • Drive Mode

    4WD×2WS

  • Fuel Tank Capacity - Diesel

    110L (24 gal (UK) / 29 gal (US))

  • Hydraulic System Capacity

    107L/23.5 gal(UK)/28 gal(US)


  • Weight
    (Outriggers/Without Outriggers)

    Yanmar engine: 7,380 kg (16,270 lbs)
    Kubota engine: 7,170 kg (15,807 lbs)

  • Standards Compliance

    CE/ANSI/CSA/AS/EAC
