0407ET (1530ET)
ELECTRIC POWERED CRAWLER SCISSOR LIFTS
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS
Dimensions
-
Max Working Height
6.5 m/4.9 m (21'3.9''/16'0.91'')
(Indoor/Outdoor) -

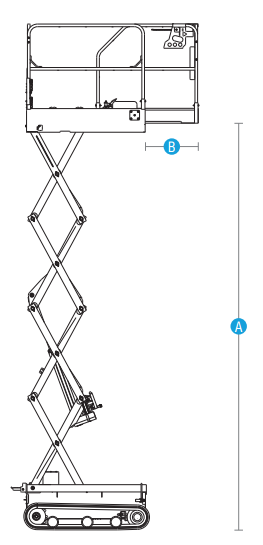

[A] Max Platform Height
4.5 m/2.9 m (14'9.2''/9'6.17'')
(Indoor/Outdoor) -
[B] Max Horizontal Extension
0.6 m (1'11.6'') -
[C] Length-Stowed
(Outriggers/Without Outriggers)1.56 m/1.45 m (5'1.4"/4'9.1")
(Ladder Unfolded/ Folded) -

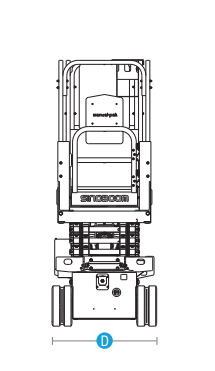

[D] Width-Stowed
0.79 m (2'7.1") -
Height - stowed (Rail Folded)
2 m (6'6.7") (1.1 m platform height) -

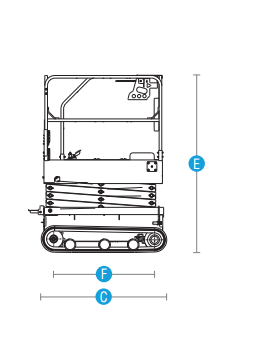

[E] Height - stowed
(Rail Unfolded)1.9 m (6'2.8") (1 m platform height) -
[F] Wheelbase
1.14 m (3'8.9") -
Ground Clearance
-
Platform Dimensions(L×W×H)
1.34 m×0.7 m×1.1 m (4'4.8"×2'3.6"×3'7")
Performance
-
Platform Allowable Occupants
(Indoor)1 person -
Platform Allowable Occupants
(Outdoor)1 person -
Platform Capacity
230 kg (507 lbs) -
Drive Speed-Stowed
0~3 km/h (0~1.86 mph) -
Drive Speed-Raised
-
Elevation Time
(Unloaded)30 s~33 s -
Descent Time
(Unloaded)25 s~30 s -
Gradeability
30% -
Turning Radius
(Inside/Outside) -
Tilt Rating
(Front to Back)3° -
Tilt Rating
(Side to Side, Outrigger Tele-In/Tele-Out)3° -
Max Outrigger Leveling
(Front to Back) -
Max Outrigger Leveling
(Side to Side) -
Tyres-solid
Power
-
Power Source
24 V,120 Ah,20 hr (Lead-acid battery) -
Drive Mode
24 V AC/0.6 kW -
Fuel Tank Capacity - Diesel
-
Hydraulic System Capacity
-
Weight
(Outriggers/Without Outriggers)820 kg (1,808 lbs) -
Standards Compliance
CE
Standard features
- Manual storage box
- Maintenance-free battery
- Weighing system
- Non-marking rubber tracks
- Auto braking system
- Emergency lowering system
- Emergency stop
- Fault diagnosis system
- Tilt protection system
- Warning light
- Forklift pockets and lifting points
- Electrophoretic painting
- Buzzer
Optional features
- RCBO
- Charging transfer wire
- Platform work light
- Foot switch
- Overhead anti-collision device
- AC power device on platform
- GPS
- Single-point lifting
