HOME>PRODUCTS>SCISSOR LIFT>0610ET (2239ET)

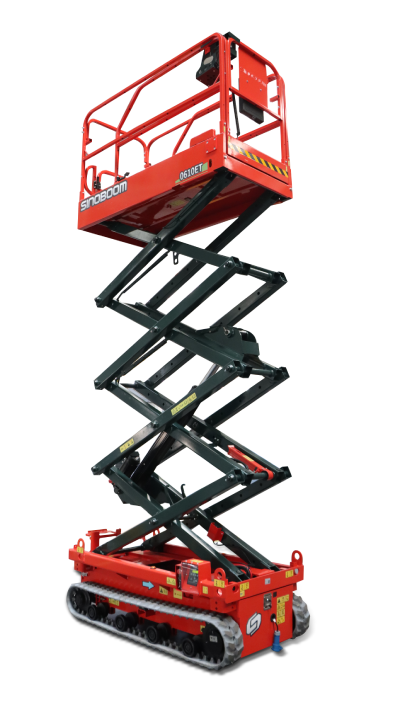

0610ET (2239ET)

ELECTRIC POWERED CRAWLER SCISSOR LIFTS
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

  • Max Working Height

    8.8 m/7 m (28'10.5''/22'11.6'')

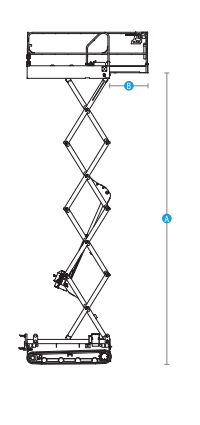

  • [A] Max Platform Height

    6.8 m/5 m (22'3.7''/16'4.9'')

  • [B] Max Horizontal Extension

    0.9 m (2'11.4'')

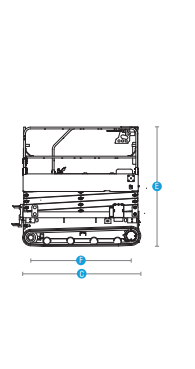

  • [C] Length-Stowed
    (Outriggers/Without Outriggers)

    2.49 m (8'2") (With Outriggers)
    2.07 m/2.18 m (6'9.5"/7'1.8") (Without Outriggers Ladder Folded/Unfolded)

  • [D] Width-Stowed

    1.13 m/0.99 m (3'8.5"/3'2.9") (With/Without Outriggers)

  • Height - stowed (Rail Folded)

    2.20 m (7'2.6") (1.10 m platform height)
    2.04 m (6'8.3")(0.94 m platform height)

  • [E] Height - stowed
    (Rail Unfolded)

  • [F] Wheelbase

    1.69 m (5'6.5")

  • Ground Clearance

  • Platform Dimensions(L×W×H)

    1.95 m×0.9 m×1.26 m (6'4.8"×2'11.4"×4'1.6") (1.10 m platform height)
    1.95 m×0.9 m×1.09 m (6'4.8"×2'11.4"×3'6.9") (0.94 m platform height)
Performance

  • Platform Allowable Occupants
    (Indoor)

    2 persons

  • Platform Allowable Occupants
    (Outdoor)

    1 person

  • Platform Capacity

    250 kg (551 lbs)

  • Drive Speed-Stowed

    0～3 km/h (0～1.86 mph)

  • Drive Speed-Raised

  • Elevation Time
    (Unloaded)

    30 s~33 s

  • Descent Time
    (Unloaded)

    25 s~30 s

  • Gradeability

    30%

  • Turning Radius
    (Inside/Outside)

  • Tilt Rating
    (Front to Back)

    3°

  • Tilt Rating
    (Side to Side, Outrigger Tele-In/Tele-Out)

    2°

  • Max Outrigger Leveling
    (Front to Back)

  • Max Outrigger Leveling
    (Side to Side)

  • Tyres-solid

Power

  • Power Source

    24 V,220 Ah,20 hr (Lead-acid battery)

  • Drive Mode

  • Fuel Tank Capacity - Diesel

  • Hydraulic System Capacity



  • Weight
    (Outriggers/Without Outriggers)

    1700 kg/1500 kg (3,748 lbs/3,307 lbs)

  • Standards Compliance

    GB/CE /AS
Download Brochures
Standard features
  • Manual storage box
  • Maintenance-free battery
  • Weighing system
  • Non-marking rubber tracks
  • Auto braking system
  • Emergency lowering system
  • Emergency stop
  • Fault diagnosis system
  • Tilt protection system
  • Flashing beacon
  • Forklift pockets and lifting points
  • Electrophoretic painting
  • Buzzer
Optional features
  • RCBO
  • Charging transfer wire
  • Platform work light
  • Foot switch
  • Overhead anti-collision device
  • AC power to the platform
  • Tracks system (GPS)
  • Single-point lifting
  • Hydraulic outriggers
