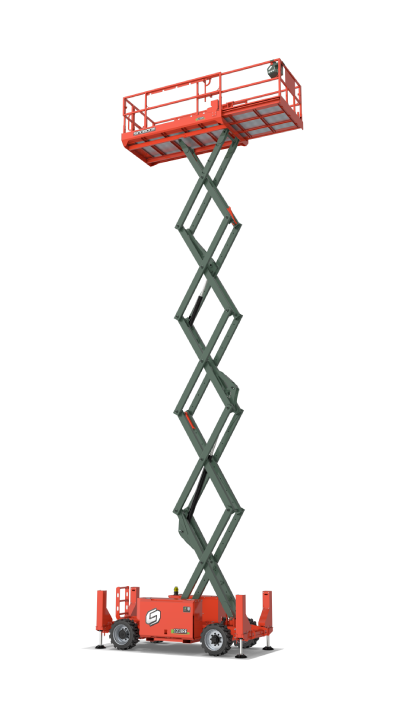

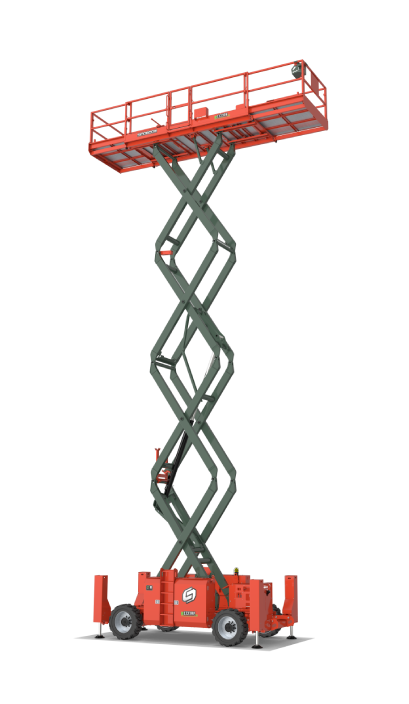

1218RE (4069RE)

HOME>PRODUCTS>SCISSOR LIFT>1218RE (4069RE)

Rough Terrain Scissor Lifts

Working Height

14.2m

Platform Capacity

365kg

Gradeability

35%

Get a Quote

Download Brochures

SPECIFICATIONS
Standard/Optional
APPLICATIONS

Dimensions

Max Working Height

14.2m (46'7.1")
[A] Max Platform Height

12.2m (40'0.3'')
[B] Max Horizontal Extension

1.5m (4'11")
[C] Length-Stowed
(Outriggers/Without Outriggers)

3.8m/3.19m (12'5.6"/10'5.6")
[D] Width-Stowed

1.77m (5'9.7")
Height - stowed (Rail Folded)

2.11m (6'11.1")
[E] Height - stowed
(Rail Unfolded)

2.75m (9'0.3'')
[F] Wheelbase

2.28m (7'5.8'')
Ground Clearance

0.22m (8.66'')
Platform Dimensions(L×W×H)

2.8m×1.6m×1.1m (9'2"×5'3"×3'7")

Performance

Platform Allowable Occupants
(Indoor)

3 Persons
Platform Allowable Occupants
(Outdoor)

2 Persons
Platform Capacity

365kg (805lbs)
Drive Speed-Stowed

6km/h (3.7mph)
Drive Speed-Raised

0.48km/h (0.3mph)
Elevation Time
(Unloaded)

55s~65s
Descent Time
(Unloaded)

50s~60s
Gradeability

35%
Turning Radius
(Inside/Outside)

2.11m/4.6m (6'11"/15'1")
Tilt Rating
(Front to Back)

3°
Tilt Rating
(Side to Side, Outrigger Tele-In/Tele-Out)

2°/0.8°
Max Outrigger Leveling
(Front to Back)

5.3° (front)/4.2° (back)
Max Outrigger Leveling
(Side to Side)

11.7°
Tyres-solid

26x12-16.5 Solid foam-filled

Power

Power Source

48V, 390Ah
Drive Mode

48VDC
Fuel Tank Capacity - Diesel

-
Hydraulic System Capacity

72L (15.8 gal(UK)/ 19 gal(US))

Weight
(Outriggers/Without Outriggers)

-
Standards Compliance

5,580 kg(12,302 lbs) / 5,110 kg(11,266 lbs)

Download Brochures

Standard features

2WDx2WS
Fault diagnosis system
Maintenance-free battery
Oscillating system
Tilt protection system
Raised traveling
Auto braking system
Emergency stop buttons
Overload sensing system
Solid tyres
Emergency lowering system

Optional features

AC power cable to platform
Telematics
Hydraulic generator
Non-marking tyres
Platform work light
Overhead anti-collision device
